MFP-1 Series NTC Thermistor temperature sensor Designed with Fast Response for flat surface .
Brand:
FocusensItem NO.:
MFP-1Order(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
NTC 10K 3435/ 10K 3977 as standard various R and B value available on requestWorking Temperature:
-30-125°CThermal Time:
Water (0.4m/s) T0.63 ≤ 30sHi-Pot:
Strengthened Hi-Pot 2500V 1mA 1min

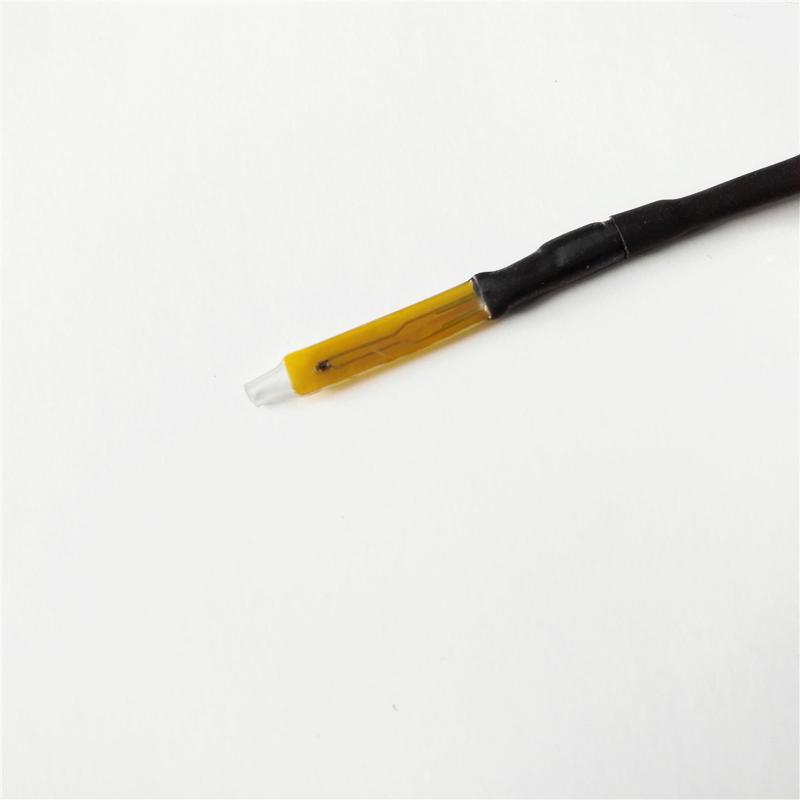

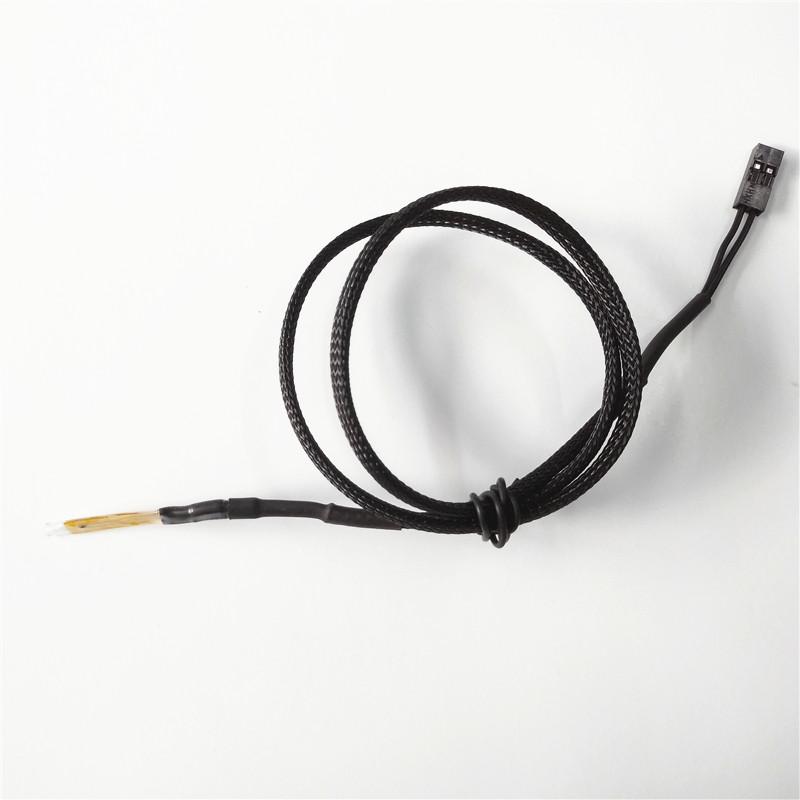

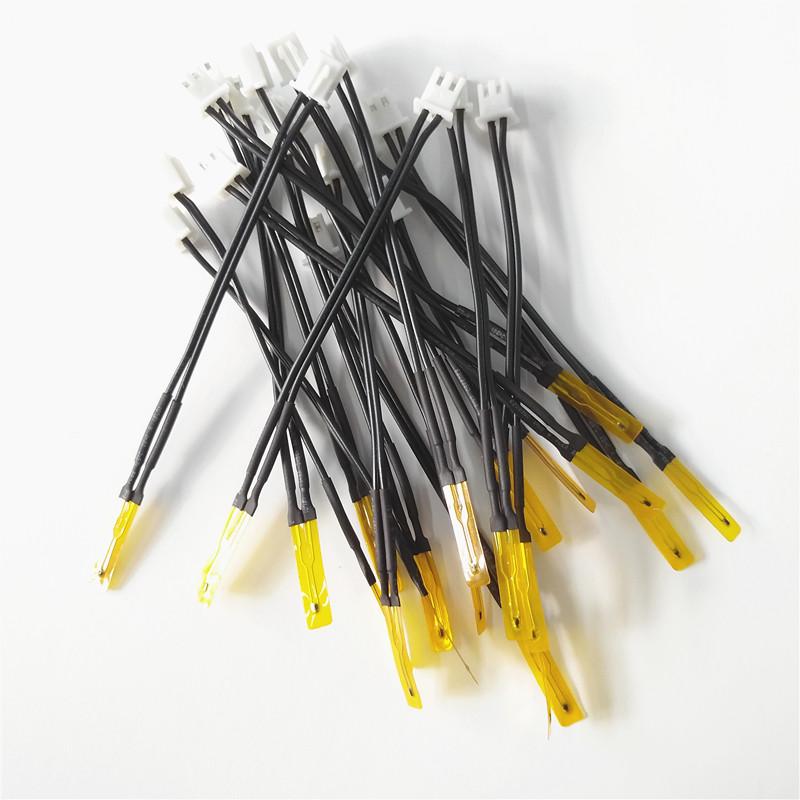

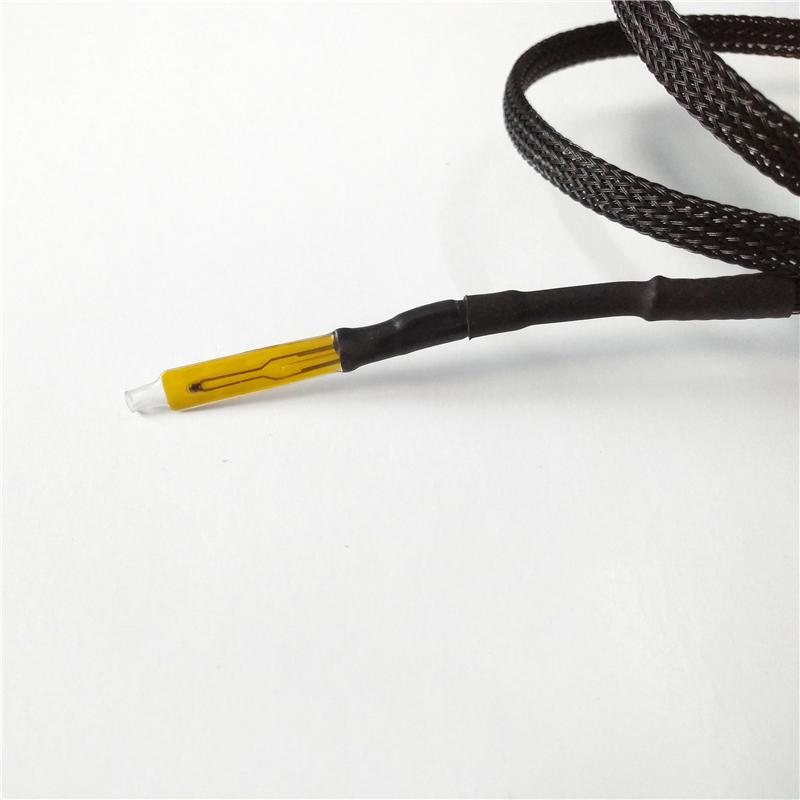

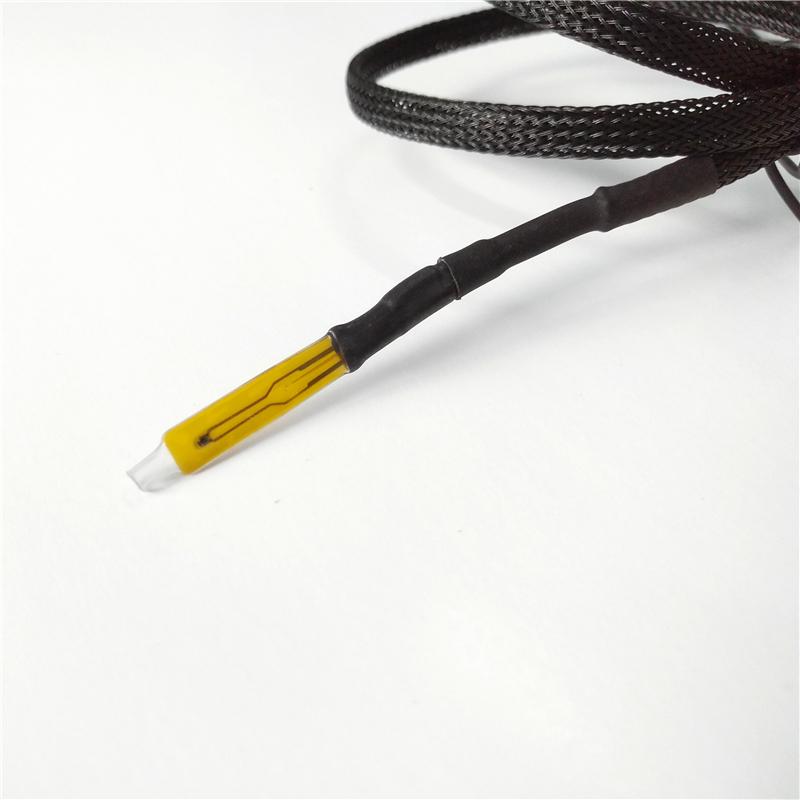

Thin Film NTC Temperature Sensor for Flat Surfact MFP-1 Series
MFP-1 series temperature sensor using thin film NTC thermistor as sensing element, the thin and flat size makes it response to heat promptly and especially suitable for mornitor and measure temperature of flat and tight subject. Size and accessories can be adopted according to the different temperature environment or application.
Key Parameters:
|
Sensing Component |
NTC 10K 3435/ 10K 3977 as standard various R and B value available on request |
Probe Material |
Thin Film |
|
Working Temperature |
-30-125°C |
Cable Material |
PVC/Teflon wire |
|
Thermal Time |
Water (0.4m/s) T0.63 ≤ 30s |
Sizes |
On request |
|
Dissipation factor |
≥2.5 mW/°C |
Connector |
On request |
|
Long-term stability |
Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
|
|
|
Hi-Pot |
2500V 1mA 1minute |
|
|
|
Insulation Resistance |
DC500V min.100Mohm |
|
|
Typical Applications
Heating Blanket / Mat / Pad
Heating system
Cooling system

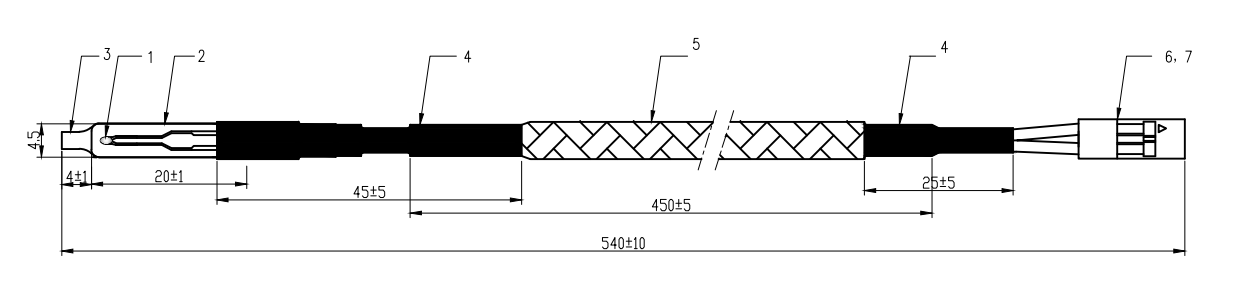

Typical Sizes:
Ordering Code:
Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
