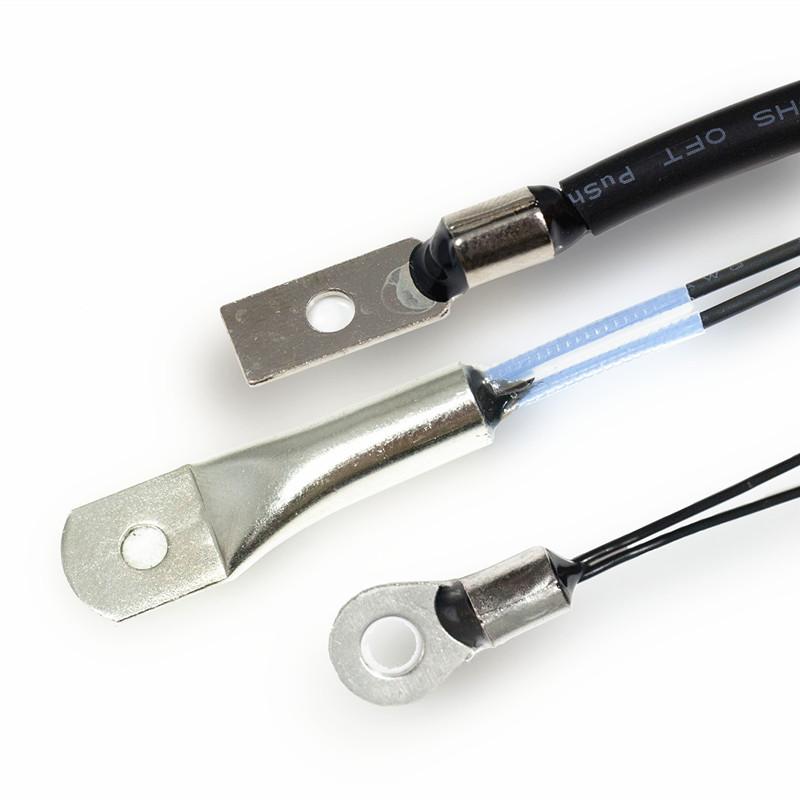

Surface Temperature Sensor with Flat Shap Ring Lug MFP-2 Series

MFP-2 series temperature sensor using the NTC thermistor element. It is surface mounting type sensor fixed to devices with mounting screw of different required size. Products can be custom according to different temperature environment or application.


  • Brand:

    Focusens
  • Item NO.:

    MFP-2
  • Order(MOQ):

    3000
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    NTC Thermistor various R and B value on request
  • Working Temperature:

    -30-150’C
  • Thermal Time:

    Water (0.4m/s) T0.63 ≤ 30s
  • Hi-Pot:

    1500V 1mA 1minute
  • Product Detail

Surface Temperature Sensor with Flat Shap Ring Lug MFP-2 Series


MFP-2 series temperature sensor using the NTC thermistor element. It is surface mounting type sensor fixed to devices with mounting screw of different required size. Products can be custom according to different temperature environment or application. With our mature craft, it can be made with a variety of secifications,customers can usedirectly without labricating.


Key Parameters:

Sensing Component

NTC Thermistor various R and B value on request

Probe Material

Cu/Sn

Working Temperature

-30-150’C

Cable Material

PVC/Teflon  wire

Thermal Time

Water (0.4m/s) T0.63 ≤ 30s

Sizes

On request

Dissipation factor

2.5 mW/°C

Connector

On request

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Hi-Pot

1500V 1mA 1minute

Insulation Resistance

DC500V min.100Mohm


Typical Applications

Refrigerator

HVAC

Projector

Motor

Lithium Battery Protect

Heat sink

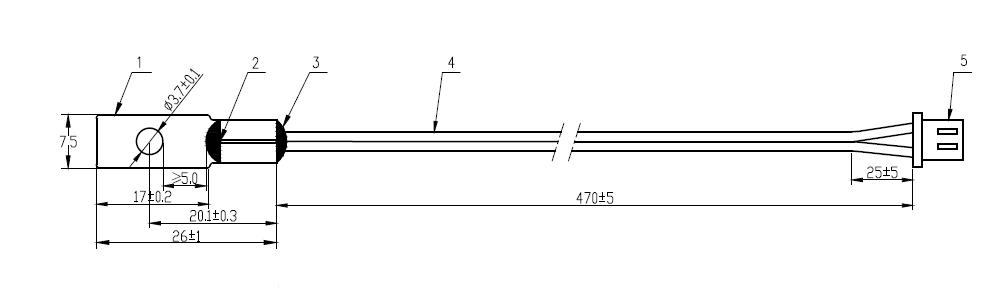

Typical Sizes:



Ordering Code:

Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
