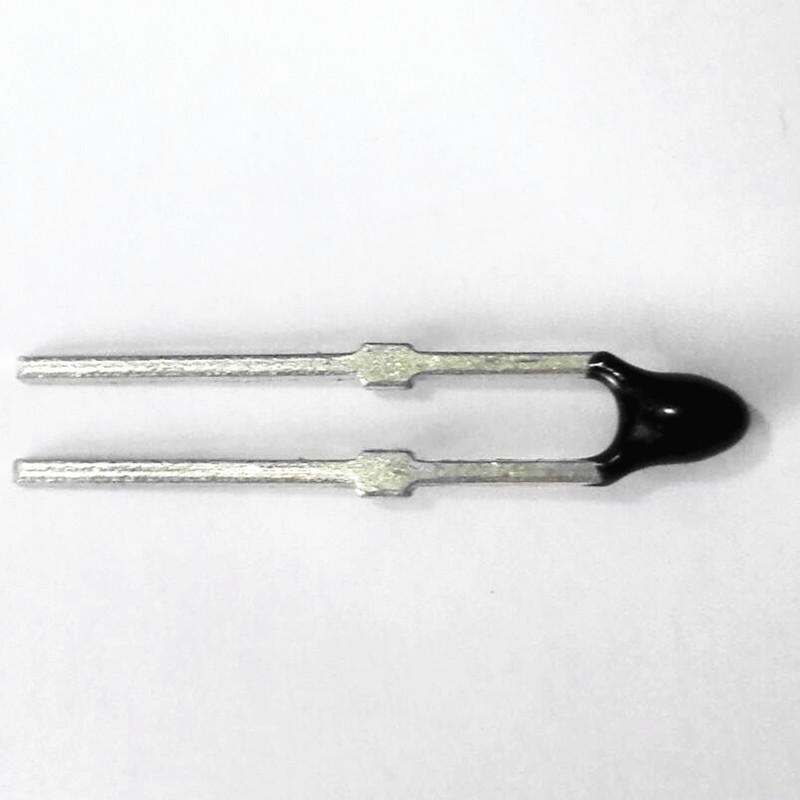

MF52 Epoxy NTC Thermistor with Frame Lead wire

MF52 High Temperature 200'C Epoxy NTC Thermistor made with new craft and materials, new technology of production of small type epoxy resin coating of NTC thermistor, has the advantages of high precision and fast response.


  • Brand:

    Focusens
  • Item NO.:

    MF52
  • Product Origin:

    Hefei Anhui China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    1-2 weeks
  • Sensing Component:

    NTC
  • Working Temperature:

    -80-200C
  • Thermal Time:

    5s
  • Product Detail


MF52 Epoxy NTC Thermistor with Frame Lead wire



Typical Applications

Features

l   Air conditioning equipment

l   Heating equipment

l   Medical equipment

l   Temperature control instruments

l   Electronic gifts

l   Electronic temperature and humidity meter

l   Auto temperature measurement

l   Electronic calendar

l   Rechargeable batteries and charger

l   Tin plating steel wire radial type epoxy resin encapsulation

l   Wide range of resistance

l   High precision

l   Small size and fast response

l   High stability





Technical Data

Item

Temperature

Temperature range

-80°C to +200°C

Response time

Water (0.4m/s) T0.63 ≤ 7s

Dissipation factor

≥ 2mW/°C

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Dielectric Strength

1500VAC

Insulation Resistance

≥200MΩ 500VDC

Dimensions:


Electrical characteristics


Notes:

1.       The 1st □ fills with code of dimension.

2.       The 2nd □ fills with rated resistance.

3.       The 3rd □ fills with its precision symbol.

4.       B value (25/50°C) tolerance: ±1%.

5.       Default resistance tolerance:  ±1%.

6.       We will be able to supply products according to client’s demands.
