Focusens Film Insulation temperature sensor are specifically designed for high temperature flat surface temperature sensing. The craft and materials enable it workable for high temperature upto 500’C.
With flexible design and custom in house capability , we have full ranges of oven temperature meeting different electrical and mounting requirements.
Brand:
FocusensItem NO.:
MZP-4Order(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
PT100 /PT500 /PT1000/Thermocouple K type / T typeWorking Temperature:
-50- 300’C/ -50-500’C MaxThermal Time:
10 seconds around (in water)Hi-Pot:
1250V 1mA 1minute

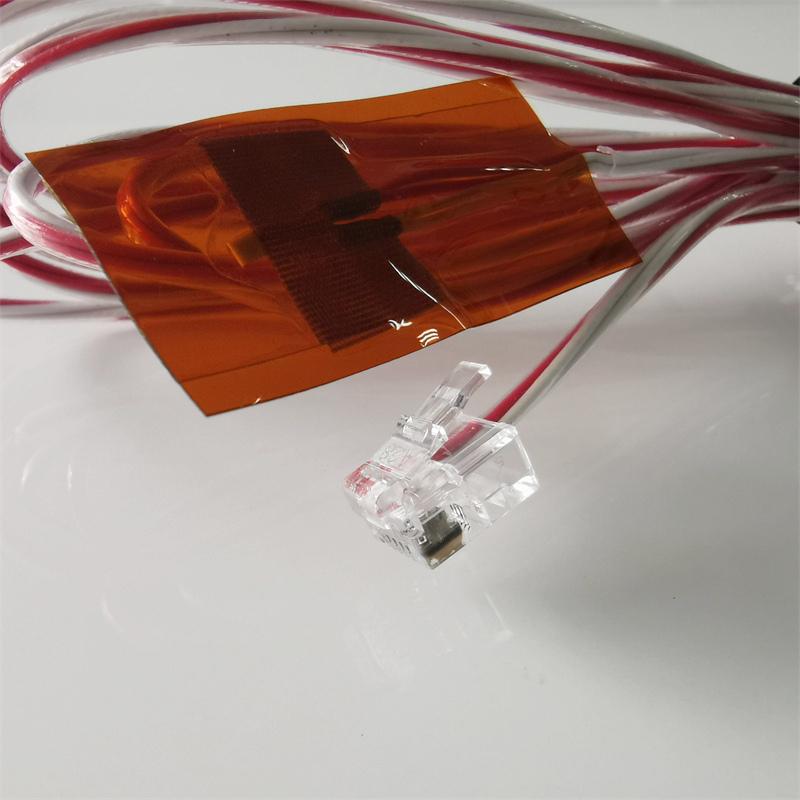

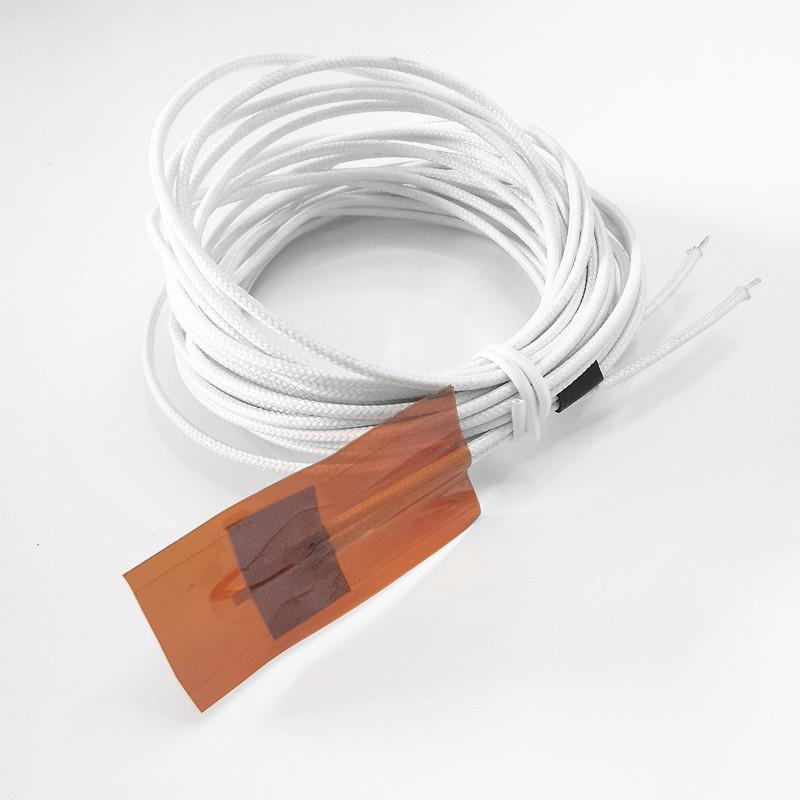

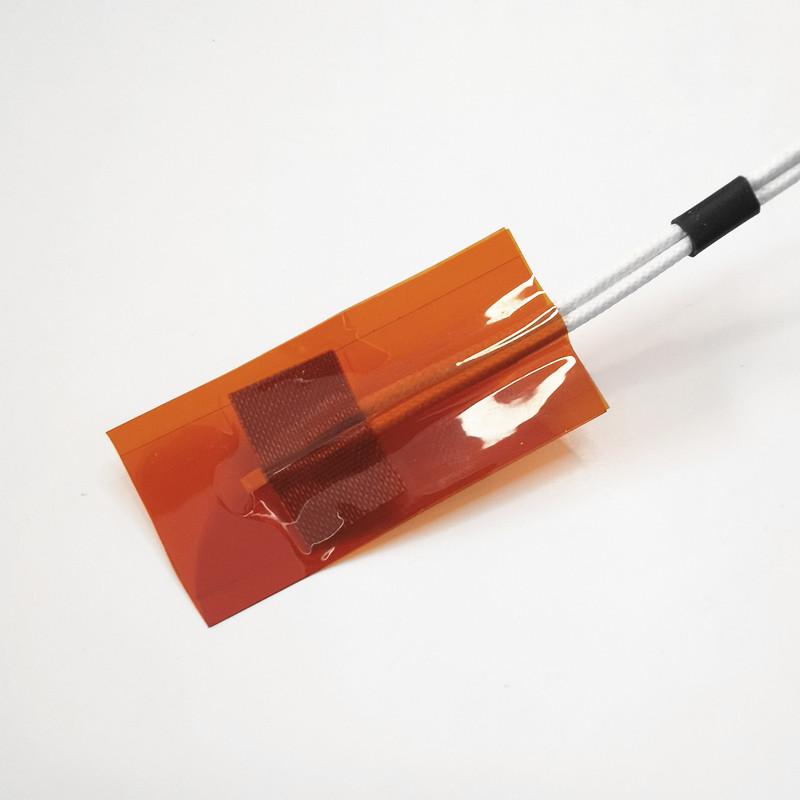

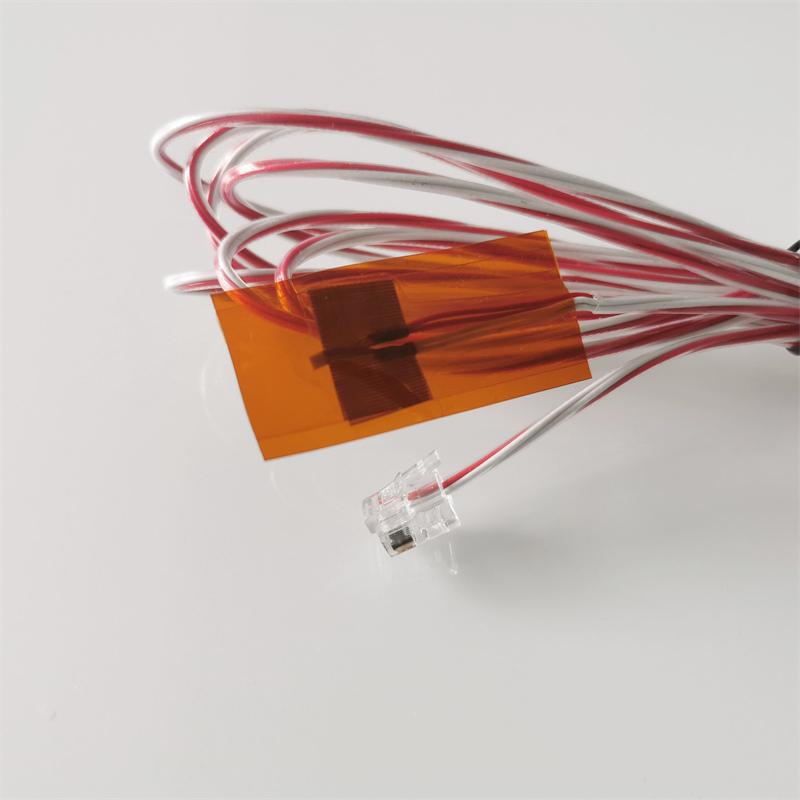

Film Insulation PT RTD Temperature Sensor for Warming Blanket
Under some working condition the sensor need to measure high temperature for a very tight and flat surface. The film insulated PT sensor is an ideal temperature sensor solution under such condition. Typical application warming system for tanks , blankets , flooring etc.
Key Parameters
|
Probe Material |
Food grade SUS304 / SUS316 | Wire Layout | 2 wires/ 3 wires |
|
Hi-Pot |
Min.1250V 1mA 1 minute Higher Voltage available on request |
Cable Material |
Teflon/ Fiber Glass |
|
Insulation Resistance |
DC500V min.100Mohm |
Protection Tube |
Fiber Glass |
|
Precision of class A |
±(0.15+0.002ItI) |
Sizes |
On request |
|
Precision of class B |
±(0.3+0.005ItI) |
Connector |
On request |
Typical Applications
Advantages

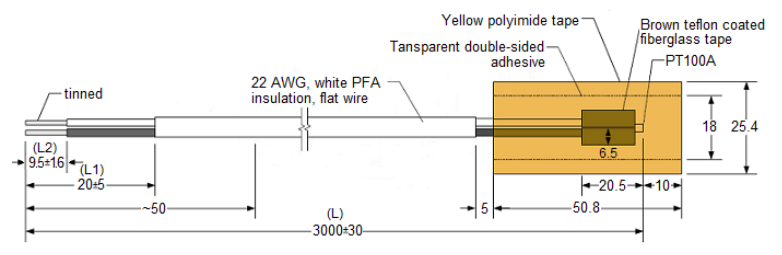

Typical Sizes
Standard RT and Tolerance
Welcome contact us for more details or for your sensing solutions
