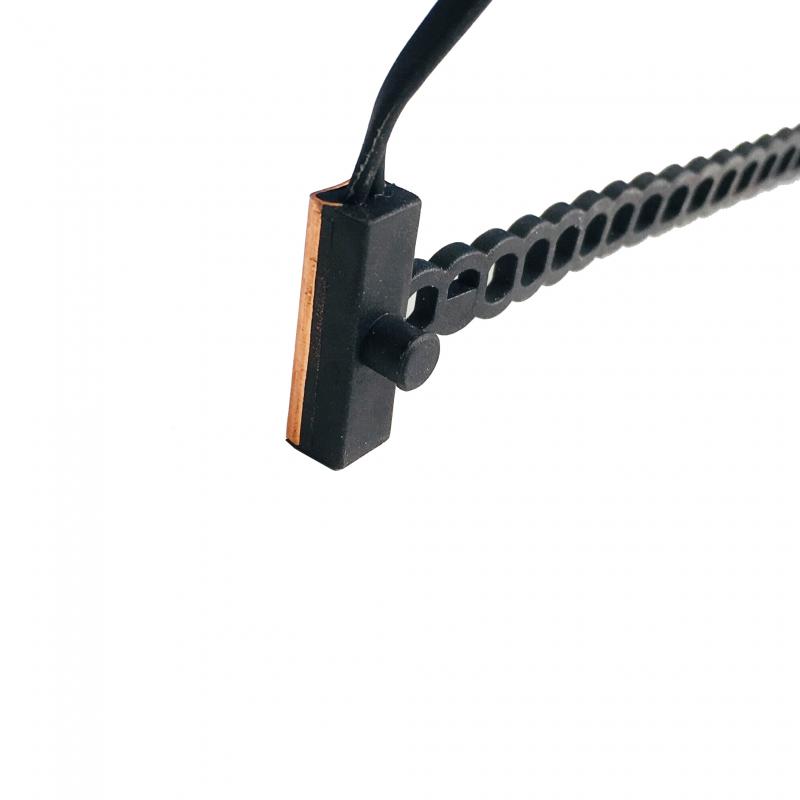

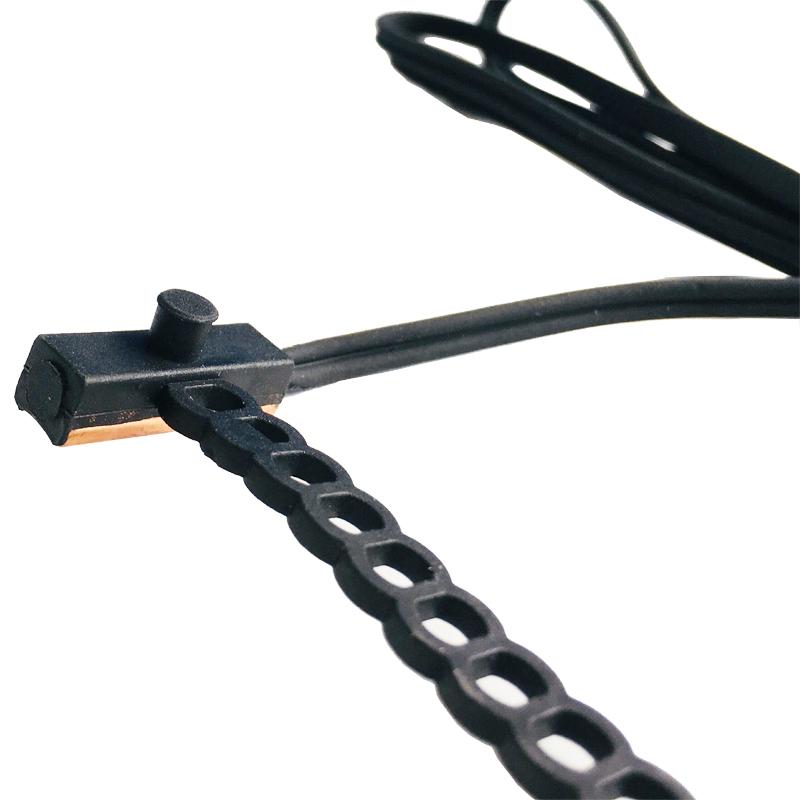

MFE-1 Series water pipe clamp Temperature Sensor with Extension Chain

MFE-1 series temperature sensor using NTC thermistor as temperature sensing element. Products can be custom according to different temperature environment or application.


With our mature craft, it can be made with a variety of specifications, customers can use directly without fabricating.

  • Item NO.:

    MFE-1
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    NTC Thermistor 10K B25/85:3435 as standard, others on request
  • Working Temperature:

    -40°C to +105°C
  • Thermal Time:

    Water (0.4m/s) T0.63 ≤ 30s
  • Hi-Pot:

    1500V
  • Product Detail

Typical Applications

Features

 Ice maker machine

 Refrigerator

 Heat Pump

 Water heater

 Floor heating System

 General Application etc.

 Plastic housings PBT ABS Nylon or SUS,Cu for food grade

 Waterproof for high Humidity Environment

 Suitable for low temperature working




Technical Data

Item

Parameter

 Sensing Element

 NTC Thermistor various R and B value on request

 Temperature range

 -40°C to +105°C

 Response time

 Water (0.4m/s) T0.63 ≤ 30s

 Dissipation Factor

 ≥ 2.5mW/°C

 Long-term stability

 Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

 Dielectric Strength

 1500VAC

 Insulation Resistance

 ≥100MΩ 500VDC


Application :

HVAC/R

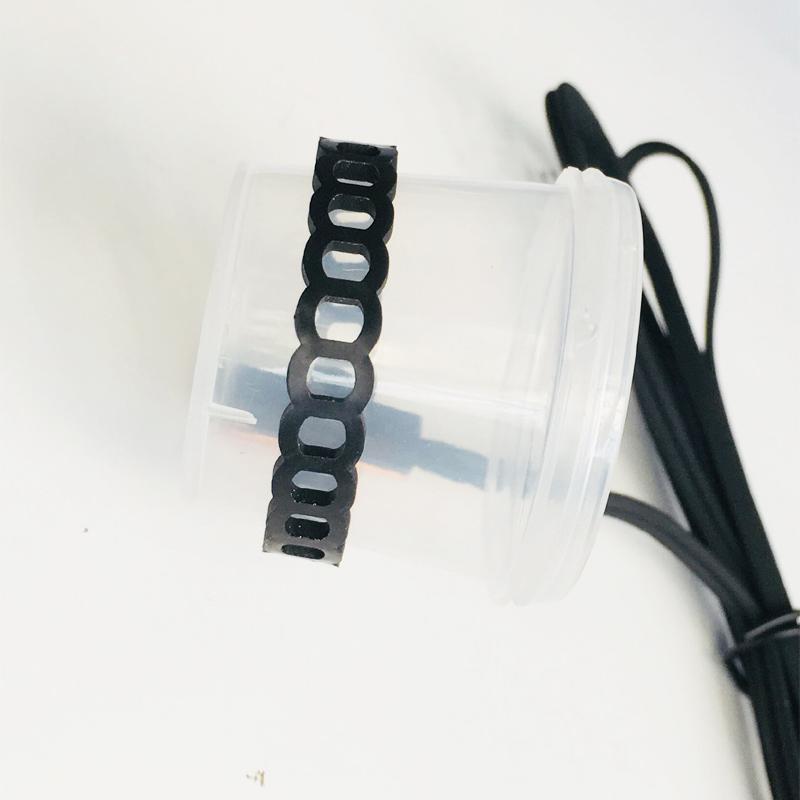

1/2" Pipe Mount, Extra chain can be tied for bigger diameter pipe


Typical Probe Size :
