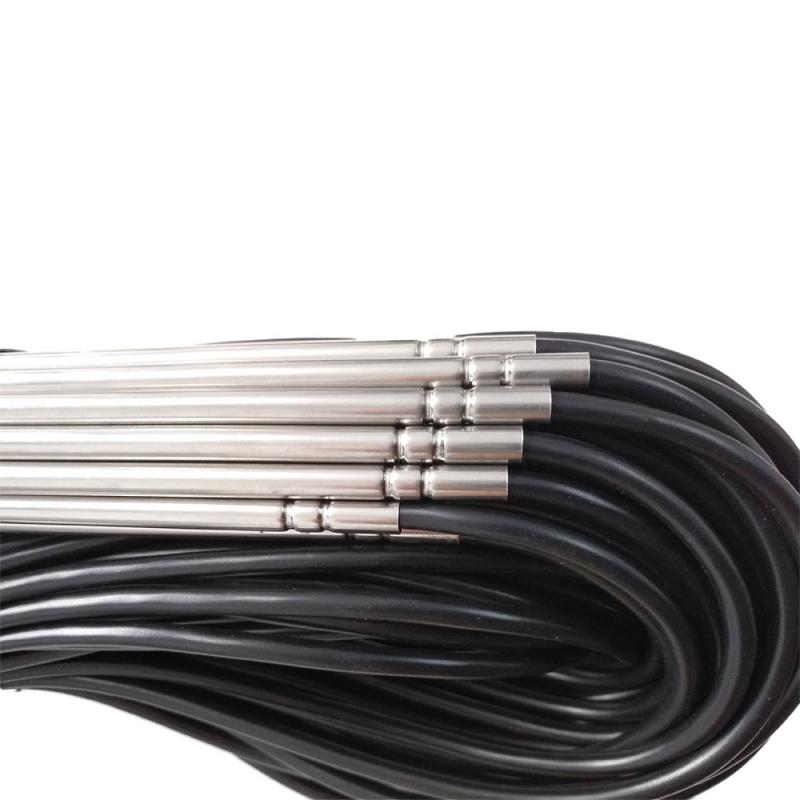

MFT Series temperature sensor made with tubular SUS304 SUS316 house and have round jacket cable. Two rolling grooves was made to help the contact between house and cable water tight enough, varisous probe size and different working temperature range available on request.
Brand:
FocusensItem NO.:
MFTOrder(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
Platinum Resistance, Pt100 or Pt1000 OhmsWorking Temperature:
-50~200°C, -50~350°C, -50~600°CThermal Time:
10S (0.63τ)Hi-Pot:
1250V 1mA 1minute

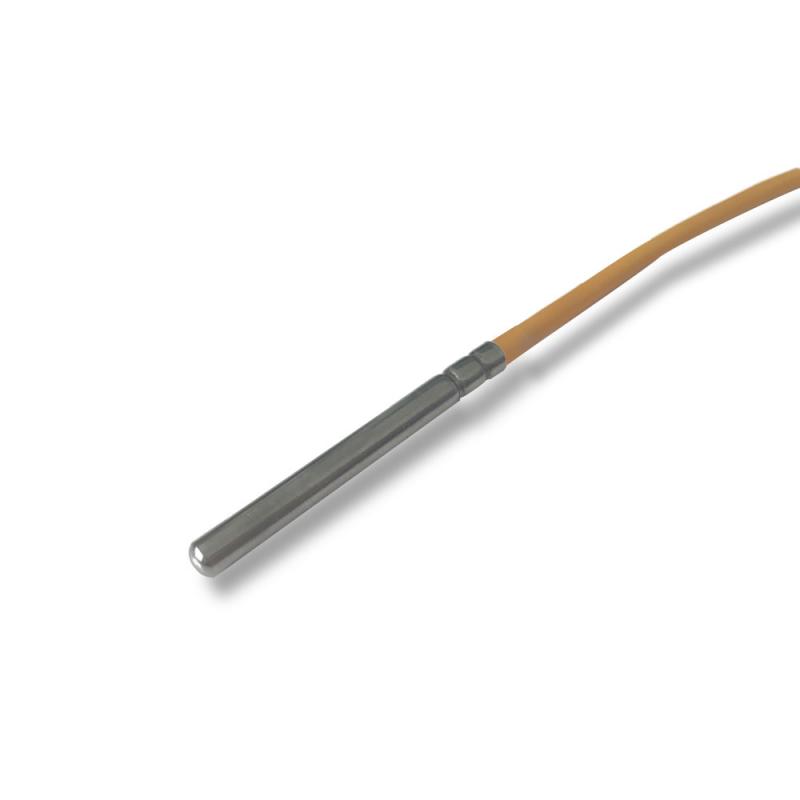

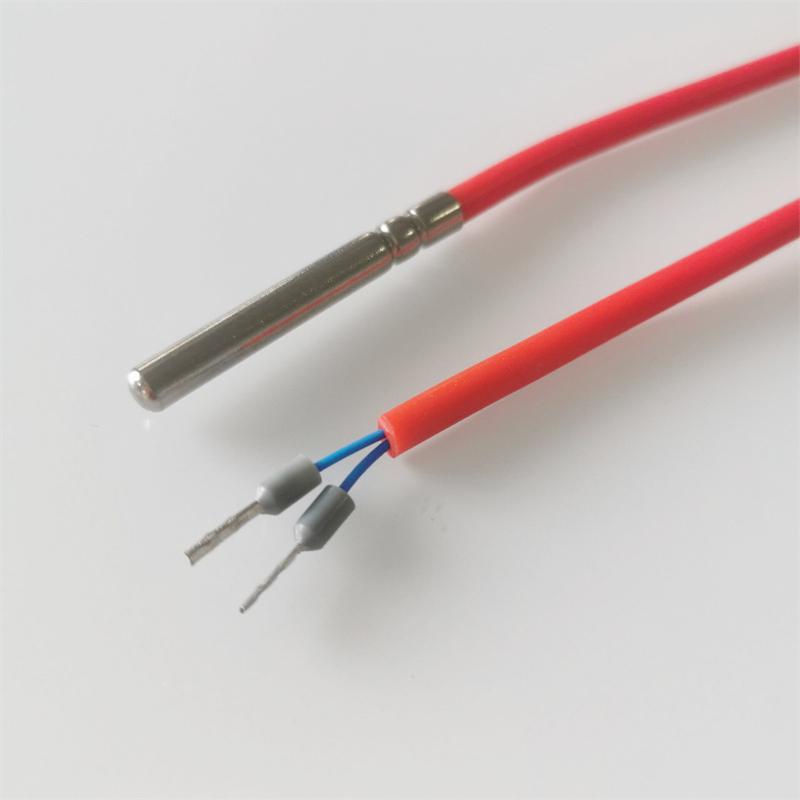

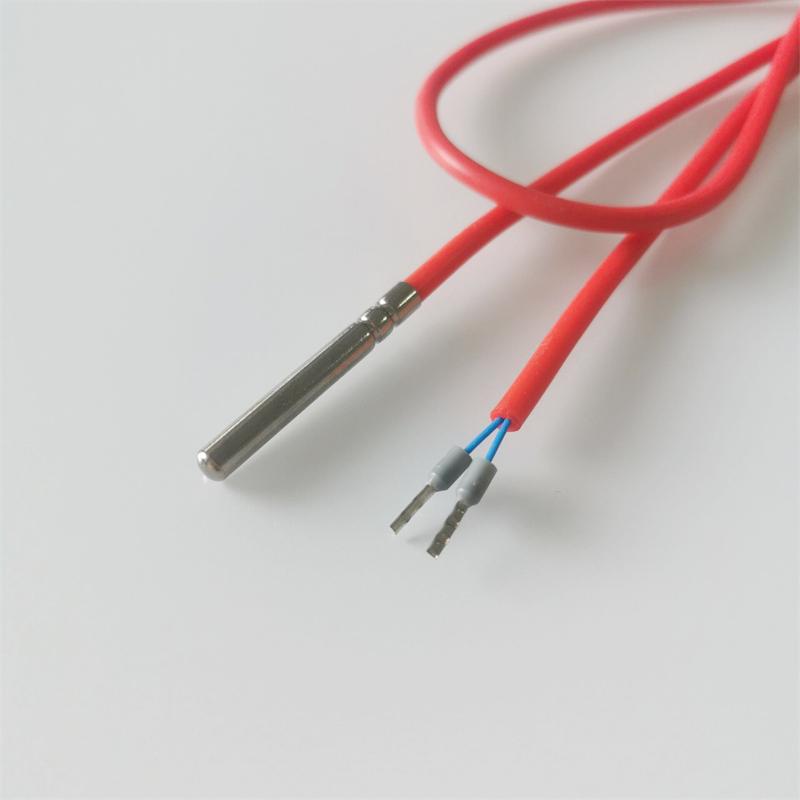

High Temperature RTD Pt1000 Probe Temperature Sensor
Pt1000 sensors are suitable for use in applications with 2 wire circuit configurations.
Since the Pt1000 sensor has much greater resistance, the distorting effect of the resistance in the lead wires is less significant overall because it makes up a smaller percentage of the total resistance in the circuit.
Key Parameters
|
Sensor type |
Platinum Resistance, Pt100 or Pt1000 Ohms |
Housing | SUS304 or SUS316 |
|
Ice point resistance |
100Ω or 1000Ω Ohms
|
Cable material |
PVC, Teflon, Silicone, Fiberglass |
|
Fundamental interval (0°C to 100°C) |
38.5Ω nominal (100Ω)
385Ω nominal (1000Ω)
|
Response time |
10S (0.63τ) |
|
Measuring range |
-50~200°C, -50~350°C, -50~600°C |
Insulation Resistance |
100Mohm |
|
Tolerance class |
DIN Class A or B |
European / British Standard |
Conforms to IEC 60751:2008 / BS EN 60751:2008 |
Features
Typical Applications
Advantages

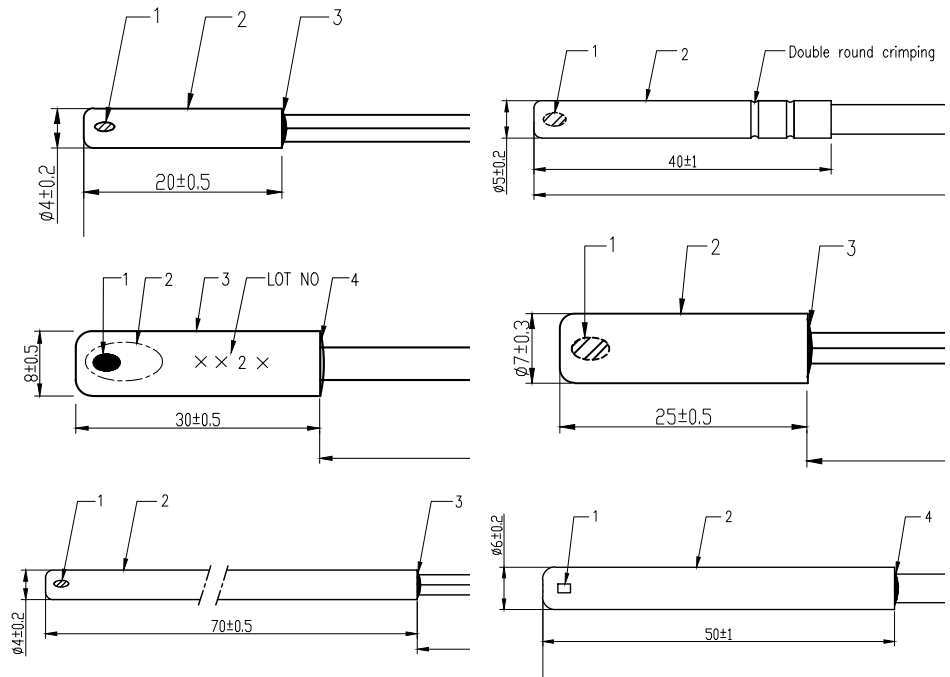

Typical Sizes

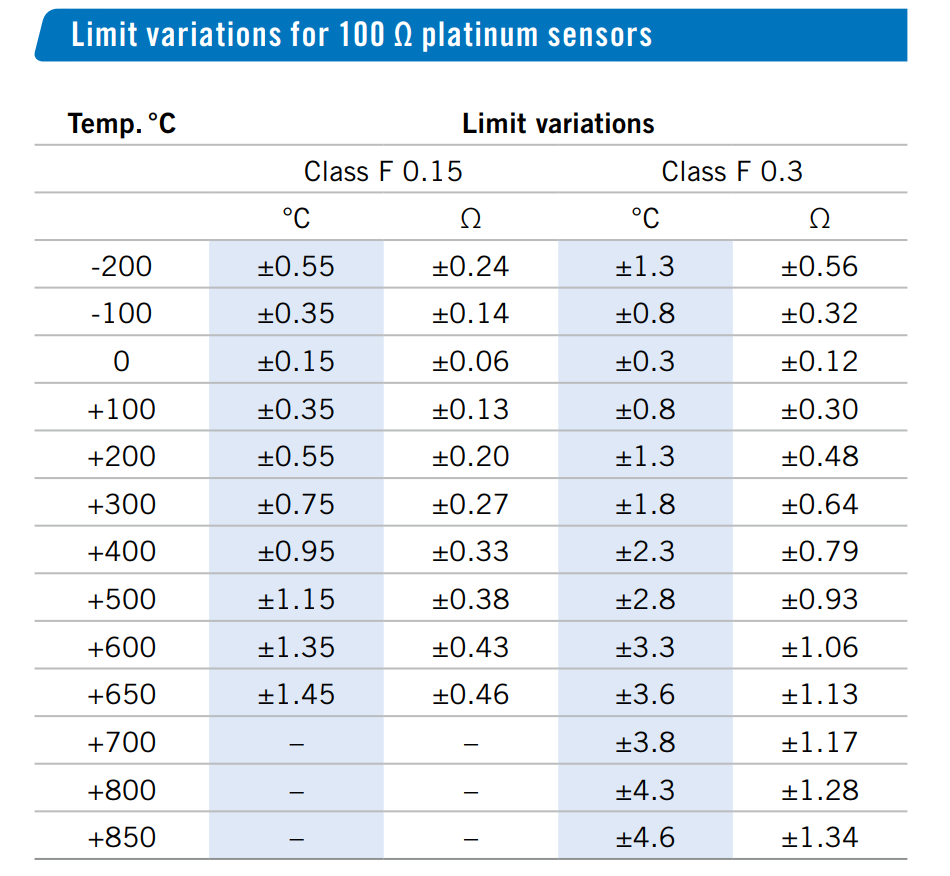

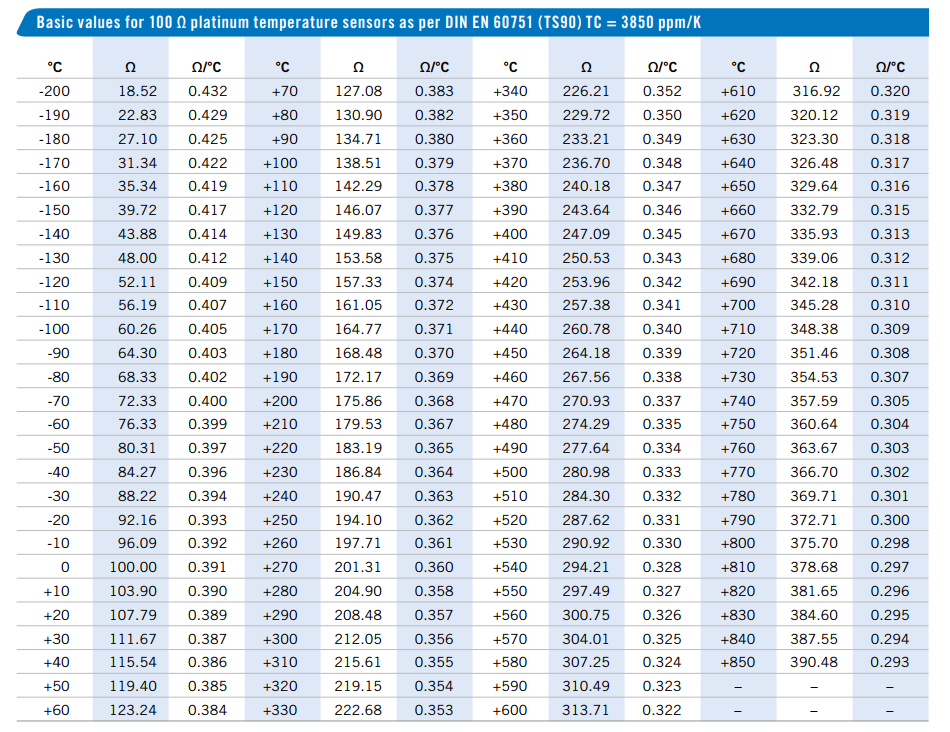

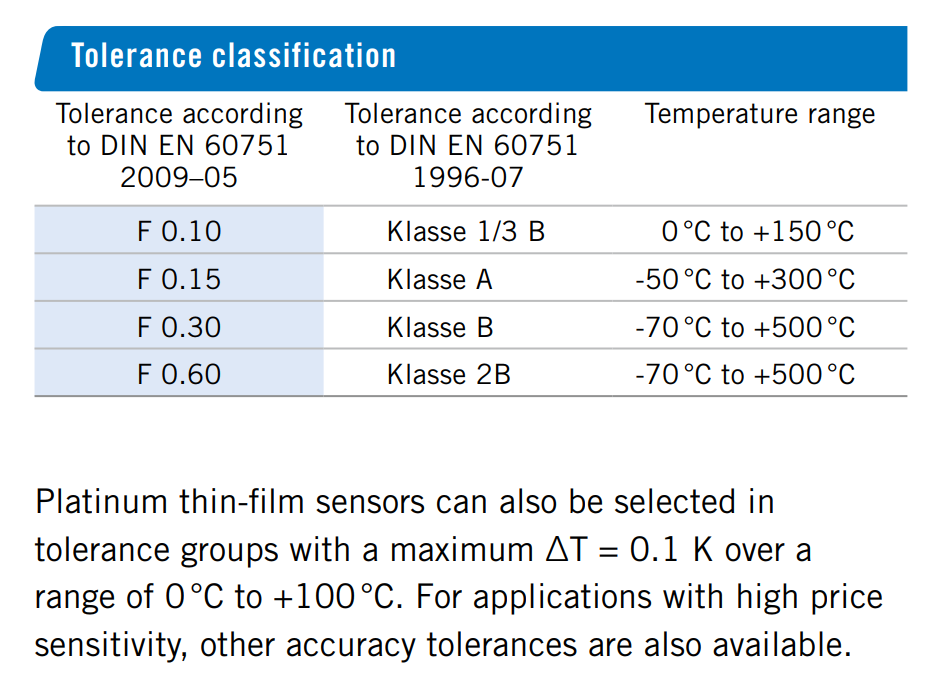

Standard RT and Tolerance
