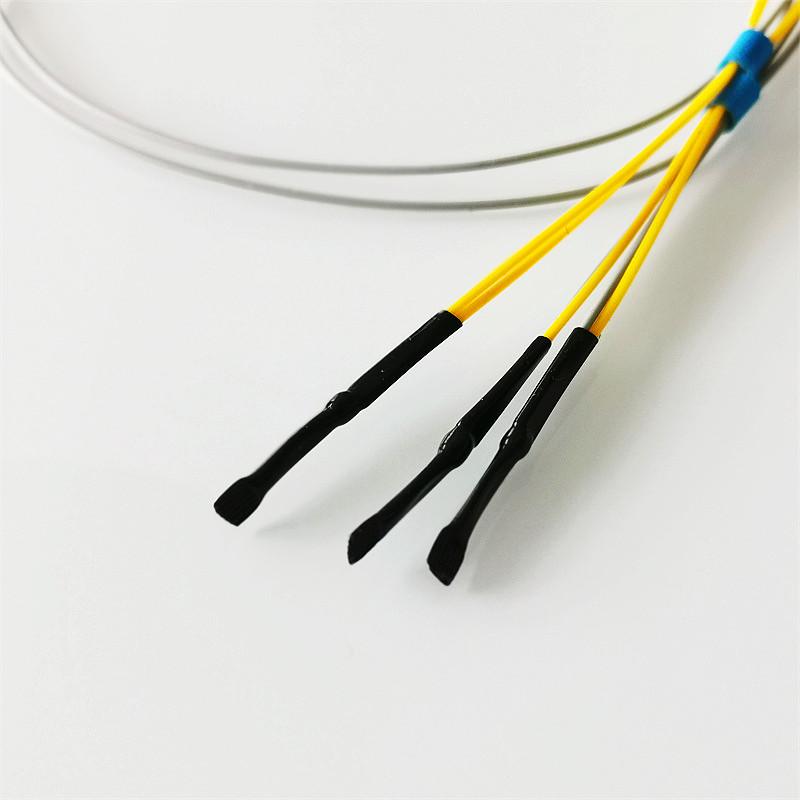

MZ6 Triple PTC Thermistor for Moter Protection with range +60-180'C

The MZ6 Series PTC Thermistor are used to monitor and protect motor from over temperature.  Temperature range is from 60 to 180°C.

PTC thermistor beads with different rated response temperatures can be connected in series as duel, triple or Sextuple .

  • Brand:

    Focusens
  • Item NO.:

    PTC Thermistor MZ6
  • Order(MOQ):

    1000pcs
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    2 weeks
  • Sensing Component:

    PTC Thermistor
  • Working Temperature:

    60-180'C
  • Thermal Time:

    10s
  • Hi-Pot:

    2500V AC
  • Product Detail

MZ6 PTC Thermistor for Motor Winding


The MZ6 Series PTC Thermistor are used to monitor and protect motor from over temperature.  Temperature range is from 60 to 180°C.

PTC thermistor beads with different rated response temperatures can be connected in series as duel, triple or Sextuple .


Key Parameters:


Item

Single

Triplep

Unite

Max.Working Voltage(DC)

25

25

V

Rated Control Temperature Tk

To Customer equirement

To Customer Requirement

°C

Rated Control Temperature

TollerenceΔT1

±5

±5

°C

Reproducibility of TKΔT2

±0.5

±0.5

°C

Resistance value at 25°C

≤100

≤300

Ω

Resistance value at TK-5°C

≤550

≤1600

Ω

Resistance value at TK+5°C

≥1330

≥4000

Ω

Resistance value at TK+15°C

≥4

≥12

kΩ

Thermal response Time  Ta

≤5

≤5

s

Strength of Electrical Insulation Uis

AC2.5

AC2.5

kV

Max. Controlled Temperature

180

180

°C

Max. Storage Temperature

180

180

°C

Min Storage Temperature

-40

-40

°C


Typical Applications

Motor protect

Power Device


Advantages:

Meeting standard DIN 44081/DIN44082


     Short response time and easy installation

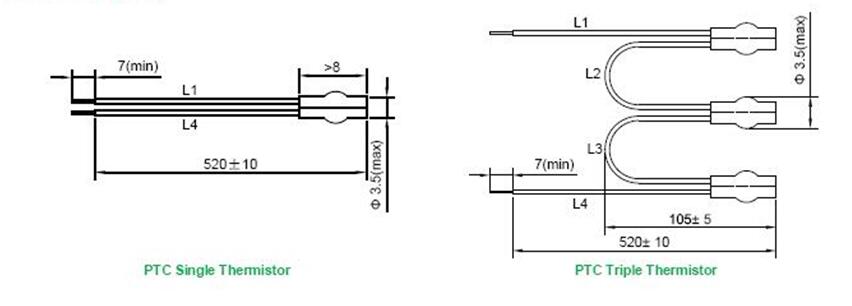

Typical Sizes:

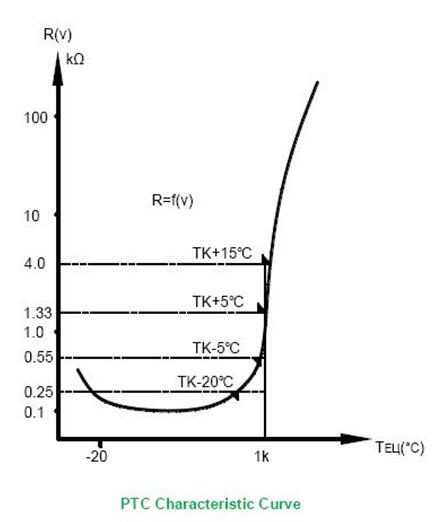

RT Curve for single bead( multiple the resistance accordingly for mutiple beads in series):

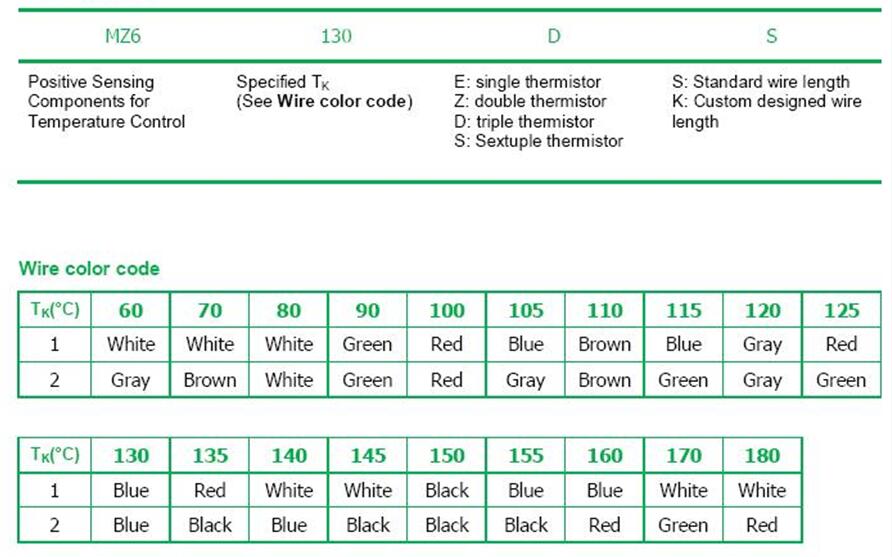

Ordering Code:



Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
