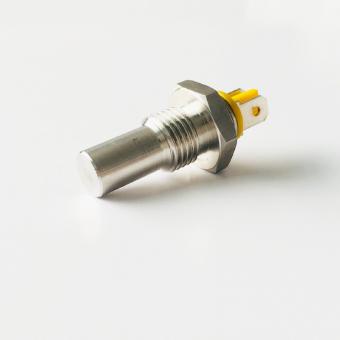

Threaded Mounting NTC Thermistor Temperature Sensor for Coffee Machine with SUS316 House

The MFL Series NTC Thermistor temperature sensor is made with FDA food grade Stainless steel SUS304 . It is easily installed onto coffee machine circuit with two 6.3mm plug.

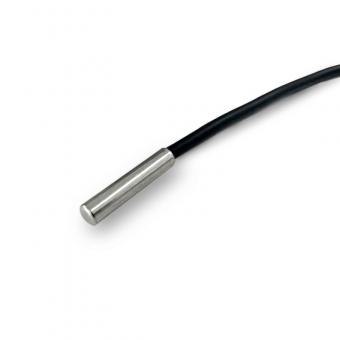

MF5A-5 Series miniture NTC thermistor is made with epoxy resin coating ,and insulation lead wire like PVC wire, teflon or Kynar wire. It has advantages of miniture size, high precision and fast response.

NTC Thermistor Meat Temperature Sensor for BBQ

NTC Thermistor Meat Temperature Sensor for BBQ

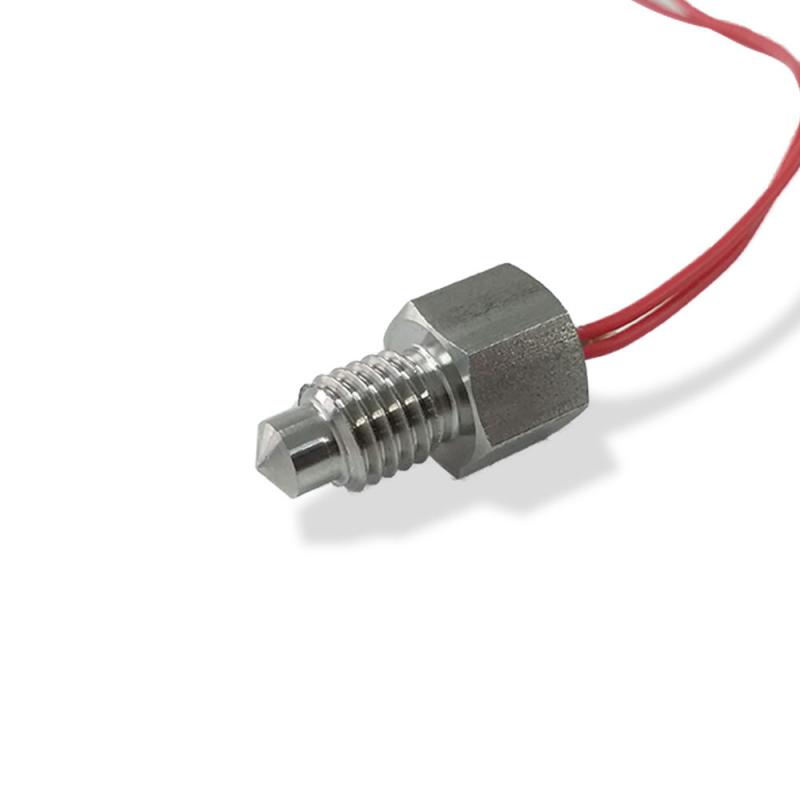

MFP-2 series temperature sensor using the NTC thermistor element. It is surface mounting type sensor fixed to devices with mounting screw of different required size. Products can be custom according to different temperature environment or application.

Thermal Fuse with Radial Lead in Plastic case RH01 series thermal fuse is a non-resetting protective device, which is used toprevent various electrical and heating appliance, dynamoelectric tools and industrial equipment from over-heating. When the working temperature exceeds the rated value, the molten substance would cut the circuit rapidly and avoid the damage caused by overheating. Technical parameters: Medol Rating Action Temp. Tf(°C) Fusing Off Temp.Tf (°C) Holding Temp.TC (°C) Max. Temp. Tm(°C) Electrical characteristics: APPROVALS Rated Voltage Rated Currency TÜV VDE CCC AC（V） A RH01-83 83 80+2 - 5 50 150 250 1 2 3 ● ● RH01-90 90 88+2 – 5 55 150 ● ● RH01-95 95 92+2 – 4 65 150 ● ● RH01-100 100 97+2 - 3 70 150 ● ● RH01-105 105 100+3 –2 75 180 ● ● RH01-110 110 105±3 75 180 ● ● RH01-115 115 110+2 – 3 80 180 ● ● RH01-120 120 115±3 80 180 ● ● RH01-123 123 117±3 80 180 ● ● RH01-125 125 120±3 95 180 ● ● RH01-130 130 127±3 100 180 ● ● RH01-135 135 132+3 –5 105 180 ● ● RH01-140 140 135±3 105 180 ● ● RH01-142 142 148±3 110 180 ● ● RH01-145 145 140±3 110 180 ● ● RH01-150 150 145±3 115 180 ● ● RH01-152 152 147±3 115 180 ● ●   Typical Applications Wire-loop products -      Power supplier -      Transformer -      Power adapter Domestic electrical appliance -      Washing machine -      Fanner -      Dryer -      Lighting appliance -      Game player Advantages: Typical Sizes: Standard RT and Tolerence: Ordering Code: Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions

Metal Case Thermal Fuse with Axial Lead RY01 series thermal fuse is a non-resetting protective device, which is used to prevent various electrical and heating appliance, dynamoelectric tools and industrial equipment from overheating. When the working temperature exceeds the rated value, the molten substance would cut the circuit rapidly and avoid the damage caused by overheating.  Technical Parameters: Model Rating Action Temp. Fusing Off Temp. Holding Temp.TC Max.Temp. Tm Electrical characteristics APPROVALS Rated Voltage Rated Currency TÜV VDE CCC Tf(°C) Tf (°C) (°C) (°C) AC（V） A RY01-55 55 52±2 35 120 250 10 15 ● ○ RY01-65 65 63+1 –3 40 120 250 10 15 ● ○ RY01-70 70 68+2 –3 45 120 250 10 15 ● ○ RY01-76 76 73+2 –3 45 120 250 10 15 ● ○ RY01-80 80 78+2 –3 55 150 250 10 15 ● ○ RY01-85 85 80±2 55 150 250 10 15 ● ○ RY01-92 92 90±2 65 150 250 10 15 ● ○ RY01-96 96 94±2 65 150 250 10 15 ● ● ○ RY01-100 100 97+2 –3 65 150 250 10 15 ● ● ○ RY01-105 105 100+4 –3 70 150 250 10 15 ● ○ RY01-110 110 106±2 75 150 250 10 15 ● ○ RY01-113 113 110+2 –3 80 150 250 10 15 ● ○ RY01-115 115 110±3 80 150 250 10 15 ● ○ RY01-121 121 119+2 –3 90 180 250 10 15 ● ○ RY01-123 123 120+2 –3 90 180 250 10 15 ● ○ RY01-125 125 120+3 –2 90 180 250 10 15 ● ○ RY01-128 128 124±3 90 180 250 10 15 ● ○ RY01-130 130 127±3 100 180 250 10 15 ● ○ RY01-133 133 130±3 100 180 250 10 15 ● RY01-135 135 130±3 100 180 250 10 15 ● ● ○ RY01-139 139 137±2 105 180 250 10 15 ● ○ Model Rating Action Temp. Fusing Off Temp. Holding Temp.TC Max. Temp. Tm Electrical characteristics APPROVALS Rated Voltage Rated Currency TÜV VDE CCC Tf(°C) Tf (°C) (°C) (°C) AC（V） A RY01-142 142 140+2 –3 112 180 250 10 15 ● ● ○ RY01-145 145 140+2 –3 112 180 250 10 15 ● ○ RY01-152 152 149±3 115 200 250 10 15 ● ○ RY01-155 155 152±3 115 200 250 10 15 ● ○ RY01-165 165 162±3 135 200 250 10 15 ● ○ RY01-167 167 162±3 135 200 250 10 15 ● ● ○ RY01-169 169 165+2 –3 135 200 250 10 15 ● ○ RY01-172 172 170±2 140 200 250 10 15 ● ○ RY01-180 180 177±3 150 220 250 10 15 ● ○ RY01-185 185 182±2 150 220 250 10 15 ● ○ RY01-192 192 190+2 –5 165 220 250 10 15 ● ○ RY01-195 195 190+2 –5 165 220 250 10 15 ● ○ RY01-200 200 195±5 165 250 250 10 15 ● ○ RY01-210 210 205±5 170 250 250 10 15 ● ○ RY01-216 216 210±5 175 250 250 10 15 ● ● ○ RY01-225 225 220+2 –5 180 260 250 10 15 ● ○ RY01-230 230 225±3 195 260 250 10 15 ● ○ RY01-235 235 230±4 195 260 250 10 15 ● ○ RY01-240 240 235±3 200 260 250 10 15 ● ● ○ RY01-245 245 240±5 200 280 250 10 15 ● ○ RY01-250 250 245±5 200 280 250 10 15 ● ○ RY01-255 255 250±5 200 280 250 10 15 ● ○ RY01-260 260 255±5 205 300 250 10 15 ● ○ RY01-320 320 310+5 –10 250 300 250 10 15 ● ○ ● Certified      ○ Certification on application Typical Applications Fanner, ventilator Smoke extractor washing machine Juice extractor and blower etc. Electric cooker micro-Wave oven Water heater Electric iron Electric radiator etc. lighting appliance and game player etc. Advantages: Typical Sizes: Standard RT and Tolerence: Ordering Code: Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
