Focusens MFP-6 Screw in temperature sensor has a hex brass/al. body and a M3 thread stud. It is easily screwed into M3 hole and enable the thermistor sensing tip contact with working device directly and firmly. With our expert craft and material the sensor can be designed for different applications for high temperature upto 300 °C, 600°C.
Brand:
FocusensItem NO.:
MFP-6Order(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time：
4 weeksSensing Component:
NTC Thermistor various R and B value on requestWorking Temperature:
-30-125°CThermal Time:
Water (0.4m/s) T0.63 ≤ 30sHi-Pot:
1500V 1mA 1minuteM3 Thread Mount Temperature Sensor for Cooking Device MFP Series
Thread Mount Temperature Sensor using the NTC thermistor element.It is screw type sensor mount onto devices by a M3 or specified screw thread . Products can be custom according to different temperature environment or application.
Key Parameters:
|
Sensing Component |
NTC Thermistor various R and B value on request |
Probe Material |
Brass/AL |
|
Working Temperature |
-50-300°C / -80-600°C |
Cable Material |
PTFE Teflon/ Fiber Glass |
|
Thermal Time |
Water (0.4m/s) T0.63 ≤ 30s |
Sizes |
On request |
|
Dissipation factor |
≥2.5 mW/°C |
Connector |
On request |
|
Long-term stability |
Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
|
|
|
Hi-Pot |
1500V 1mA 1minute |
|
|
|
Insulation Resistance |
DC500V min.100Mohm |
|
|
Typical Applications
Cylinder cavity
Household/ Commercial Oven / Cooker

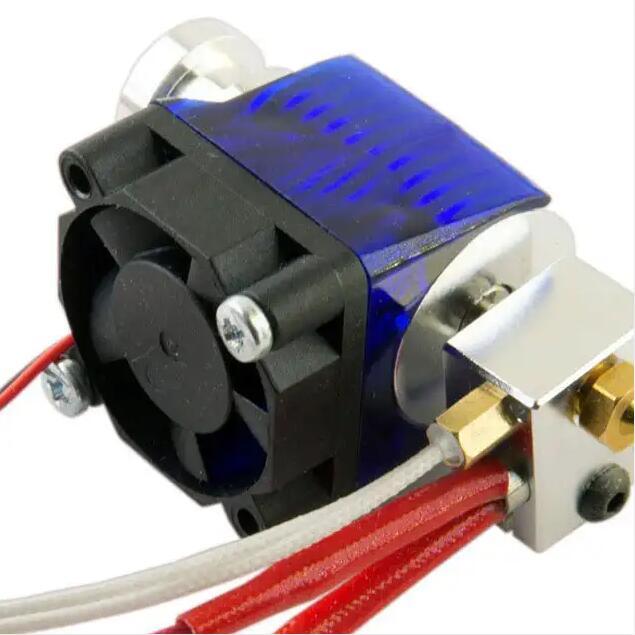

3D printer
Advantages:
Typical Sizes:
Sensing Elements :
NTC thermistor 10K B25/85:3435, 10K B25/50: 3950,100K B25/50: 3950 as typical sensing components/ Alternative sensing version PT1000 / PT1000/ Thermocouple T type / Thermocouple K type available with same featured mounting configuration .
