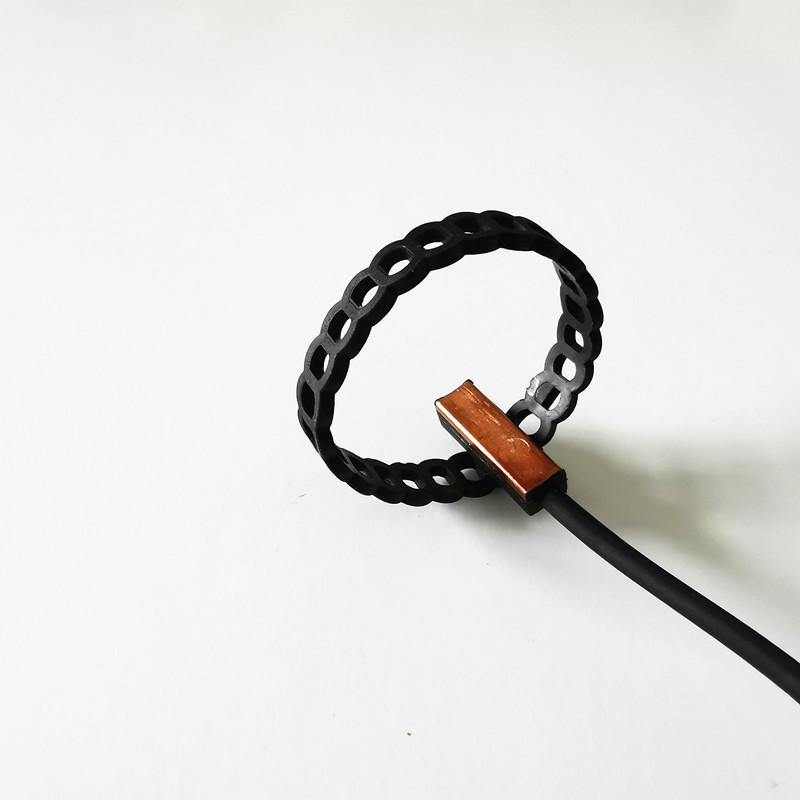

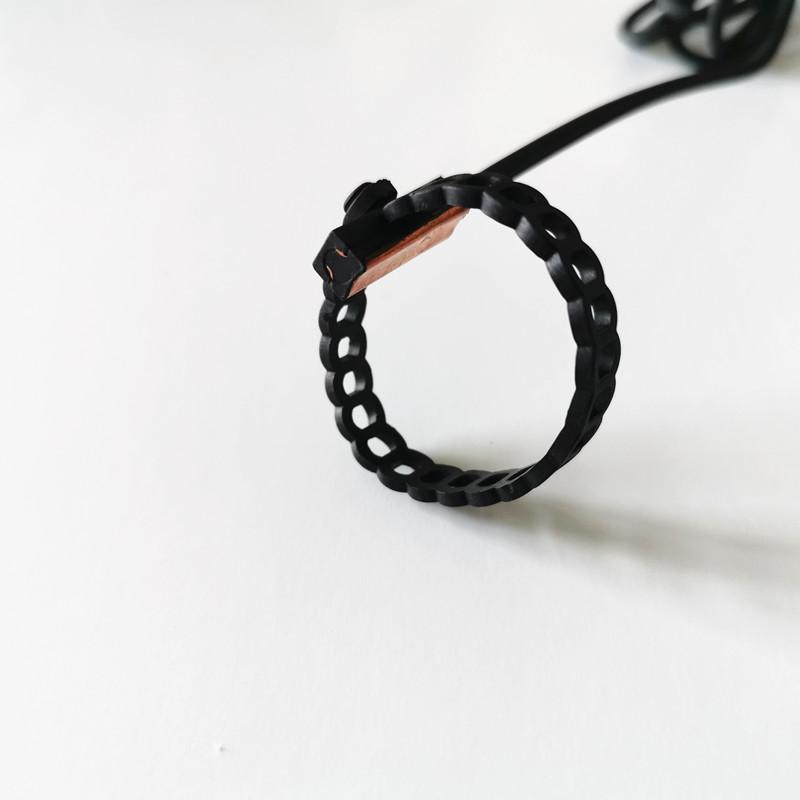

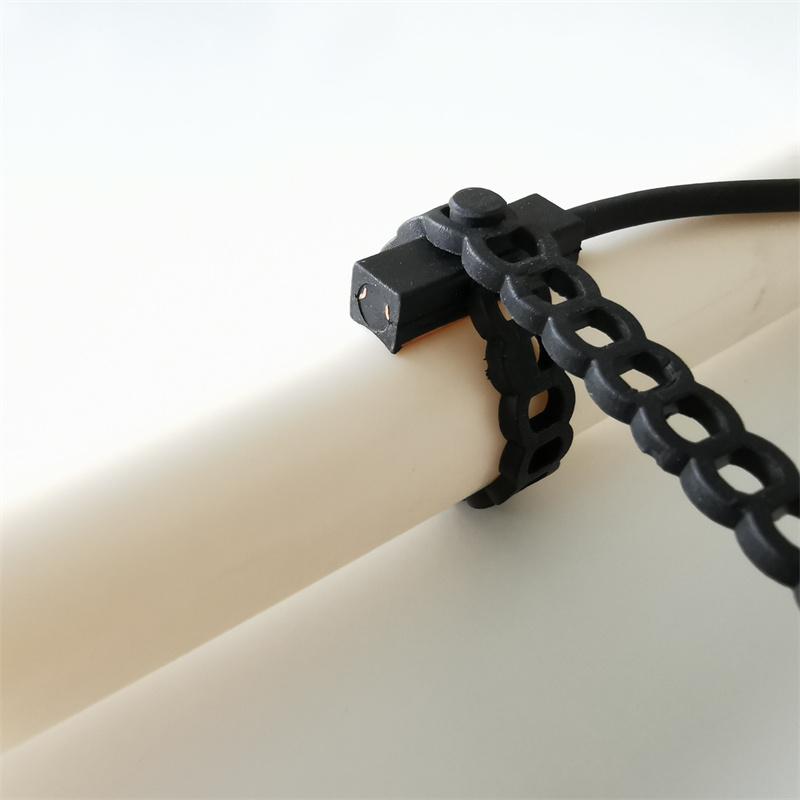

IP68 Waterproof Pipe Clamp Temperature Sensor

MFE1D series pipe clamp temperature sensor have intergral probe and body , which is overmoulded with good waterproof performance thermoplastic materials . It have a standard 110mm length adjustable chain , extra chains can be added to extend the length when it is used for bigger diameter pipes.


  • Brand:

    Focusens
  • Item NO.:

    MFE1D
  • Order(MOQ):

    3000
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    NTC Thermistor / RTD PT100/ PT1000
  • Working Temperature:

    -30-120°C
  • Thermal Time:

    Water (0.4m/s) T0.63 ≤ 30s
  • Hi-Pot:

    1500V 1mA 1minute
  • Product Detail

-------- Trust Focusens understand considerably your considerations and concerns on choosing parameters configurations Materials   --------


IP68 Waterproof Pipe Clamp Temperature Sensor


MFE1D series pipe clamp temperature sensor have intergral probe and body , which is overmoulded with good waterproof performance thermoplastic materials . It have a standard 110mm length adjustable chain , extra chains can be added to extend the length when it is used for bigger diameter pipes.



Key Parameters:


Sensing Component

NTC Thermistor various R and B value on request

Probe Material

TPE (With/Without Copper)

Working Temperature

-30-120°C

Cable Material

 TPE cable

Thermal Time

Water (0.4m/s) T0.63 ≤ 30s

Sizes

adjustable

Dissipation factor

2.5 mW/°C

Connector

On request

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Hi-Pot

1500V 1mA 1minute

Insulation Resistance

DC500V min.100Mohm


Typical Applications

Floor heating system

Water pipe

Wall-hanging stove

Pipe heating system


Advantages:

      IP68 Waterproof

      Adjustable for different diameter pipes

      Wide working temperature range

      Good wether endurance

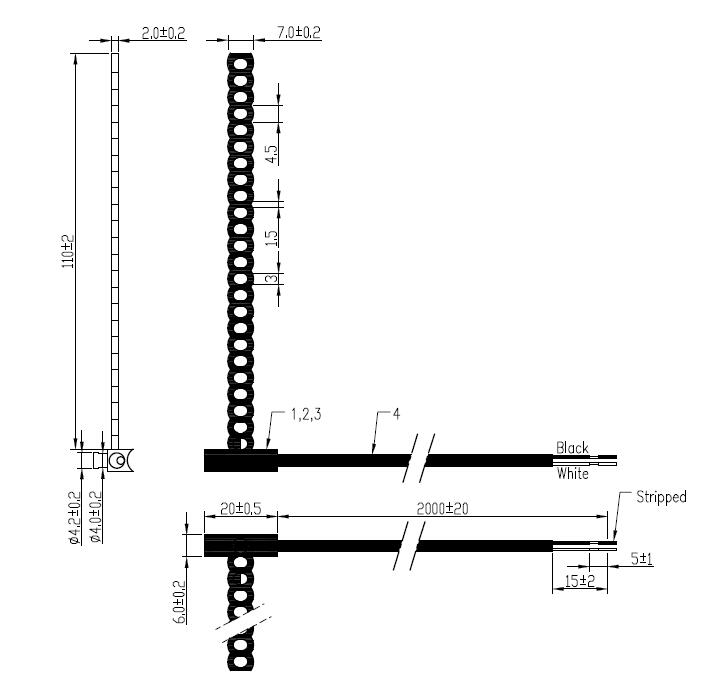

Typical Sizes:





Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions



Did you find exact part you want ?  Leave a message or send us email with your requests, work out your idel part together .  Flexible Custom Design &Development is Focusens Expert Skill .
