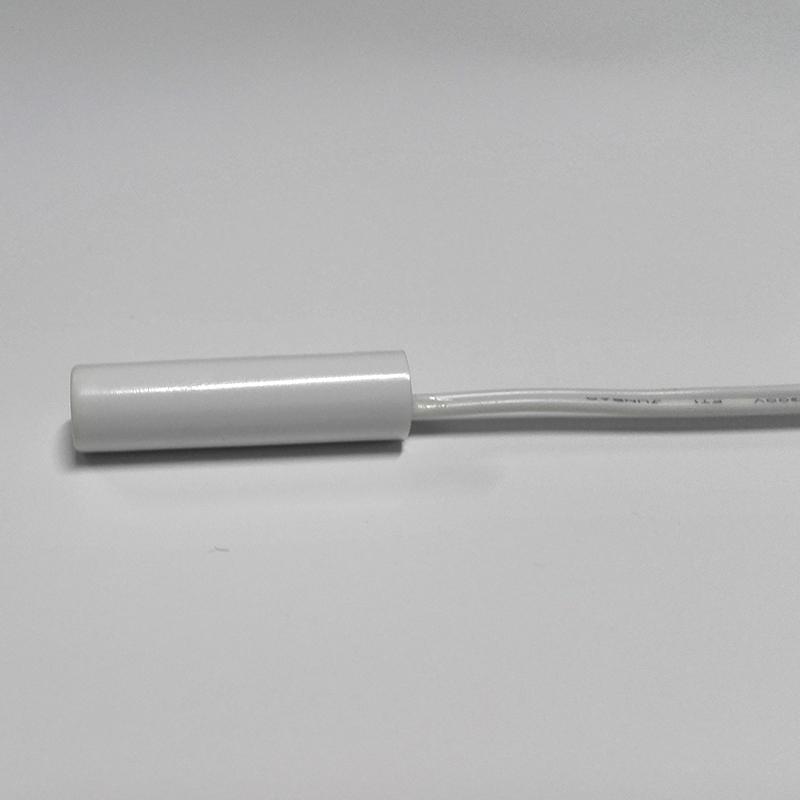

MFT PCB Board Mount humidity proof Temperature Sensor with Plastic House for Refrigerator

MFT series temperature sensor using NTC thermistor as temperature sensing element. Products can be custom according to different temperature environment or application.

With our mature craft, it can be made with a variety of specifications, customers can use directly without fabricating.

Item NO.:
MFT
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Sensing Component:
Typical 5K B25/85:3977, 10K B25/85: 3435,or NTC Thermistor various R and B value on request
Working Temperature:
-40°C to +105°C
Thermal Time:
Water (0.4m/s) T0.63 ≤ 30s
Hi-Pot:
1500V

Inquire now

Parts Selection Guide

New Products

Product Detail

-------- Trust Focusens understand considerably your considerations and concerns on choosing parameters configurations Materials --------

MFT series temperature sensor using NTC thermistor as temperature sensing element. Products can be custom according to different temperature environment or application.

With our mature craft, it can be made with a variety of specifications, customers can use directly without fabricating.

Typical Applications

Features

l Ice maker machine

l Refrigerator

l Heat Pump

l Water heater

l Floor heating System

l General Application etc.

l Plastic housings PBT ABS Nylon or SUS，Cu for food grade

l Waterproof for high Humidity Environment

l Suitable for low temperature working

Technical Data

Item	Parameter
Sensing Element	NTC Thermistor various R and B value on request
Temperature range	-40°C to +105°C
Response time	Water (0.4m/s) T0.63 ≤ 30s
Dissipation Factor	≥ 2.5mW/°C
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Dielectric Strength	1500VAC
Insulation Resistance	≥100MΩ 500VDC

Typical Probe Size :

Did you find exact part you want ? Leave a message or send us email with your requests, work out your idel part together . Flexible Custom Design &Development is Focusens Expert Skill .

Leave A Message

Any information wanted ? Leave us a message here please.

Subject : MFT PCB Board Mount humidity proof Temperature Sensor with Plastic House for Refrigerator
