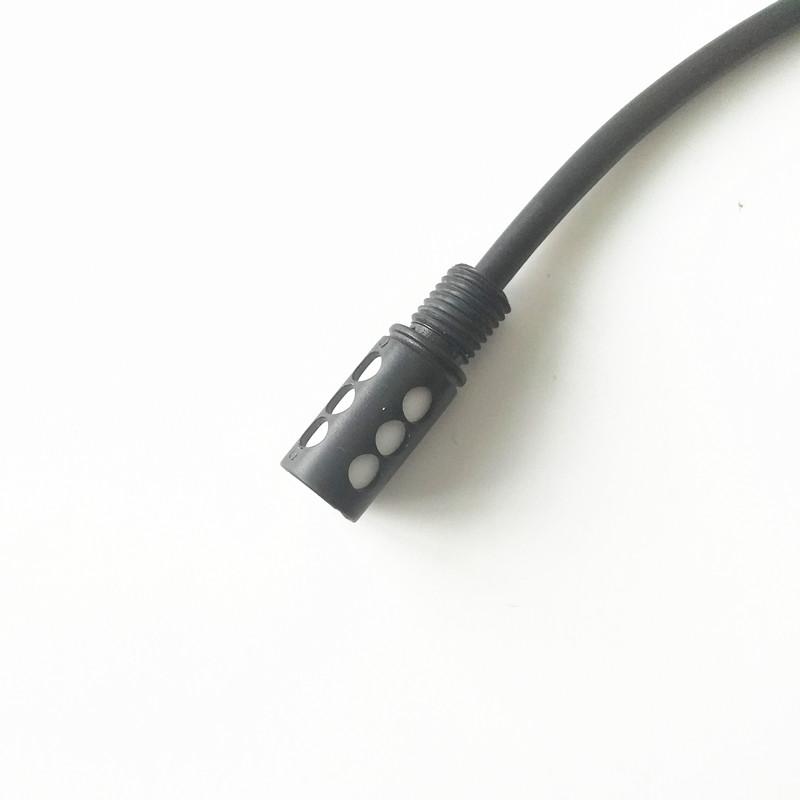

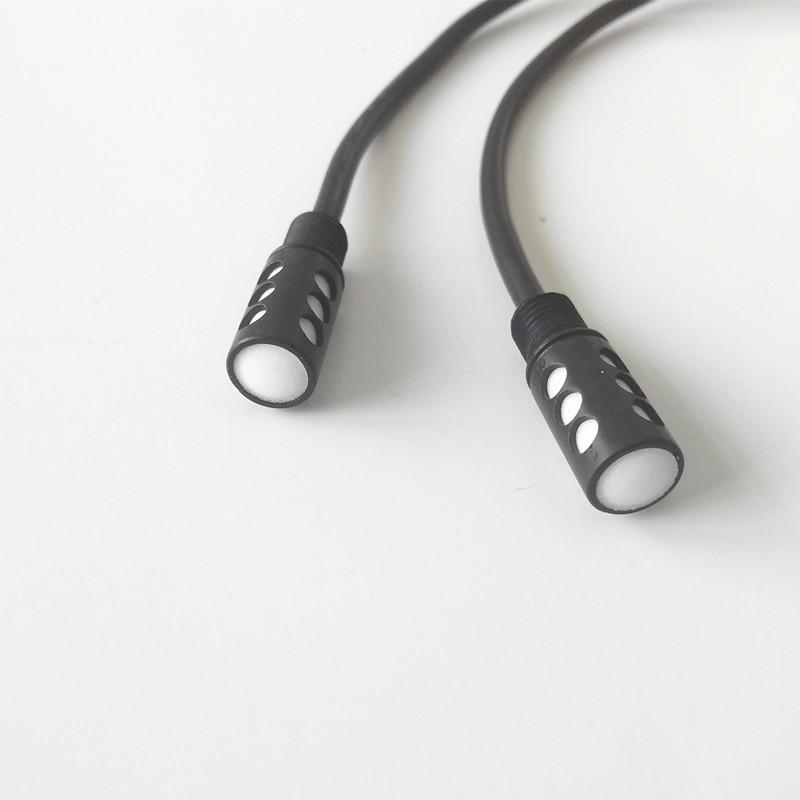

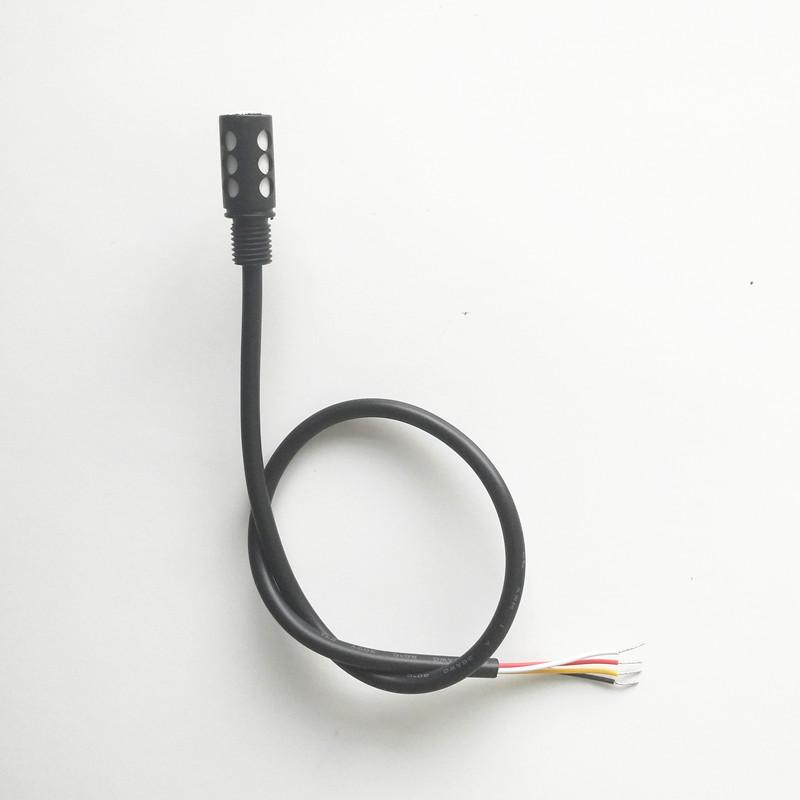

THD2X series Temperature Humidity Transducer Module I2C output

I2C output Humidity Transmitter


  • Item NO.:

    THD2X
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    Sensirion SHT21
  • Working Temperature:

    -20--+80°C
  • Thermal Time:

    10
  • Product Detail


Typical Applications

Features

Incubators

Fermentation chambers

Environmental monitoring

Industrial Process control

Humidity / temperature data logging

Small size product

Full interchangeability

Wide working range, high accuracy

High reliability and long term stability

Technical Data

Parameter

Temperature

Relative Humidity

Measurement Range

0...+50°C

-0...+60°C

-20...+80°C

0...100% RH

Accuracy at 25°C

±0.3°C

±3% RH (20...80% RH)

Stability

<0.1°C / year

<0.5%RH / year

Response

<15s

<12s(63%)

power supply

2-wire: 12...2V 3-wire: 15...2V

Output

2-wire: ...20mA

3-wire: ...20mA / 0...1/5/10V

Load

2-wire: (VDD - 7V) / 0.02A

3-wire: Current mode less than 500Ω, Voltage mode greater than 10kΩ

Protection grade

IP65

Note:

Please don’t used in extreme conditions or exposure to solvent vapors




Dimensions (mm)

Connection Diagram


Ordering Guide

SERIES

OUTPUT

T-SCALING

FHT10

(A)   2-wire current mode ...20mA

(B)   3-wire current mode ...20mA

(D)   3-wire voltage mode 0...10V

(E)   3-wire voltage mode 0...5V

(F)   3-wire voltage mode 0...1V

(T1)     0...+50°C

(T2)  -0...+60°C

(T3)  -20...+80°C

Default wire length is 1.5m, AWG2.
