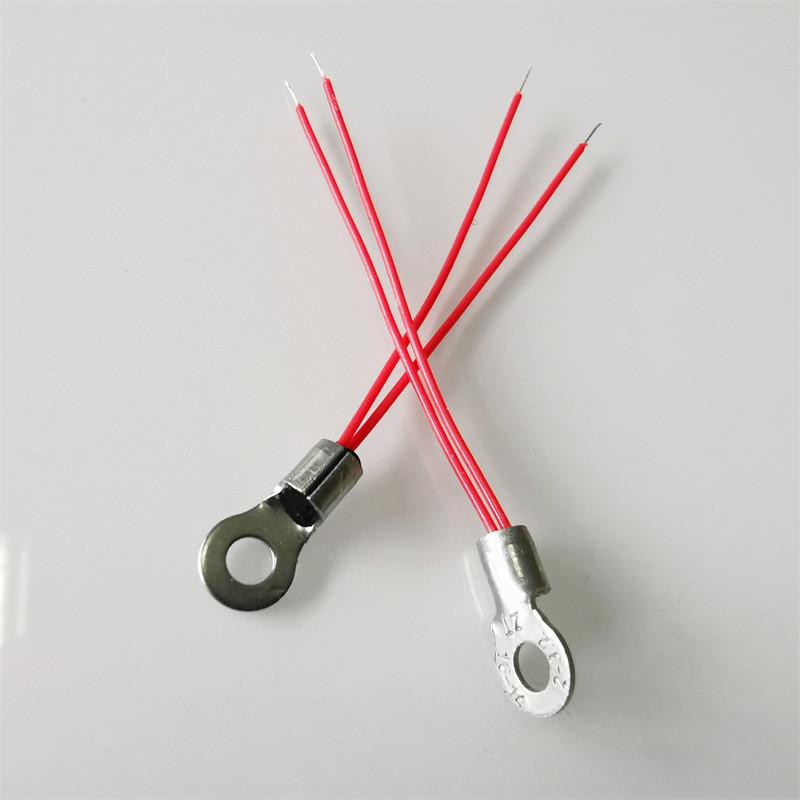

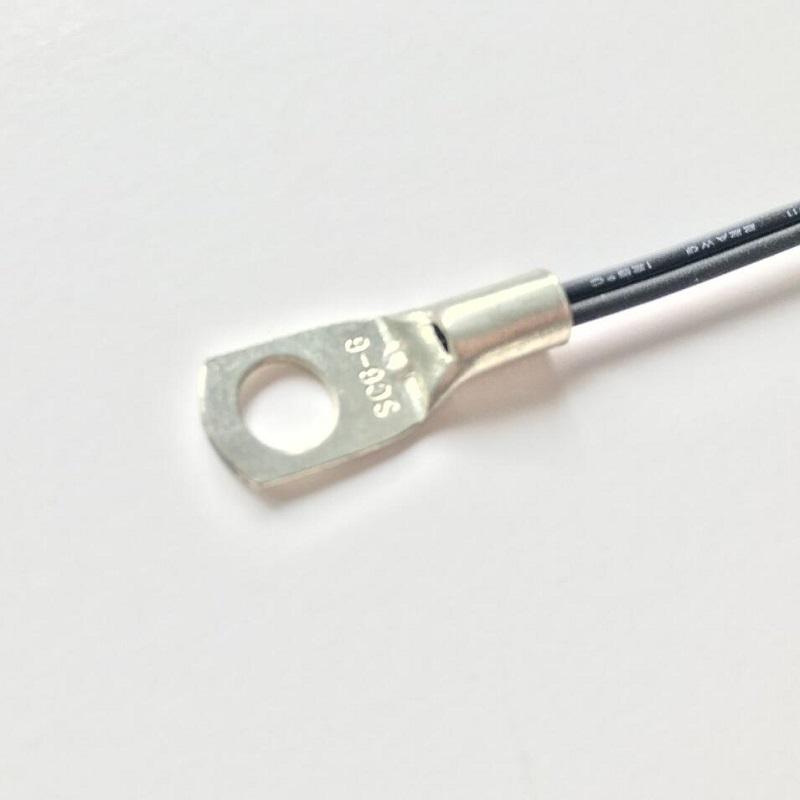

MFP-2 Ring lug NTC Temperature Sensor with Screw Hole 3-12mm

MFP-2 series temperature sensor using the NTC thermistor element. It is surface mounting type sensor fixed to devices with mounting screw of different required size. Part can be customized for thread M3, M4,M5,M6,M8,M10,M12 with our existing moulding , other size requirement can be developed according to different temperature environment or application.


  • Brand:

    Focusens
  • Item NO.:

    MFP-2
  • Order(MOQ):

    3000
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    NTC Thermistor various R and B value on request
  • Working Temperature:

    -30-150’C
  • Thermal Time:

    Water (0.4m/s) T0.63 ≤ 30s
  • Hi-Pot:

    500V 1mA 1minute
  • Product Detail

Ring Lug Surface Temperature Sensor with Wiring for Voltage Protection  MFP-2 Series


MFP-2 series temperature sensor using the NTC thermistor element. It is surface mounting type sensor fixed to devices with mounting screw of different required size. Products can be custom according to different temperature environment or application. With our mature craft, it can be made with a variety of secifications,customers can usedirectly without labricating.


Key Parameters:

Sensing Component

NTC Thermistor various R and B value on request

Probe Material

Copper

Working Temperature

-30-200’C

Cable Material

PVC/XLPE/Teflon  wire

Thermal Time

Water (0.4m/s) T0.63 ≤ 30s

Sizes

On request

Dissipation factor

2.5 mW/°C

Connector

On request

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Hi-Pot

1500V 1mA 1minute

Insulation Resistance

DC500V min.100Mohm


Typical Applications

Refrigerator

HVAC

Projector

Motor

Lithium Battery Protect

Heat sink

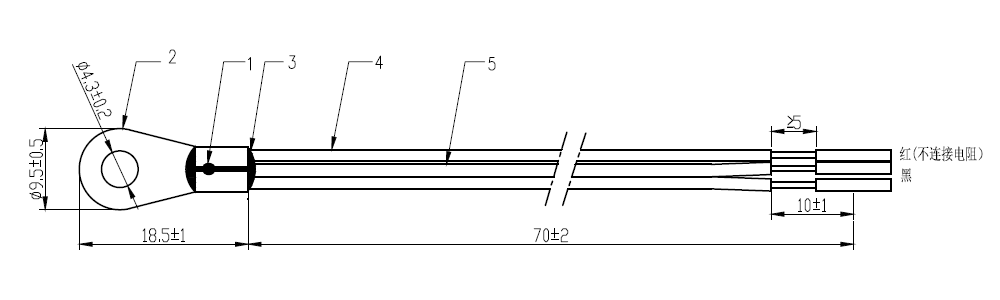

Typical Sizes:



Ordering Code:



Did you find exact part you want ?  Leave a message or send us email with your requests, work out your idel part together .  Flexible Custom Design &Development is Focusens Expert Skill .


Leave A Message
Any information wanted ? Leave us a message here please.
Related Products
Epoxy Thermistor Sensor
Simple Glue in Battery Pack NTC Thermistor Probe With Low Cost
MFE-2 series temperature sensor is epoxy encapsulation type sensor. NTC, RTD elements are most popular sensing element. Special advantage of MFE-2 series is cost saving and compact size.
Level switch
Stainless Steel Float Switch Sensor for Liquid Level
Stainless Steel Float Switch Sensor for Liquid Level Float liquid level switch is mainly composed of a dry reed tube and a floating ball, the magnetic material in the float, the float moves up and down with the measured liquid level, touching the dry reed tube action and detecting the liquid position.The product has the characteristics of light volume, simple working principle, high reliability and low price;A variety of materials for selection, and suitable for a variety of different liquid environment;Can be directly connected to electronic controllers, relays or contactors;The performance is stable and reliable, the water level can reach +/-1mm; Key Parameters: Typical Applications Advantages: Typical Sizes: Ordering Code: Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
temperature humidity transmitter

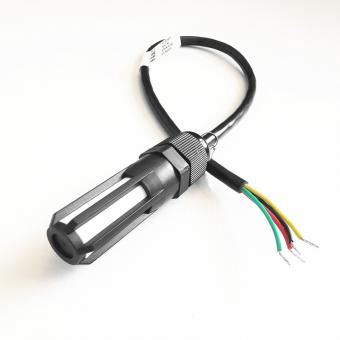

FHT10-V2 series Portable Temperature Humidity Transmitter Voltage output
