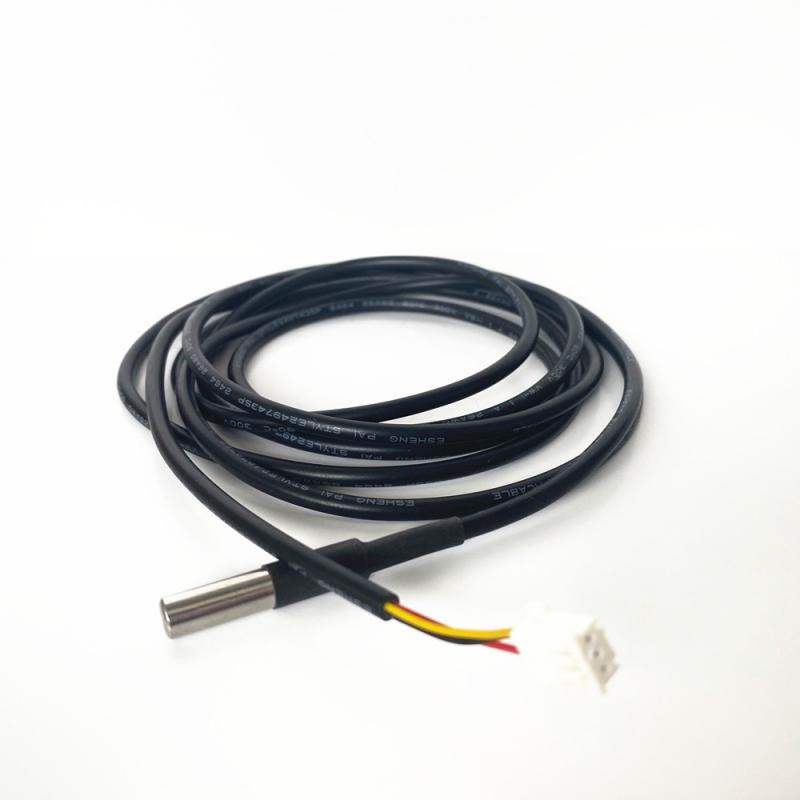

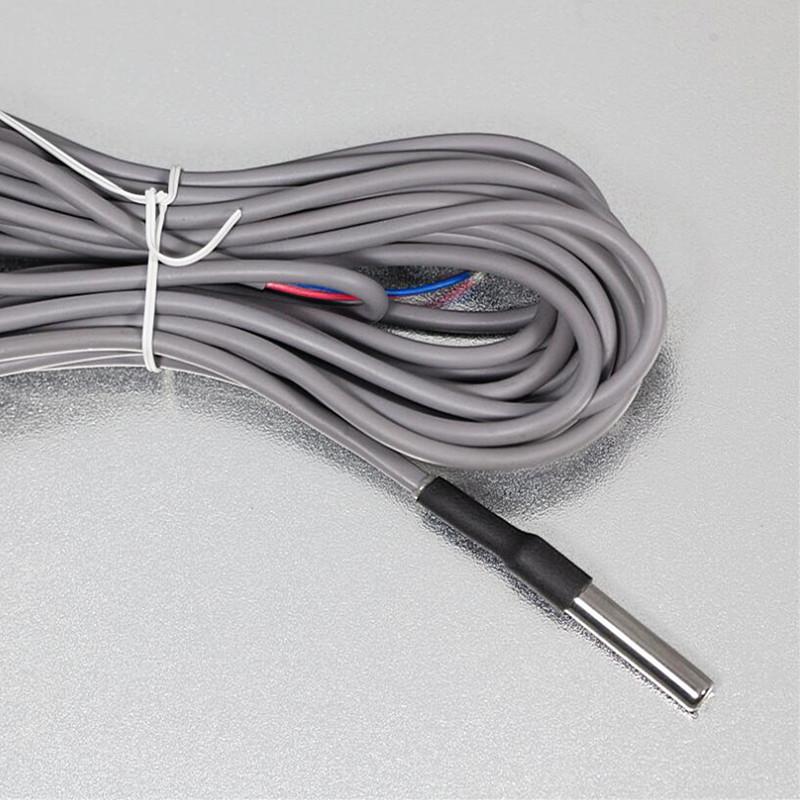

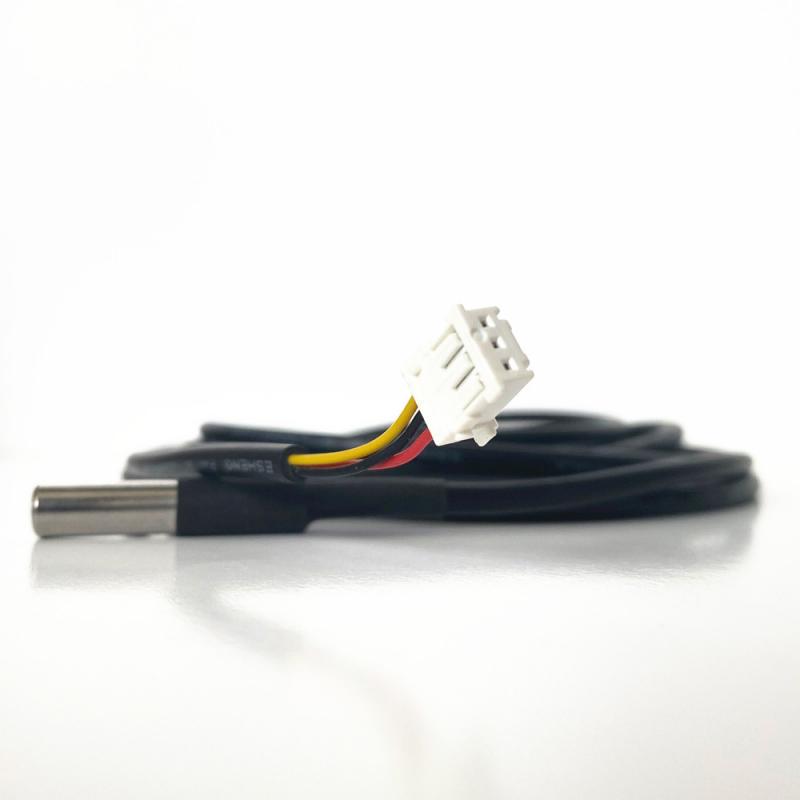

Waterproof Tubular DS18B20 Temperature Sensor Probe


  • Brand:

    Focusens
  • Item NO.:

    DS18B20
  • Order(MOQ):

    3000
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    Maxim DS18B20
  • Working Temperature:

    -55°C to +125°C (-67°F to +257°F)
  • Thermal Time:

  • Hi-Pot:

    1500V AC Min.
  • Product Detail


Waterproof Tubular DS18B20 Temperature Sensor Probe


The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. In addition, the DS18B20 can derive power directly from the data line (parasite power), eliminating the need for an external power supply.



Key Parameters:

Sensing Component

DS18B20

Power Supply

3.0~5.5V

Working Temperature

-55- 125°C.

Probe Material

SUS304 /SUS316

Accuracy

±0.5°C accuracy from –10°C to +85°C

/±2°C accuracy from -55°C to +125°C

Wire Layout

1wires

Response

Converts temperature to 12-bit digital word in 750 ms (max.)

Cable Material

Teflon/ Fiber Glass

Output

Open-drain 1-Wire interface pin.

Sizes

On request

Drift

±0.2°C on a 1000h stress test at +125°C with VDD= 5.5V

Connector

On request


Typical Applications

Household and commercial Ovens

Food process Equipments

High Temperature material treatment Equipments

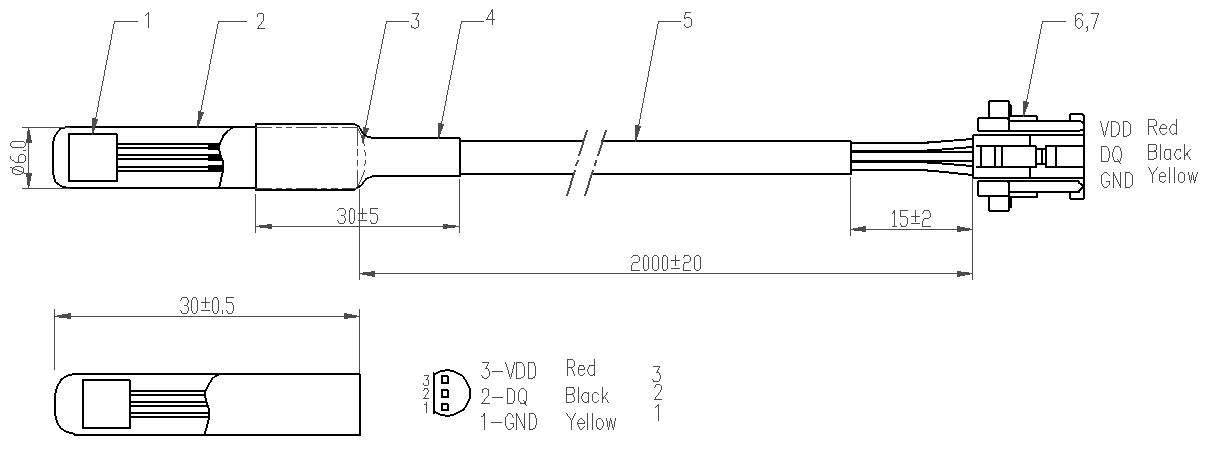

Typical Sizes:


Ordering Code:

Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions




Leave A Message
Any information wanted ? Leave us a message here please.
Related Products
Coffee Machine Temperature Sensor
High Reliable PT100 Pt1000 RTD Temperature Sensor for Coffee Machine
RTD (Resistance Temperature Detector) temperature sensor with high accuracy, good resolution, safe and reliable, convenient use, can be directly measured during the manufacture of all kinds of liquid, vapour and gas medium temperature.
Level switch
Stainless Steel Float Switch Sensor for Liquid Level
Stainless Steel Float Switch Sensor for Liquid Level Float liquid level switch is mainly composed of a dry reed tube and a floating ball, the magnetic material in the float, the float moves up and down with the measured liquid level, touching the dry reed tube action and detecting the liquid position.The product has the characteristics of light volume, simple working principle, high reliability and low price;A variety of materials for selection, and suitable for a variety of different liquid environment;Can be directly connected to electronic controllers, relays or contactors;The performance is stable and reliable, the water level can reach +/-1mm; Key Parameters: Typical Applications Advantages: Typical Sizes: Ordering Code: Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
PTC Thermistor MZ6
MZ6 Triple PTC Thermistor for Moter Protection with range +60-180'C
The MZ6 Series PTC Thermistor are used to monitor and protect motor from over temperature.  Temperature range is from 60 to 180°C. PTC thermistor beads with different rated response temperatures can be connected in series as duel, triple or Sextuple .
DS18B20 Temperature Sensor
Flange Mount DS18B20 Temperature Sensor with Maxim Element
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of-55°C to +125°C and is accurate to ±0.5°C over the range of-10C to +85℃.

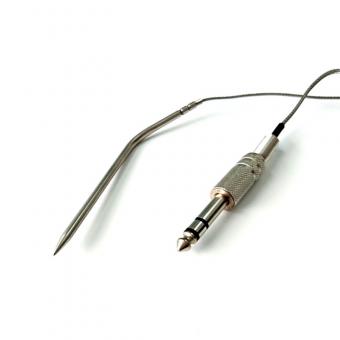

Oven Temperature Sensor
500'C High Temperature Oven Sensor with 6.3mm Ground Connector
Focusens MZP-4 series oven temperature sensor are specifically designed for high temperature household and commercial ovens. The craft and materials enable it workable for high temperature upto 500’C. With flexible design and custom in house capability , we have full ranges of oven temperature meeting different electrical and mounting requirements.

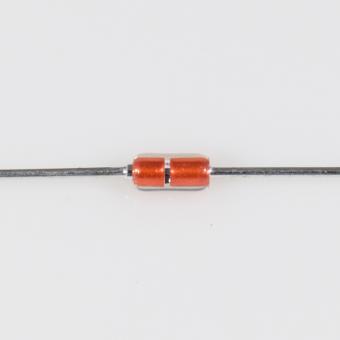

high precision NTC Thermistor
