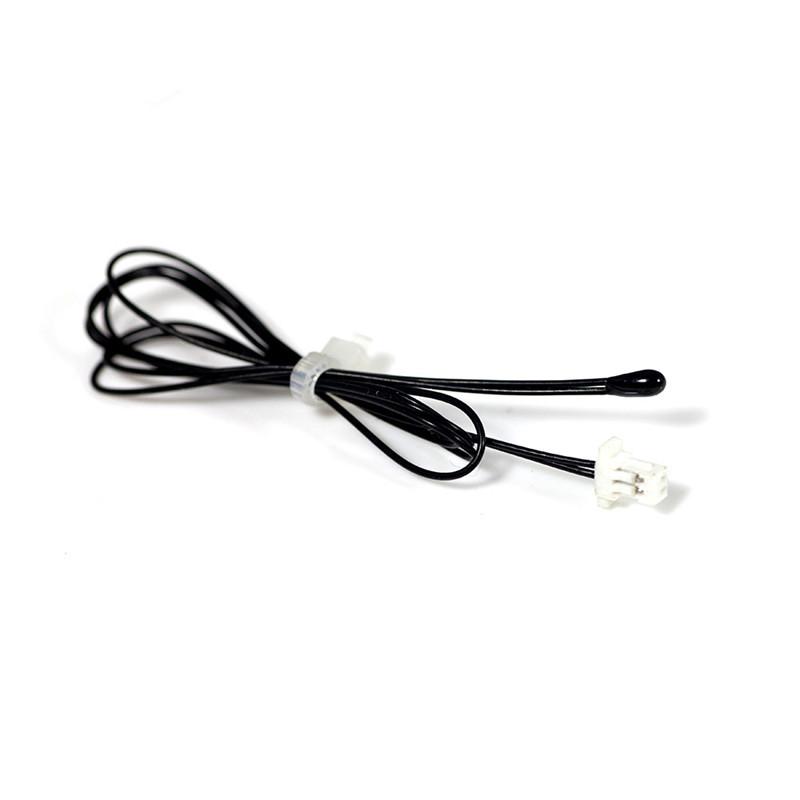

MF5A-5 Series Epoxy NTC Thermistor with Insulation Lead Wire

MF5A-5 Series miniture NTC thermistor is made with epoxy resin coating ,and insulation lead wire like PVC wire, teflon or Kynar wire. It has advantages of miniture size, high precision and fast response.

  • Brand:

    Focusens
  • Item NO.:

    MF5A-5
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    1-2 weeks
  • Sensing Component:

    NTC
  • Working Temperature:

    -55°C to +125°C
  • Thermal Time:

    ≤ 10s
  • Product Detail

Technical Data

Item

Temperature

Temperature range

-55°C to +125°C

Response time

Water (0.4m/s) T0.63 ≤ 7s

Dissipation factor

≥ 2mW/°C

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Dielectric Strength

1500VAC

Insulation Resistance

≥200MΩ 500VDC


Dimensions:
