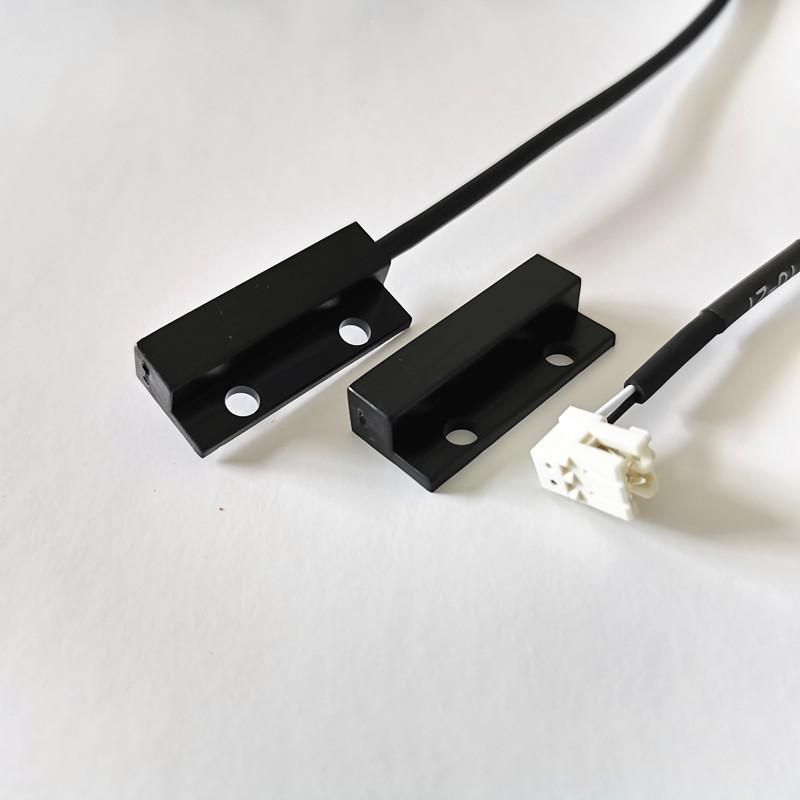

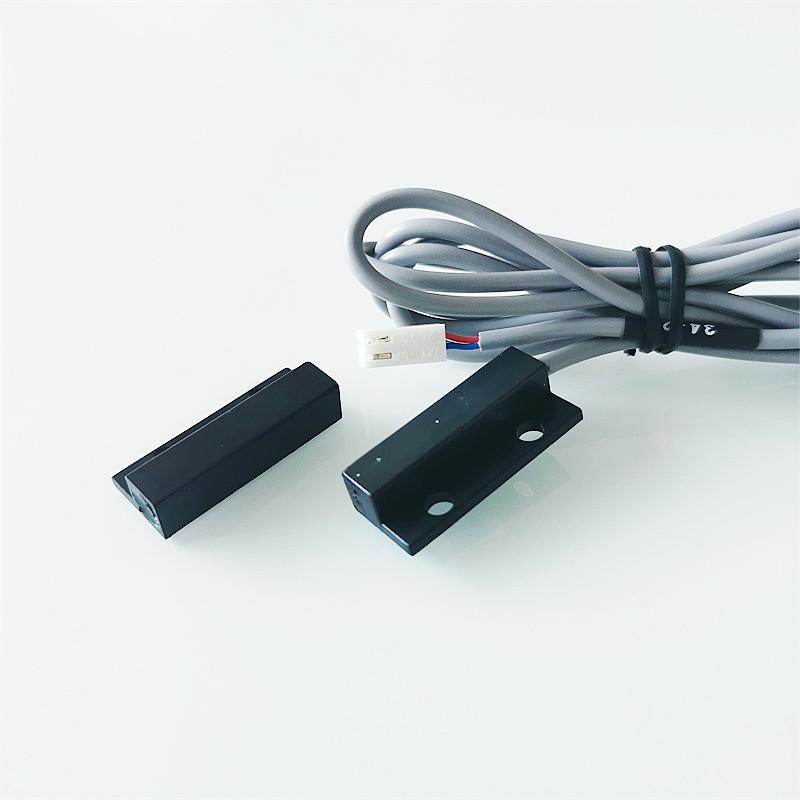

AT1315 Contact Reed Switch Magnet Sensor with ABS Enclosure for Refrigerator Door

This AT1315 door switch sensor is often used to detect when a door or drawer is open, it have mounting tabs and holes to screws onto door wall. Both working model NO and NC options available .

Brand:
Focusens
Sensing Component:
ORD324 Actuator
Working Temperature:
-30℃～+80℃ / -30～105℃ / -30℃～+150℃

Inquire now

Parts Selection Guide

New Products

Product Detail

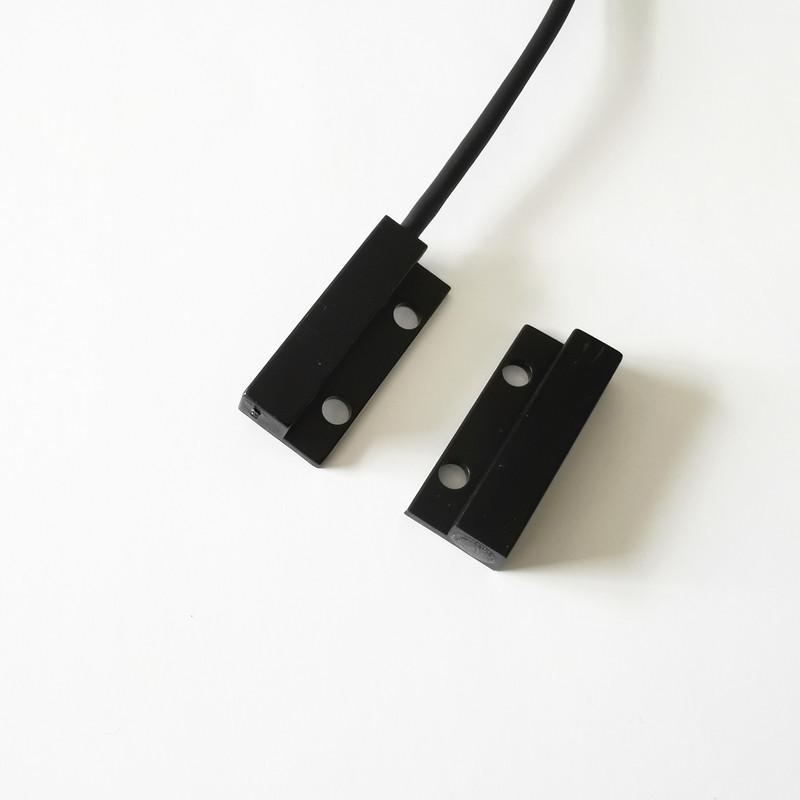

AT1315 Flange Mounting Contact Magnet Switch for Refrigerator Door/ Drawer

The AT1315 Magnetic sensor are uniquely designed and constructed to flanged mounting to refrigerator door or drawer. One part of the switch contains arranged reed switches, the other part contains a matching magnets,they work together producing a symmetrical magnetic field.

It’s case design enables screw or adhesive mounting. Rated working temperature designed from 80°C,105°C and 150°C. It is capable of switching up to 265Vac/300Vdc at 10VA.

Key Parameters:

Sensing Component	Magnetic Sensor	Case Material	PBT/ABS/ Nylon Black or White
Working Temp	-30℃～+80℃ / -30～105℃ / -30℃～+150℃	Cable Material	PVC / XLPE / TPE
Magnetic	NdFeB magnets	Sizes	ABS14×34mm
Switch Element	Fluxe-14	Connector	On request
Hi-Pot	＞250VDC	Maxmim Currency	1A
Initial Contact Resistance	≤300mΩ	Contactor Load	10W

Typical Applications

• Position and limit sensing

• Security system switch

• Door switch

• Linear actuators

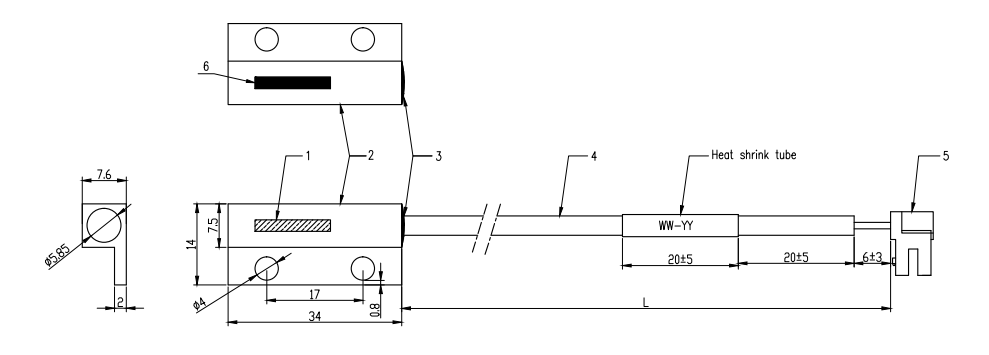

Typical Sizes:

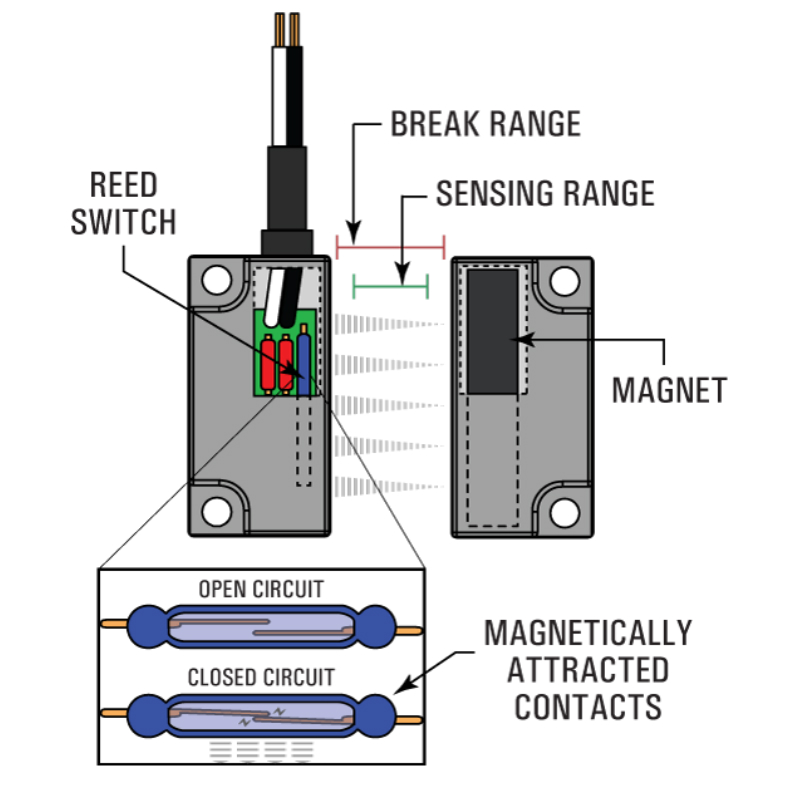

Working Principle

Ordering Code:

Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions

Leave A Message

Any information wanted ? Leave us a message here please.

Subject : AT1315 Contact Reed Switch Magnet Sensor with ABS Enclosure for Refrigerator Door

Related Tags :

Related Products

Magnet Reed Relay for Refrigerator Door Light Switch

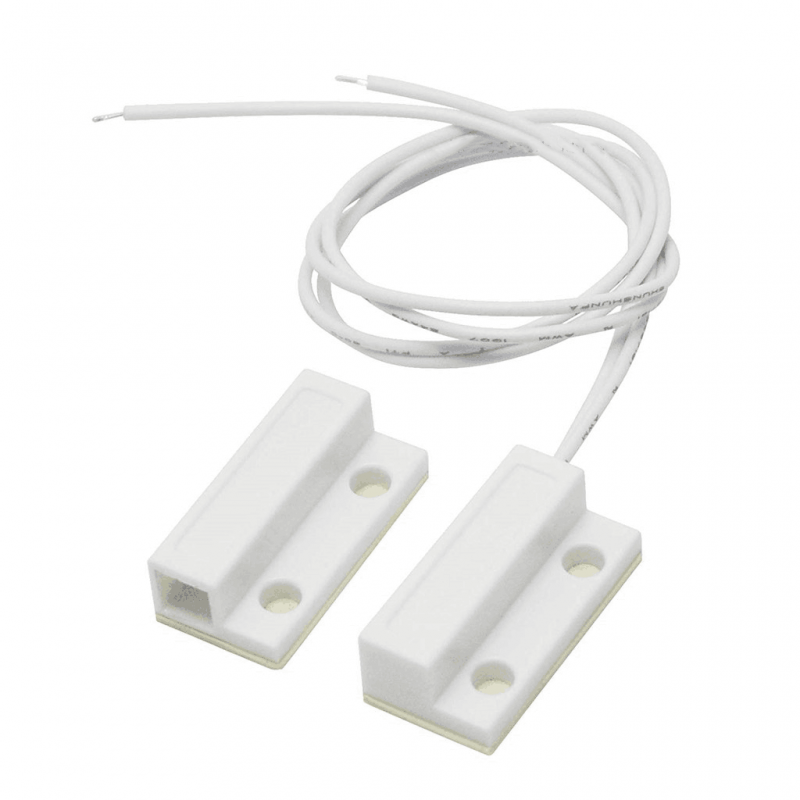

Magnetic Door Switch Sensor
