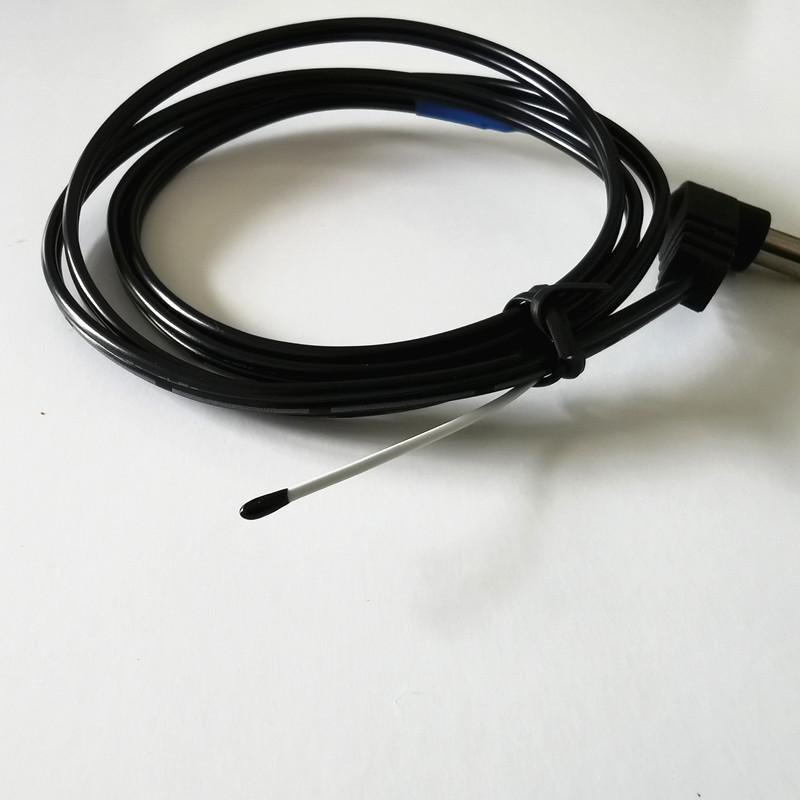

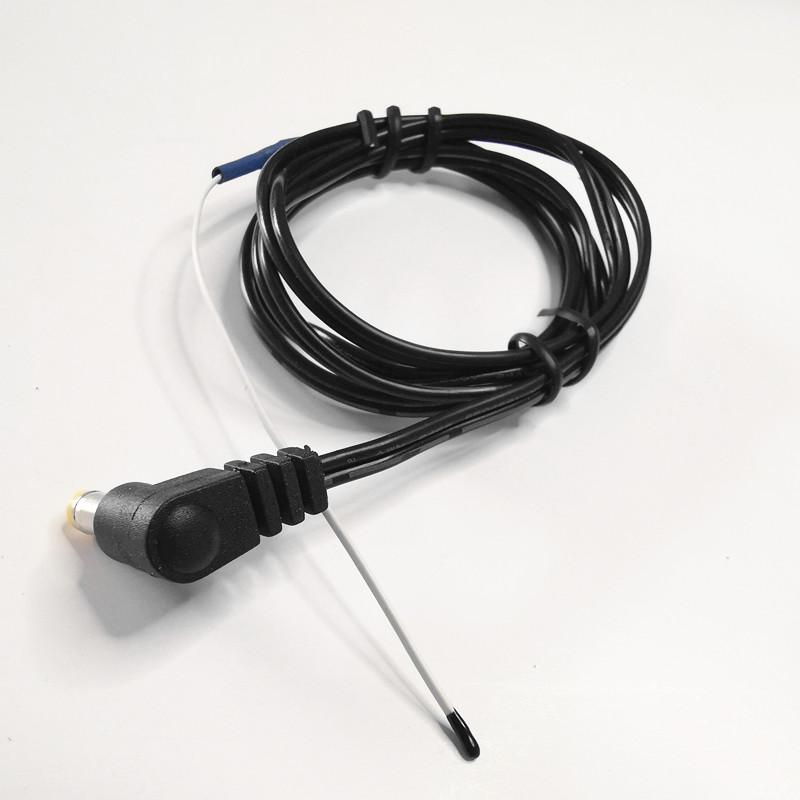

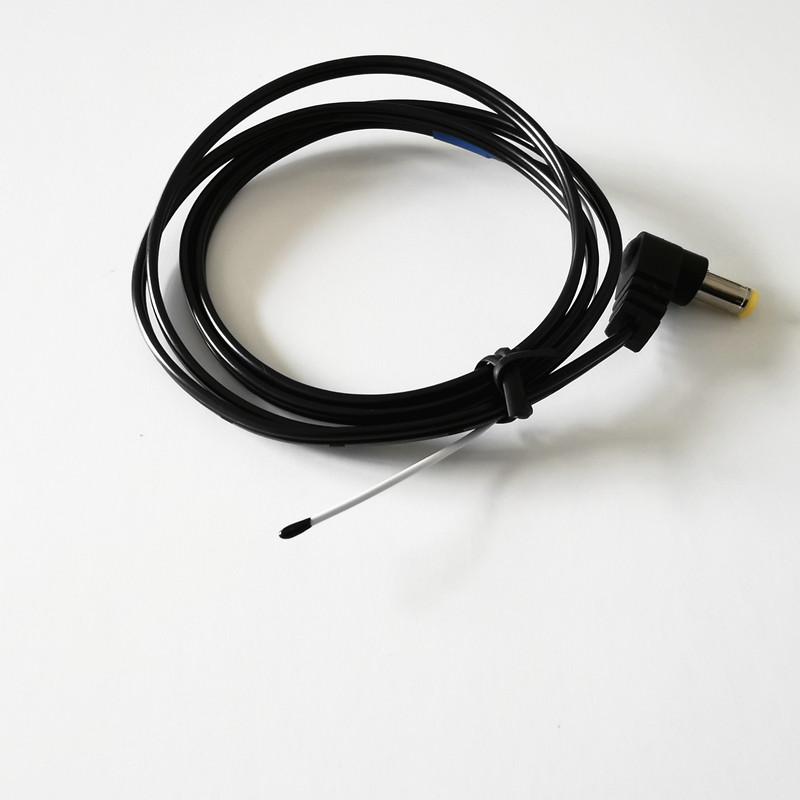

FHD4516 Series Precision NTC Thermistor 2252 ohms for heating Mat

Thermistor FHD4516 belongs to Focusens FHR400 series medical NTC Thermistor temperature sensor of high precision . It is specifically used for medical application patient monitoring , body temperature condition measurement.

Brand:
Focusens
Item NO.:
FHD4516
Order(MOQ):
1000pcs
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
NTC thermistor 2.252K , 10K 30K ohms
Working Temperature:
0-70'C
Thermal Time:
5s around
Hi-Pot:
1000V AC

Inquire now

Categories

New Products

Product Detail

YSI 400 compatiable NTC thermistor have 0.2'C high precision in range 25-45'C

Key Parameters:

Sensing Component	NTC thermistor 2.252Kohms	Probe Material	Epoxy resin / sus
Working Temperature	0-70’C	Cable Material	PP/ PVC/TPE/TPU/Teflon
Thermal Time	Water (0.4m/s) T0.63 ≤ 7s	Sizes	On request
Dissipation factor	≥ 2.1mW/°C	Connector	Molex 02061131
Tolerance Available	0.2°C @ 25°C - +45°C

Typical Applications:

Accurate temperature sensing and monitoring compatible of YSI400 Series

Human or animal baby Incubator

Advantages:

Interchangeable with high precision 25-45'C +/-0.2'C

Compatible with all accept YSI 400 series sensor monitoring equipment. Such as GE, HP, Japan photoelectric, philips, Siemens, mindray, treasure Wright monitor

Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
