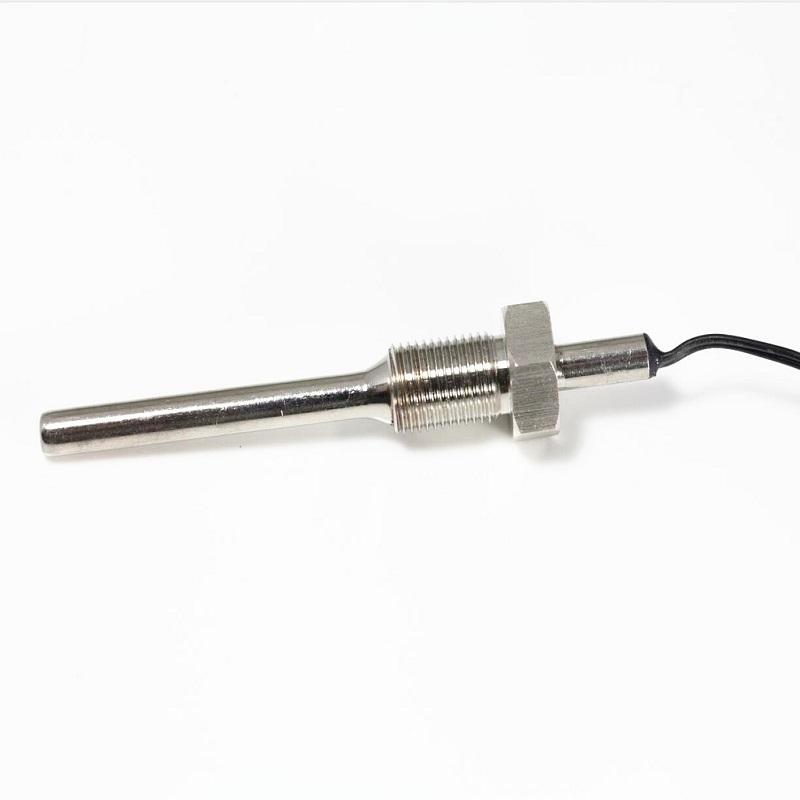

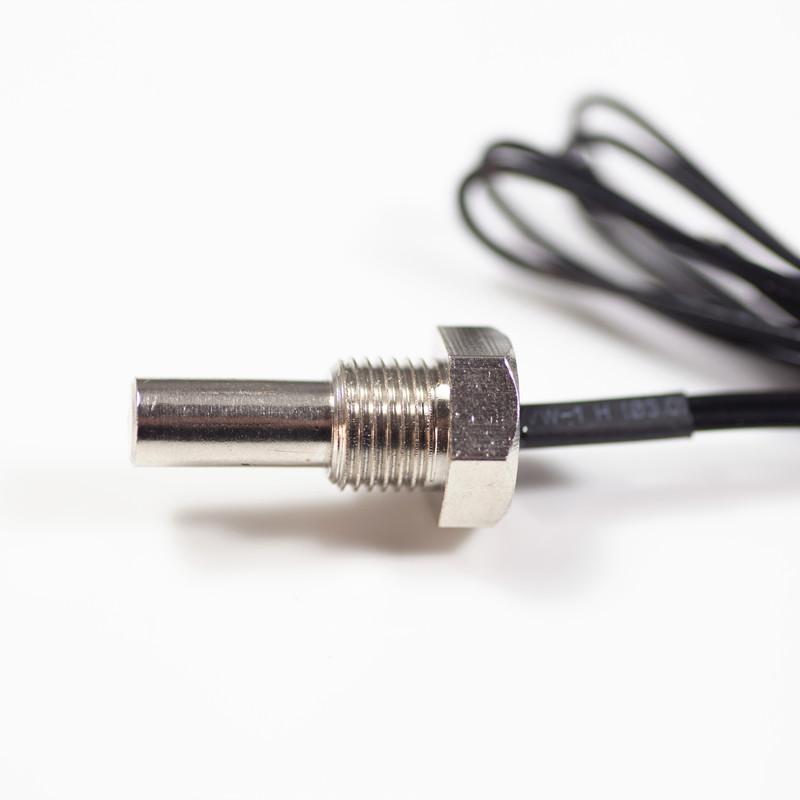

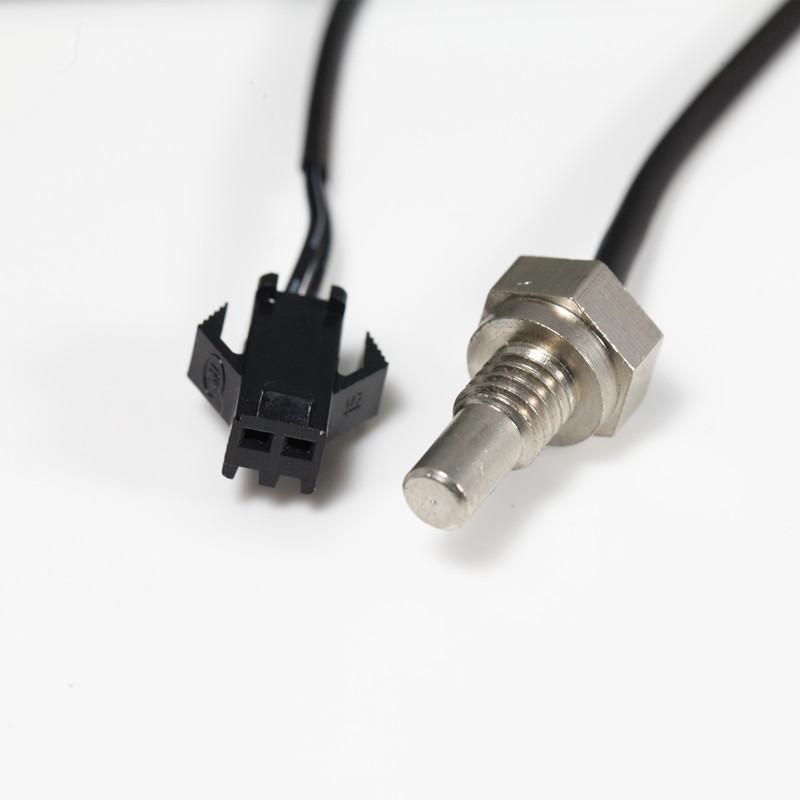

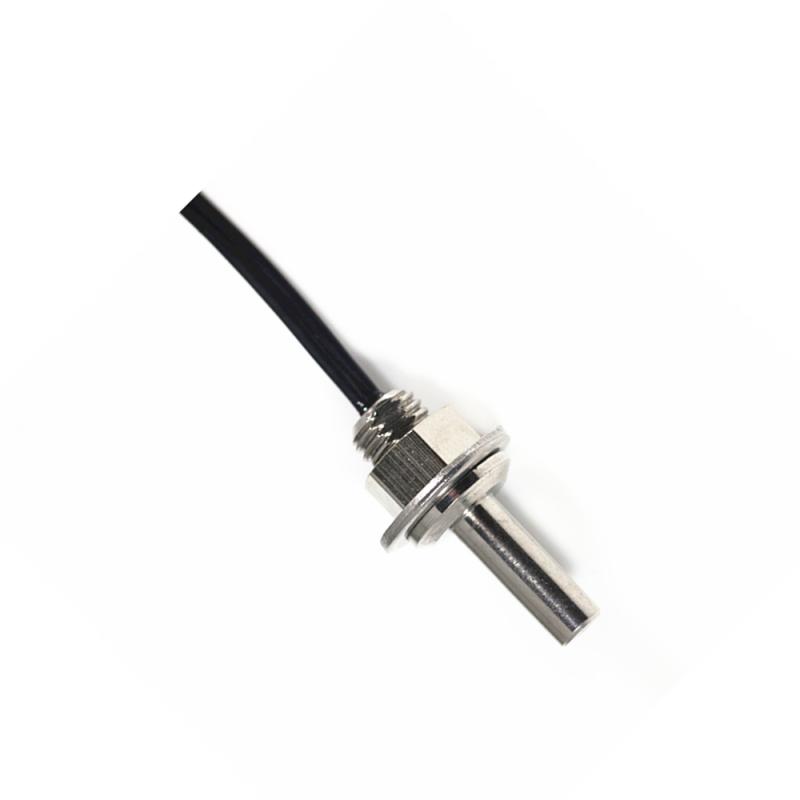

Thread Mount RTD Temperature probe PT100 Pt1000 for Dish Washer

RTD (Resistance Temperature Detector) temperature sensor with high accuracy, good resolution, safe and reliable, convenient use, can be directly measured during the manufacture of all kinds of liquid, vapour and gas medium temperature.

Brand:
Focusens
Item NO.:
MZP-6
Order(MOQ):
3000
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
PT100 /PT500 /PT1000
Working Temperature:
-50- 300’C/ -50-500’C Max
Thermal Time:
10 seconds around (in water)
Hi-Pot:
1250V 1mA 1minute

Inquire now

Parts Selection Guide

New Products

Product Detail

Thread Mount RTD Temperature probe PT100 Pt1000 for Coffee Machine

Pt1000 sensors are suitable for use in applications with 2 wire circuit configurations. While Pt100 sensors are usually designed in a 3 wire configurations to eliminate error interference from circuit itself.

Since the Pt1000 sensor has much greater resistance, the distorting effect of the resistance in the lead wires is less significant overall because it makes up a smaller percentage of the total resistance in the circuit.

Key Parameters

Sensor type	Platinum Resistance, Pt100 or Pt1000 Ohms	Housing	SUS304 or SUS316
Ice point resistance	100Ω or 1000Ω Ohms	Cable material	PVC, Teflon, Silicone, Fiberglass
Fundamental interval (0°C to 100°C)	38.5Ω nominal (100Ω) 385Ω nominal (1000Ω)	Response time	10S (0.63τ)
Measuring range	-50~200°C, -50~350°C, -50~600°C	Insulation Resistance	100Mohm
Tolerance class	DIN Class A or B	European / British Standard	Conforms to IEC 60751:2008 / BS EN 60751:2008

Features

Precise measurement in extreme environments.
Stripped-end leads with other cold-end termination options.
Fast response time.
Ease of application and use.
Engineered to withstand extreme temperatures to +600°C.
High-quality stainless steel probe: waterproof, moisture-proof and anti-rust.
International industrial standards.
Greater engineering efficiency due to linear output.

Typical Applications

Household and commercial coffee machines
Food process Equipments
Dish Washer Machine
High Temperature water treatment Equipments

Advantages

Size and Materials designed for easy and flexible installation
Good stability and coherence, high durability
Standard and reliable temperature resistance character
High Temperature capability of different temperature grade eg.300℃,500℃
Safety dielectric according to different standard: 1250V/ 2000V /3000V 1mA 1minute
Safety for Food contact: ROHS, REACH,FDA, PAH compliant

Typical Sizes

Dimensions (mm)

Part No.

Dimensions

Application

MFP-6A

Feature

l Moisture-proof small time constant

l End-end thread

l Fast respond

Application

l Water boiler

MFP-6B

Feature

l Front-end thread

l SUS Housings

Application

l Water heater

l Coffee machine

l Solar systems

Note : Houseing Material , Size , Cable gauge and size , as well as connectors are enough flexible to meet on request

Standard RT and Tolerance

Welcome contact us for more details or for your sensing solutions

Leave A Message

Any information wanted ? Leave us a message here please.

Subject : Thread Mount RTD Temperature probe PT100 Pt1000 for Dish Washer

Related Tags :

Related Products

Thread Mount DS18B20 Temperature Sensor Probe

The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor.

Silicon PTC Thermistor Temperature Sensor FTY Series

The temperature sensor is a kind of silicon temperature sensor, it have a positive temperature coefficient of resistance (PTC) and suitable for use in measurement and control systems.Tolerances of 0.5% or other special selections are available on request.

Simplify PT RTD Temperature Sensor Tube Protection

Focusens MZP-1 series oven temperature sensor are specifically designed for high temperature household and commercial ovens. The craft and materials enable it workable for high temperature upto 500’C. With flexible design and custom in house capability , we have full ranges of oven temperature meeting different electrical and mounting requirements.

PVC Float Level Switch Sensor with PVC Stem

Stainless Steel Float Switch Sensor for Liquid Level Float liquid level switch is mainly composed of a dry reed tube and a floating ball, the magnetic material in the float, the float moves up and down with the measured liquid level, touching the dry reed tube action and detecting the liquid position.The product has the characteristics of light volume, simple working principle, high reliability and low price;A variety of materials for selection, and suitable for a variety of different liquid environment;Can be directly connected to electronic controllers, relays or contactors;The performance is stable and reliable, the water level can reach +/-1mm; Key Parameters: Typical Applications Advantages: Typical Sizes: Ordering Code: Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions

PTC Thermistor 1K ohmsTemperature Sensor Pottered in Maylar Tube

The temperature sensor is a kind of silicon temperature sensor, it have a positive temperature coefficient of resistance (PTC ) and suitable for use in measurement and control systems. Tolerances of 0.5% or other special selections are available on request.

High Quality PTC Thermistor MZ6 PTC Sensor For Motor Protection

The PTC thermistor mz6 series sensors are temperature sensitive, and positive temperature coefficient thermistors (PTCs) have higher resistance values at higher temperatures. They belong to semiconductor devices and can be used in series with a single or multiple motor protectors.

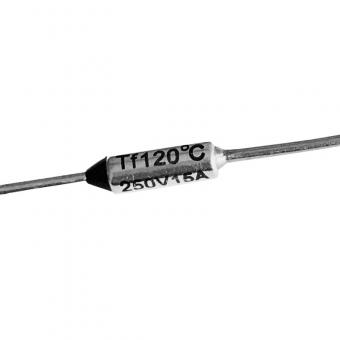

Metal Case Thermal Fuse with Axial Lead
