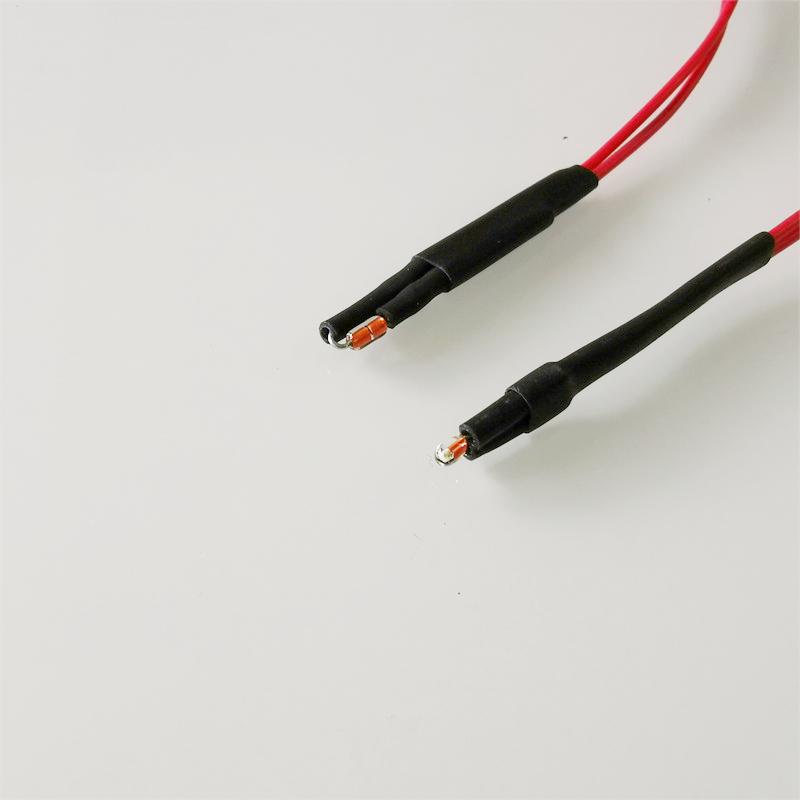

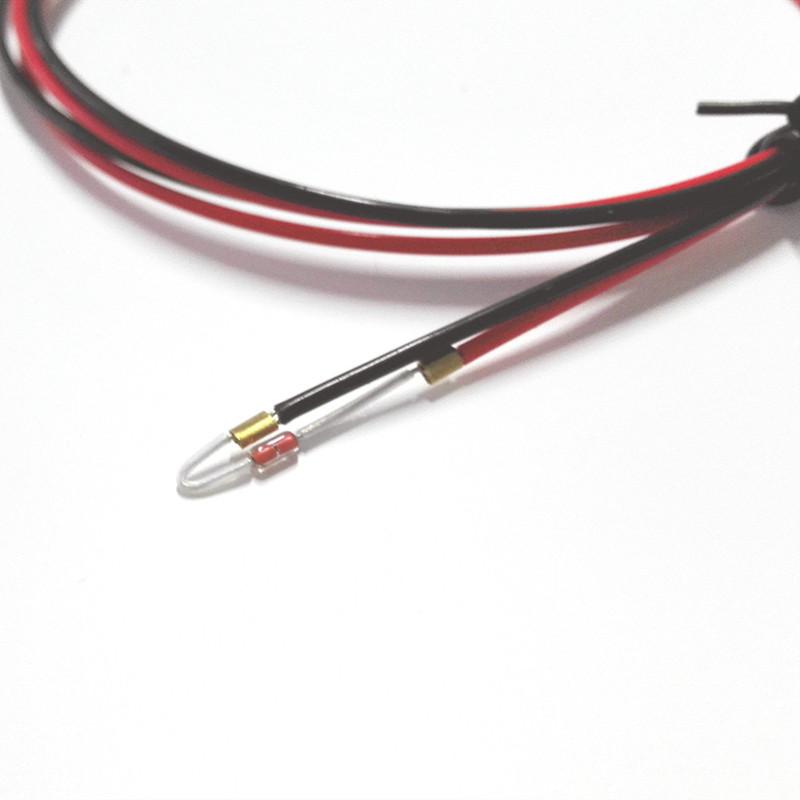

Simple Temperature Sensor Radial Lead Glass NTC Thermistor

MFP-1 Series temperature sensor is simple and economical temperature sensing solution for general conditions that do not have high temperature and humidity.


  • Brand:

    Focusens
  • Item NO.:

    MFP-1
  • Order(MOQ):

    3000
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    NTC Thermistor various R and B value on request
  • Working Temperature:

    -20-120°C
  • Thermal Time:

    Water (0.4m/s) T0.63 ≤ 60s
  • Hi-Pot:

    1500V 1mA 1minute
  • Product Detail

Simple Temperature Sensor Radial Lead Glass NTC Thermistor


MFP-1 series temperature sensor using the NTC thermistor element, according to the different temperature environment or application.through the mature technology, fabricate into a variety of specificationsof the sensor,customers can usedirecty without fabricating.MEP-1 Series Sensor is simply connected to silicon rubber or other high temperature lead wire. NTC protect by silicon rubber tube or Teflon tube.


Key Parameters:

Sensing Component

NTC Thermistor various R and B value on request

Probe Material

Working Temperature

-20-120°C

Cable Material

Glass fiber wire/Teflon wire

Thermal Time

Water (0.4m/s) T0.63 ≤ 60s

Sizes

On request

Dissipation factor

≥ 2.5mW/°C

Connector

On request

Long-term stability

Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)

Hi-Pot

1500V 1mA 1minute

Insulation Resistance

DC500V min.100Mohm


Typical Applications

Rice Cooker

Induction cooker

Ambient tempetc


Ordering Code:

Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
