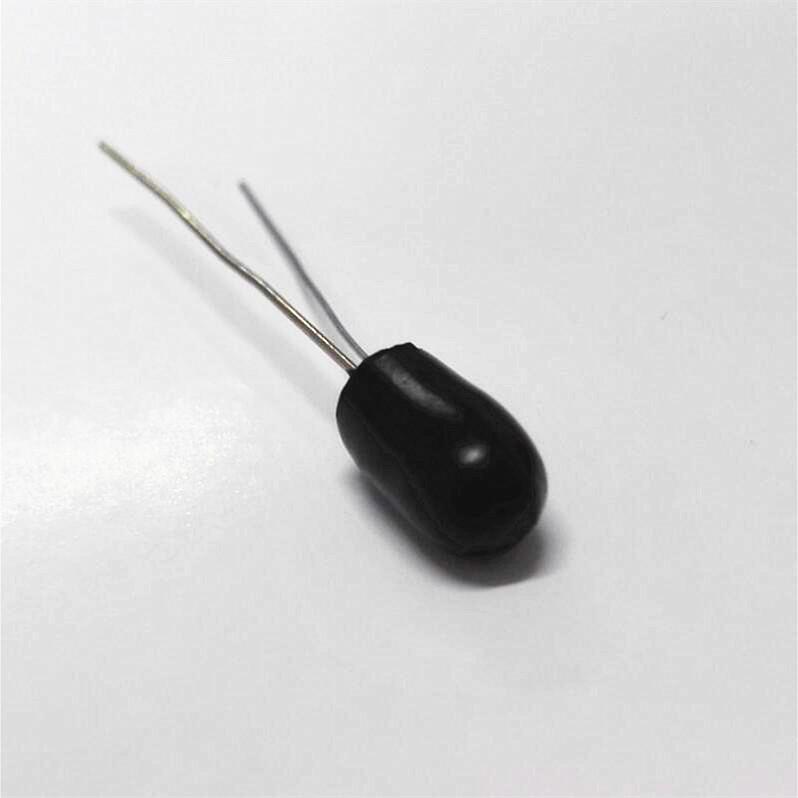

LPTC Linear Silicon PTC Thermistor with Radial Lead

LPTC series silicon PTC thermistor with Radial Lead and epoxy coating. Base on typical RT value in below ordering table, Resistance adjustable accordingly on request.

Brand:
Focusens
Item NO.:
Linear Silicon PTC T
Order(MOQ):
2000 pcs
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
PTC Thermistor
Working Temperature:
-40-200'C
Thermal Time:
5s

Inquire now

Categories

New Products

Product Detail

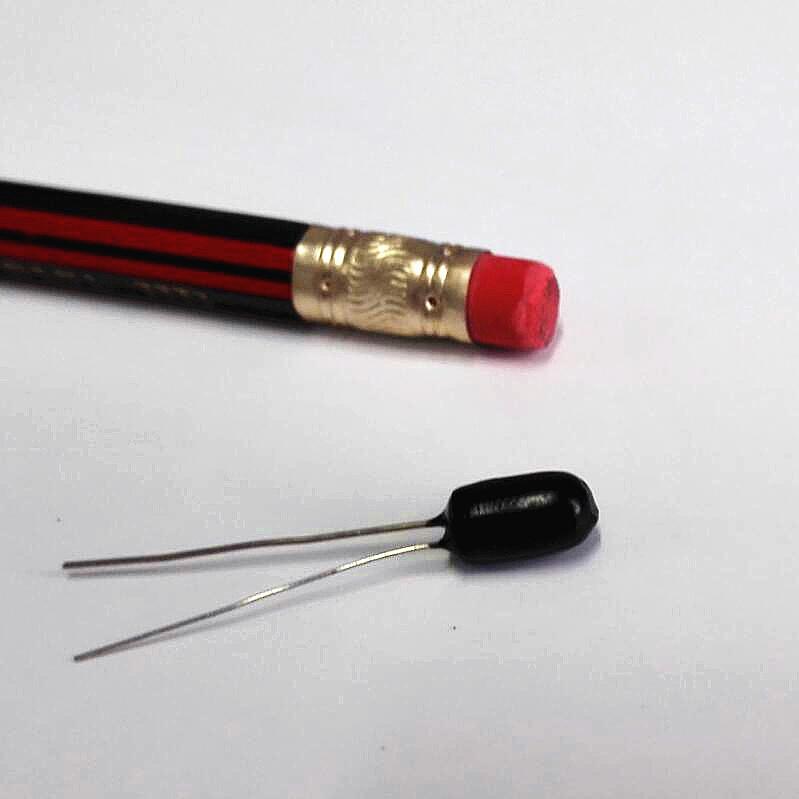

Liner Silicon PTC Thermistor with Radial Lead

LPTC series silicon PTC thermistor with Radial Lead and epoxy coating. Base on typical RT value in below ordering table, Resistance adjustable accordingly on request.

Tolerence can be +1%, +2%、-2%、 +3%.-3%,+5%、t -5%.

Key Parameters:

Item	Symbol	Test Condition	Performance	Unit
Rated resistance	R25	+25℃±0.05	2±5%	Kohm
Thermal Time	τ	in still air	≤7	Sec
Dissipation factor	δ	in still air	≥1.5	mW/°C
Insulation resistance	Ri	DC100V	≥ 100	Mohm
Max Working current	lmax		≥ 8	mA
Rated Working current	lN		2	mA
Rated power	Pmax	Ambient Temp.+25°C	≥50	mW
Operating Temp. Range	Topr	-	-40 to +250	°C
Storage time	Tmin	Ambient Temp.+25°C Relative humidity <60%	2	Years

Typical Applications:

Temperature measuring and control for auto

Household apparatus

For micro motor

Temperature measuring and control for medical

Ordering Code:

Part Number	Resistance (Ω)	Tolerance (%)	Operating Temperature	Corresponding models
Part Number	Resistance (Ω)	Tolerance (%)	Operating Temperature	Corresponding models
LPTC83-110	R25=1000	±1%	-40℃～150℃	KTY83-1KΩseries
LPTC83-120	R25=1000	±2%
LPTC83-121	R25=1000	-2%
LPTC83-122	R25=1000	+2%
LPTC83-150	R25=1000	±5%
LPTC83-151	R25=1000	-5%
LPTC83-152	R25=1000	+5%
LPTC81-110	R25=1000	±1%	-55℃～+150℃	KTY81-1KΩ series
LPTC81-120	R25=1000	±2%
LPTC81-121	R25=1000	-2%
LPTC81-122	R25=1000	+2%
LPTC81-150	R25=1000	±5%
LPTC81-151	R25=1000	-5%
LPTC81-152	R25=1000	+5%
LPTC81-210	R25=2000	±1%	-55℃～+150℃	KTY81-2KΩ series
LPTC81-220	R25=2000	±2%
LPTC81-221	R25=2000	-2%
LPTC81-222	R25=2000	+2
LPTC81-250	R25=2000	±5%
LPTC81-251	R25=2000	-5%
LPTC81-252	R25=2000	+5%
LPTC84-130	R100=1000	±3%	-40℃～+180℃	KTY84 series
LPTC84-150	R100=1000	±5%
LPTC84-151	R100=1000	-5%
LPTC84-152	R100=1000	+5%
LPTC-200	R25=200	±3%；+5%、-5%	-40℃～+160℃
LPTC-500	R25=500	±3%；+5%、-5%	-40℃～+160℃
LPTC-1200	R25=1200	±3%；+5%、-5%	-50℃～+125℃
LPTC-1600	R25=1600	±3%；+5%、-5%
LPTC-3000	R25=3000	±3%
LPTC-4000	R25=4050	±3%

Leave A Message

Any information wanted ? Leave us a message here please.

Subject : LPTC Linear Silicon PTC Thermistor with Radial Lead

Related Tags :

Related Products

LPTC Linear Silicon PTC Thermistor Packed in Glass DO35

MF58 DO35 diode package NTC thermistor axial or radial leads for all kinds of vehicle electrical temperature sensor probes

PVC Float Level Switch Sensor with PVC Stem

Stainless Steel Float Switch Sensor for Liquid Level Float liquid level switch is mainly composed of a dry reed tube and a floating ball, the magnetic material in the float, the float moves up and down with the measured liquid level, touching the dry reed tube action and detecting the liquid position.The product has the characteristics of light volume, simple working principle, high reliability and low price;A variety of materials for selection, and suitable for a variety of different liquid environment;Can be directly connected to electronic controllers, relays or contactors;The performance is stable and reliable, the water level can reach +/-1mm; Key Parameters: Typical Applications Advantages: Typical Sizes: Ordering Code: Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions

Cable Assembly for EV Car

Cable Assembly for Household Electricity

Thermal Resistance Pt100 Class B Platinum Temperature Sensor

RTD (Resistance Temperature Detector) temperature sensor with high accuracy, good resolution, safe and reliable, convenient use, can be directly measured during the manufacture of all kinds of liquid, vapour and gas medium temperature.

FOCUSENS Magnet Level Switch Reed Switch Normally Open Magnetic Door Contacts

This sensor is essentially a reed switch, encased in an ABS plastic shell. Normally the reed is 'open' (no connection between the two wires). The other half is a magnet. They're often used to detect when a door or drawer is open, which is why they have mounting tabs and screws.

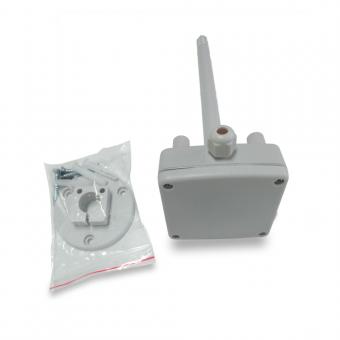

FHT10-V2 series Portable Temperature Humidity Transmitter 4-20mA Output
