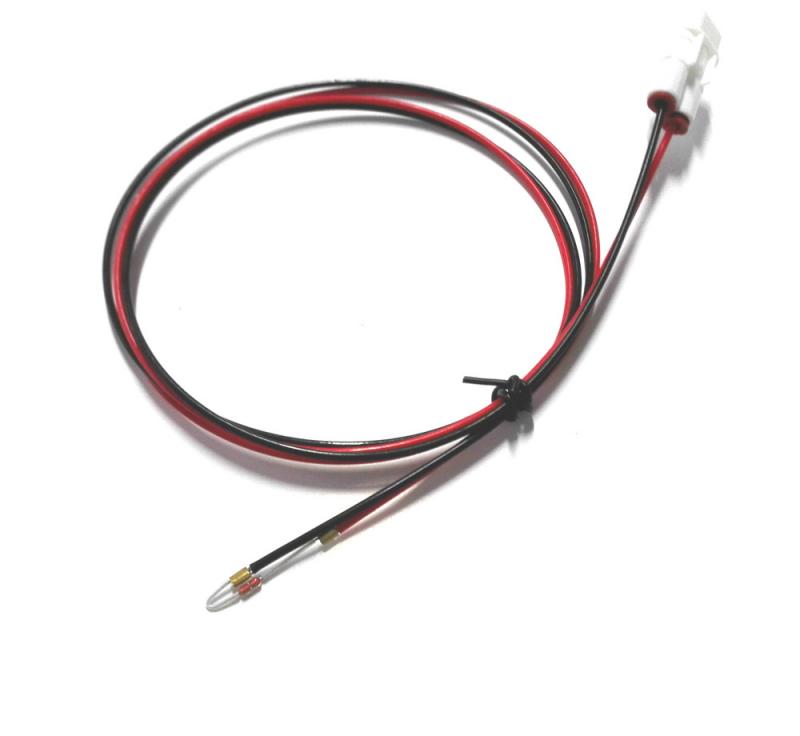

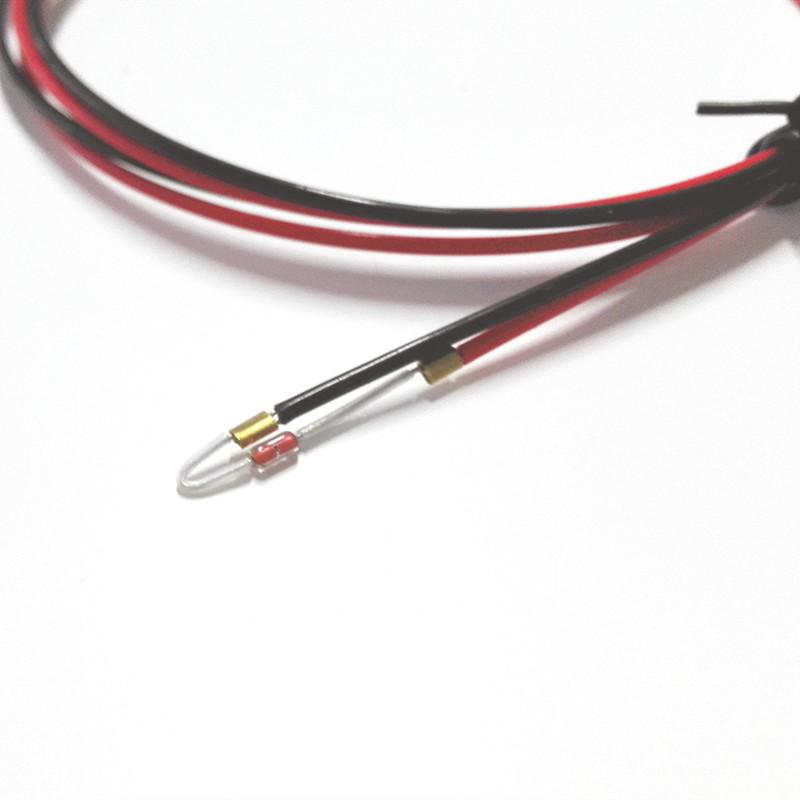

Simple Temperature Sensor Assembly with Silicon Thermistor PTC

KTY Series temperature sensor is simple and economical temperature sensing solution for general conditions that do not have high temperature and humidity.

Brand:
Focusens
Item NO.:
KTY Series
Order(MOQ):
3000
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
PTC Thermistor various R and B value on request
Working Temperature:
-40℃～180℃
Thermal Time:
10
Hi-Pot:

Inquire now

Categories

New Products

Product Detail

Simple Temperature Sensor Assembly with Silicon Thermistor PTC

Part Number 型号	Resistance (Ω) 额定电阻值 (Ω)	Tolerance 允许偏差 (%)	Operating Temperature 工作温度（℃）	Corresponding to market generic models 对应市场通用型号
Part Number 型号	Resistance (Ω) 额定电阻值 (Ω)	Tolerance 允许偏差 (%)	Operating Temperature 工作温度（℃）	Corresponding to market generic models 对应市场通用型号
LPTC83-110	R25=1000	±1%	-40℃～150℃	KTY83-1KΩseries
LPTC83-120	R25=1000	±2%
LPTC83-121	R25=1000	-2%
LPTC83-122	R25=1000	+2%
LPTC83-150	R25=1000	±5%
LPTC83-151	R25=1000	-5%
LPTC83-152	R25=1000	+5%
LPTC81-110	R25=1000	±1%	-55℃～+150℃	KTY81-1KΩ series
LPTC81-120	R25=1000	±2%
LPTC81-121	R25=1000	-2%
LPTC81-122	R25=1000	+2%
LPTC81-150	R25=1000	±5%
LPTC81-151	R25=1000	-5%
LPTC81-152	R25=1000	+5%
LPTC81-210	R25=2000	±1%	-55℃～+150℃	KTY81-2KΩ series
LPTC81-220	R25=2000	±2%
LPTC81-221	R25=2000	-2%
LPTC81-222	R25=2000	+2
LPTC81-250	R25=2000	±5%
LPTC81-251	R25=2000	-5%
LPTC81-252	R25=2000	+5%
LPTC84-130	R100=1000	±3%	-40℃～+180℃	KTY84 series
LPTC84-150	R100=1000	±5%
LPTC84-151	R100=1000	-5%
LPTC84-152	R100=1000	+5%
LPTC-200	R25=200	±3%；+5%、-5%	-40℃～+160℃
LPTC-500	R25=500	±3%；+5%、-5%	-40℃～+160℃
LPTC-1200	R25=1200	±3%；+5%、-5%	-50℃～+125℃
LPTC-1600	R25=1600	±3%；+5%、-5%
LPTC-3000	R25=3000	±3%
LPTC-4000	R25=4050	±3%
