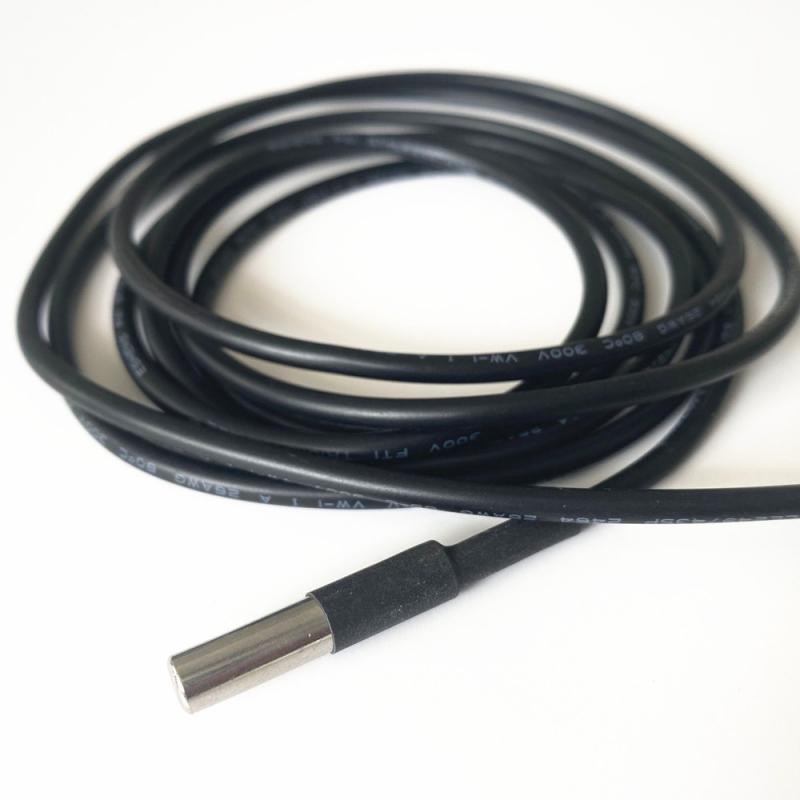

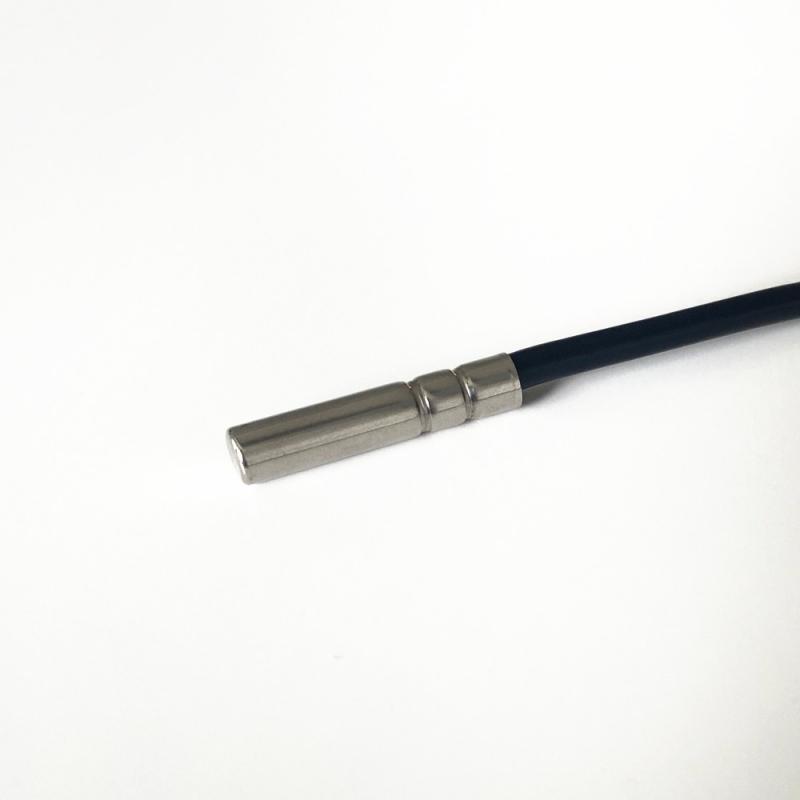

MFT Waterproof Temperature Sensor with Rolling Groove House

MFT Series temperature sensor made with tubular SUS304 SUS316 house and have round jacket cable. Two rolling grooves was made to help the contact between house and cable water tight enough, varisous probe size and different working temperature range available on request.

  • Brand:

    Focusens
  • Item NO.:

    MFT
  • Order(MOQ):

    3000
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    Platinum Resistance, Pt100 or Pt1000 Ohms
  • Working Temperature:

    -50~200°C, -50~350°C, -50~600°C
  • Thermal Time:

    10S (0.63τ)
  • Hi-Pot:

    1250V 1mA 1minute
  • Product Detail

High Temperature RTD Pt1000 Probe Temperature Sensor


Pt1000 sensors are suitable for use in applications with 2 wire circuit configurations.

Since the Pt1000 sensor has much greater resistance, the distorting effect of the resistance in the lead wires is less significant overall because it makes up a smaller percentage of the total resistance in the circuit.



Key Parameters


Sensor type

Platinum Resistance, Pt100 or Pt1000 Ohms

Housing SUS304 or SUS316

Ice point resistance

100Ω or 1000Ω Ohms

Cable material

PVC, Teflon, Silicone, Fiberglass

Fundamental interval (0°C to 100°C)

38.5Ω nominal (100Ω)
385Ω nominal (1000Ω)

Response time

10S (0.63τ)

Measuring range

-50~200°C, -50~350°C, -50~600°C

Insulation Resistance

100Mohm

Tolerance class

DIN Class A or B

European / British Standard

Conforms to IEC 60751:2008 / BS EN 60751:2008



Features


  • Precise measurement in extreme environments.
  • Stripped-end leads with other cold-end termination options.
  • Fast response time.
  • Ease of application and use.
  • Engineered to withstand extreme temperatures to +600°C.
  • High-quality stainless steel probe: waterproof, moisture-proof and anti-rust.
  • International industrial standards.
  • Greater engineering efficiency due to linear output.



Typical Applications


  • Household and commercial Ovens
  • Food process Equipments
  • High Temperature material treatment Equipments



Advantages


  • Size and Materials designed for easy and flexible installation
  • Good stability and coherence, high durability
  • Standard and reliable temperature resistance character
  • High Temperature capability of different temperature grade eg.300℃,500℃
  • Safety dielectric according to different standard: 1250V/ 2000V /3000V 1mA 1minute
  • Safety for Food contact: ROHS, REACH,FDA, PAH compliant



Typical Sizes




Standard RT and Tolerance


Welcome contact us for more details or for your sensing solutions
