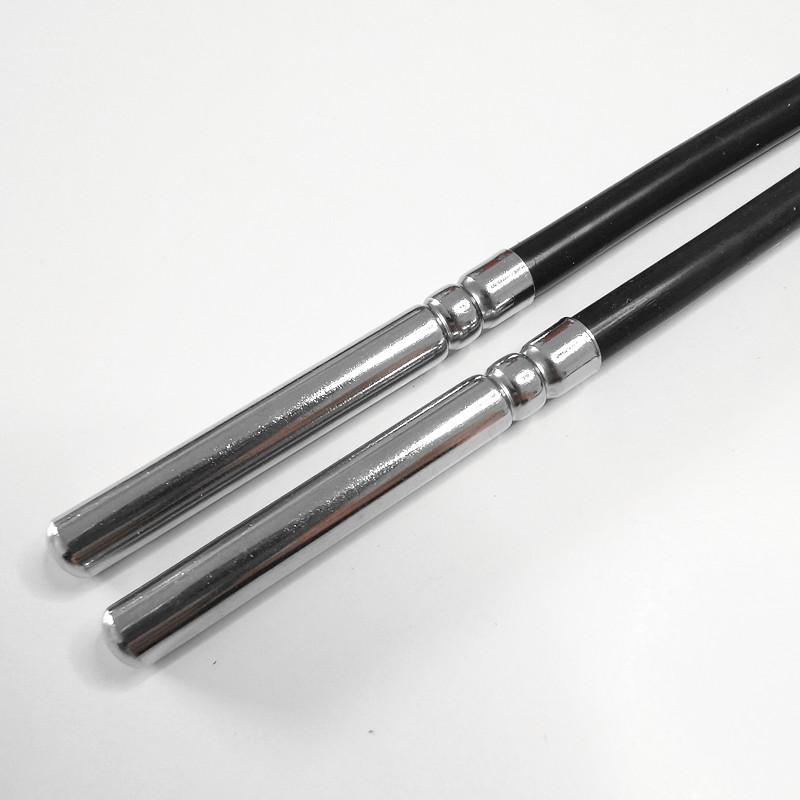

Silicon PTC Thermistor Temperature Sensor FTY Series

The temperature sensor is a kind of silicon temperature sensor, it have a positive temperature coefficient of resistance (PTC) and suitable for use in measurement and control systems.Tolerances of 0.5% or other special selections are available on request.

Brand:
Focusens
Item NO.:
FTY Series
Order(MOQ):
3000
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
silicon sensor element
Working Temperature:
-40°C to +150°C
Thermal Time:
Within 60s in still liquid
Hi-Pot:

Inquire now

Categories

New Products

Product Detail

Silicon PTC Thermistor Temperature Sensor FTY Series

Key Parameters:

Sensing Component	silicon sensor element	Probe Material	SUS304 /SUS316/Cu/Ni
Working Temperature	-40°C to +150°C	Cable Material	Teflon/ Fiber Glass/PVC
Thermal Time	Within 60s in still liquid	Sizes	On request
Max.Contanstant current @25°C	10mA	Connector	On request
Rated working current @25°C	5mA
Rated Power: PDIS	50mW)

Typical Applications

Temperature measurement

Control system

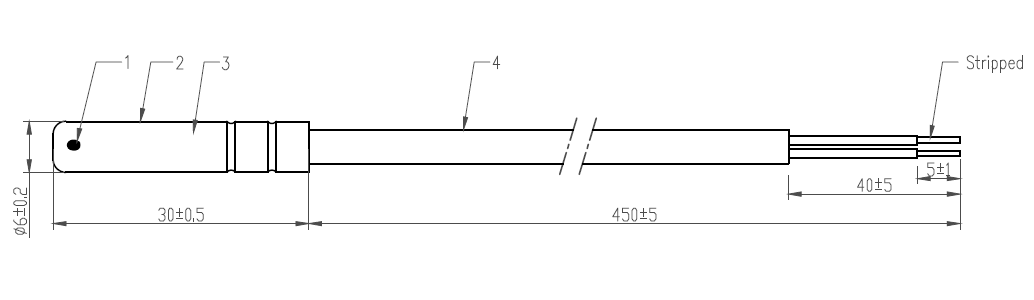

Typical Sizes:

LPTC parameters Selection List:

Part Number	Resistance (Ω)	Tolerance (%)	Operating Temperature （℃）	Corresponding to market general models
Part Number	Resistance (Ω)	Tolerance (%)	Operating Temperature （℃）	Corresponding to market general models
LPTC83-110	R25=1000	±1%	-40℃～150℃	KTY83-1KΩ series
LPTC83-120	R25=1000	±2%
LPTC83-121	R25=1000	-2%
LPTC83-122	R25=1000	+2%
LPTC83-150	R25=1000	±5%
LPTC83-151	R25=1000	-5%
LPTC83-152	R25=1000	+5%
LPTC81-110	R25=1000	±1%	-55℃～+150℃	KTY81-1KΩ series
LPTC81-120	R25=1000	±2%
LPTC81-121	R25=1000	-2%
LPTC81-122	R25=1000	+2%
LPTC81-150	R25=1000	±5%
LPTC81-151	R25=1000	-5%
LPTC81-152	R25=1000	+5%
LPTC81-210	R25=2000	±1%	-55℃～+150℃	KTY81-2KΩ series
LPTC81-220	R25=2000	±2%
LPTC81-221	R25=2000	-2%
LPTC81-222	R25=2000	+2
LPTC81-250	R25=2000	±5%
LPTC81-251	R25=2000	-5%
LPTC81-252	R25=2000	+5%
LPTC84-130	R100=1000	±3%	-40℃～+180℃	KTY84 series
LPTC84-150	R100=1000	±5%
LPTC84-151	R100=1000	-5%
LPTC84-152	R100=1000	+5%
LPTC-200	R25=200	±3%；+5%、-5%	-40℃～+160℃
LPTC-500	R25=500	±3%；+5%、-5%	-40℃～+160℃
LPTC-1200	R25=1200	±3%；+5%、-5%	-50℃～+125℃
LPTC-1600	R25=1600	±3%；+5%、-5%
LPTC-3000	R25=3000	±3%
LPTC-4000	R25=4050	±3%

Ordering Code:

Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
