MF5A-5 Series Insulation Leads NTC Thermistor 10K or 8K 3988 for autombile seat heating

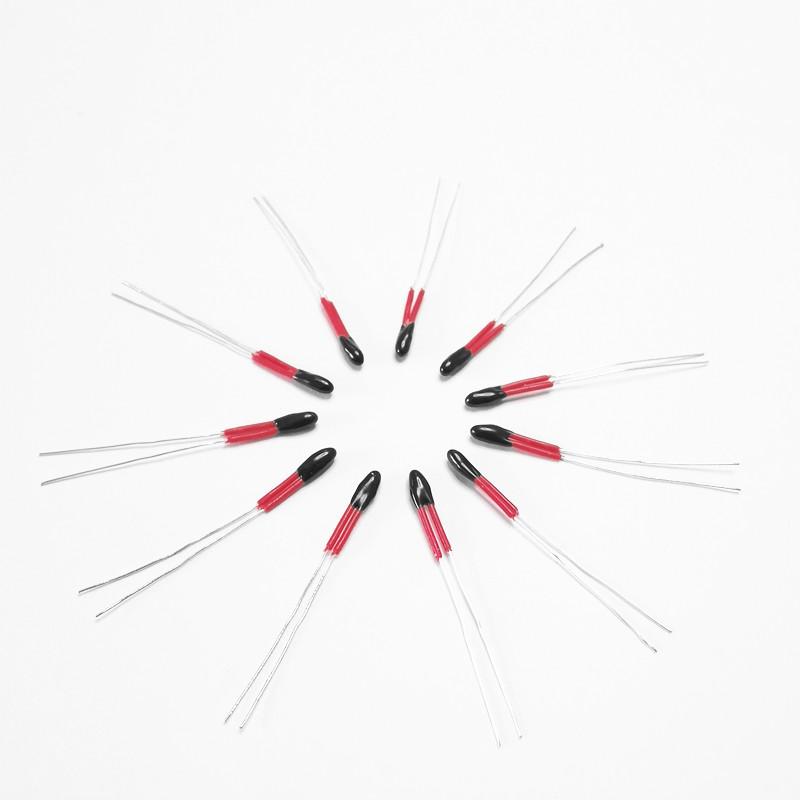

MF5A-5 Series miniture NTC thermistor is made with epoxy resin coating ,and insulation lead wire like PVC wire, teflon or Kynar wire. The values 10K ohm B25/100:3988 and 8K ohm B25/100:3988 is typical parameters for auto.seat or steering wheel heating system due to it special character of miniture bead, wide working temperature range, as well as its advantage of high steability and realibility .

Brand:
Focusens
Item NO.:
MF5A-5
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
1-2 weeks
Sensing Component:
NTC
Working Temperature:
-55°C to +125°C
Thermal Time:
≤ 10s

Inquire now

Parts Selection Guide

New Products

Product Detail

Typical Application :

Auto.seat heating mat

Auto.steering wheel heating mat

Auto.steering wheel heating jacket

Food or drinks heating pad

Typically Used Value:

R25'C: 10K +/1%, B25/100: 3988

R25'C: 10K +/3%, B25/100: 3988

R25'C: 8K +/1%, B25/100: 3988

R25'C: 8K +/3%, B25/100: 3988

Technical Data

Item	Temperature
Temperature range	-55°C to +125°C
Response time	Water (0.4m/s) T0.63 ≤ 7s
Dissipation factor	≥ 2mW/°C
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Dielectric Strength	1000VAC
Insulation Resistance	≥200MΩ 500VDC

Dimensions：

MF52C

A. High temperature Teflon wire

Code	D _MAX	L1_MAX	L2_MIN	L 3 ±1	d± 0.05	F ± 0.05
C1	3	5	decided by user	5	0.25	2.0
C2	4	5.5	decided by user	5	0.32	2.5

MF52D

B. PVC wire

Code	D _MAX	L1_MAX	L2_MIN	L 3 ±1	d± 0.05	F ± 0.05
D1	3	5	decided by user	5	0.26	2.0
D2	4	5.5	decided by user	5	0.26	2.5

Leave A Message

Any information wanted ? Leave us a message here please.

Subject : MF5A-5 Series Insulation Leads NTC Thermistor 10K or 8K 3988 for autombile seat heating

Related Tags :

Related Products

MF5A-5 Miniture NTC Thermistor 10K ohms with PTFE PFA Insulation Leads

MF5A-5 Series miniture NTC thermistor is made with epoxy resin coating ,and insulation lead wire like PVC wire, teflon or Kynar wire. It has advantages of miniture size, high precision and fast response.

MF5A-6 Series Thin Film Insulation NTC Thermistor

MF5A-6 series NTC thermistor is packed by polyimide insulation film, its flat and thin film packing enable it works for flat surface temperature sensing with fast response time and especially suitable for very compact mounting room. It is widely used for OA devices like printers, for battery pack of EV car , and many flat surface temperature sensing applications.

PVC Float Level Switch Sensor with PVC Stem

Stainless Steel Float Switch Sensor for Liquid Level Float liquid level switch is mainly composed of a dry reed tube and a floating ball, the magnetic material in the float, the float moves up and down with the measured liquid level, touching the dry reed tube action and detecting the liquid position.The product has the characteristics of light volume, simple working principle, high reliability and low price;A variety of materials for selection, and suitable for a variety of different liquid environment;Can be directly connected to electronic controllers, relays or contactors;The performance is stable and reliable, the water level can reach +/-1mm; Key Parameters: Typical Applications Advantages: Typical Sizes: Ordering Code: Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions

Motor protector MZ6 Duplex PTC Thermistor mini-version

MZ6 PTC Thermistor mini-version for motor windings . Single, Duplex, Triplex, Sextuple thermistors of both standard and customized versions. Focusens MZ6 PTC motor protector was made as per DIN 44081 and 44082, they provide reliable and fast response thermal protection for motor system.

K Type Thermocouple Sensor for high Temperature

K type Thermcouple for Kitchen Oven

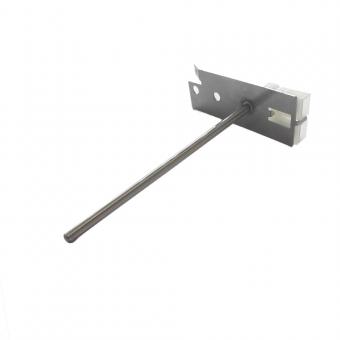

Simplify PT RTD Temperature Sensor Tube Protection
