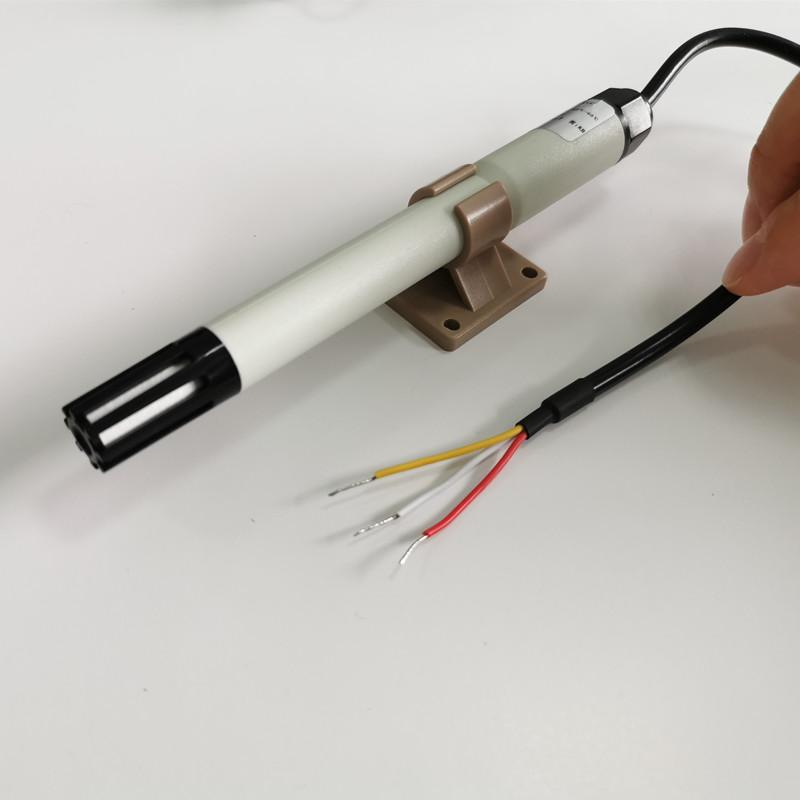

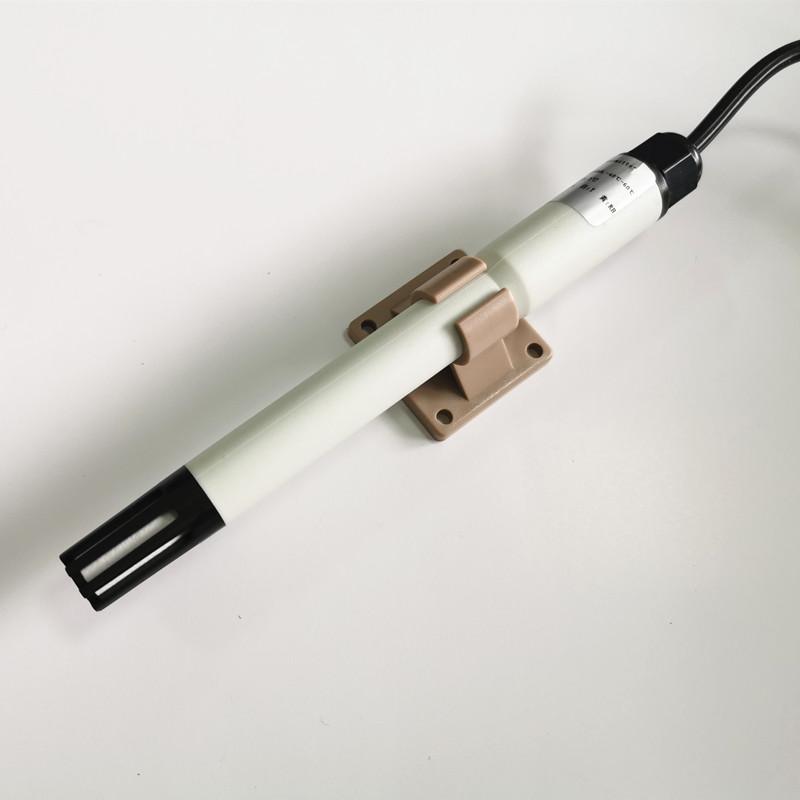

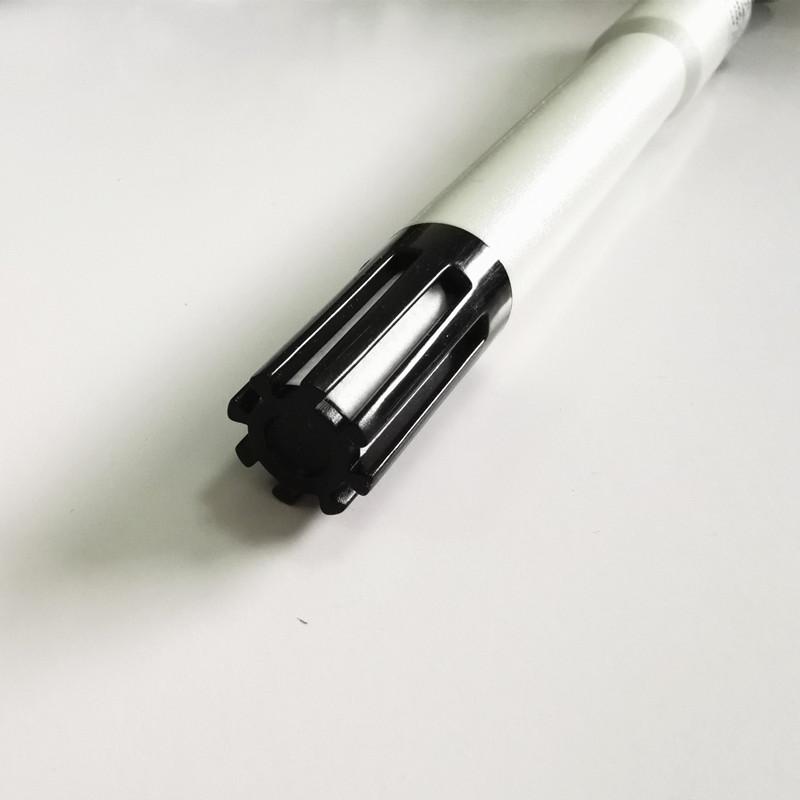

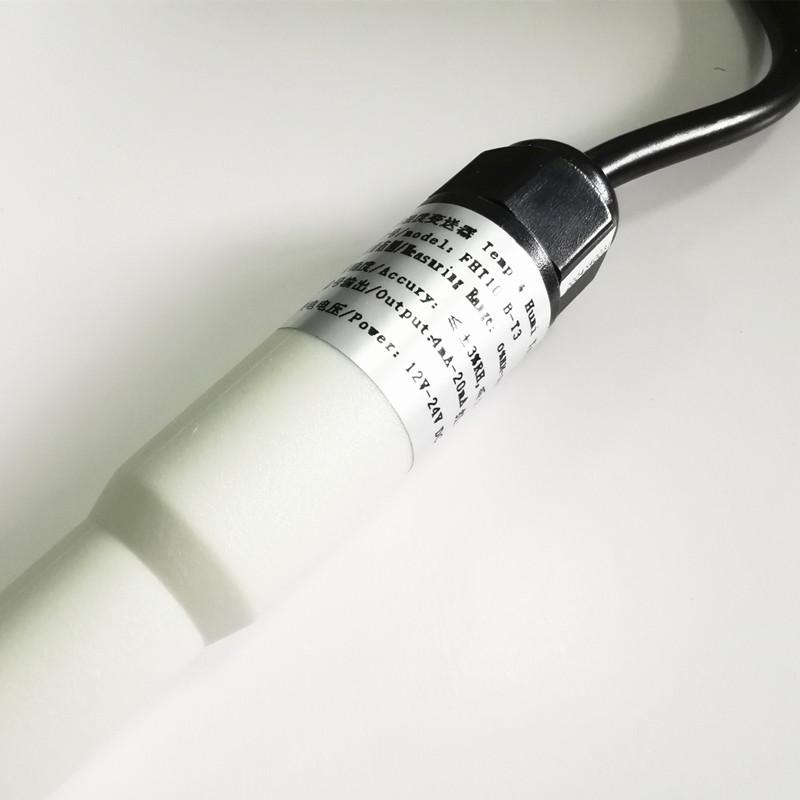

FHT10-V2 series Portable Temperature Humidity Transmitter Voltage output

Focusens FHT10 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature.

The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation.

The FHT10 use the reliable humidity / temperature Sensirion sensor element SHT21 with excellent long term stability and resistance against pollutants. In combination with a long calibration experience, the FHT10 provides a measurement accuracy of ±3%RH and is available for wall-mounted with current, voltage output.

Item NO.:
FHT10-V2
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
Sensirion SHT21
Working Temperature:
-20--+80°C
Thermal Time:
10

Inquire now

Categories

New Products

Product Detail

FHT10-V2 series Portable Temperature Humidity Transmitter Voltage output

Focusens FHT10 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature.

The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation.

Typical Applications

Features

Incubators

Fermentation chambers

Environmental monitoring

Industrial Process control

Humidity / temperature data logging

Small size product

Full interchangeability

Wide working range, high accuracy

High reliability and long term stability

Technical Data

Parameter	Temperature	Relative Humidity
Measurement Range	0...+50°C -0...+60°C -20...+80°C	0...100% RH
Accuracy at 25°C	±0.3°C	±3% RH (20...80% RH)
Stability	＜0.1°C / year	＜0.5%RH / year
Response	＜15s	＜12s(63%)
power supply	2-wire: 12...2V 3-wire: 15...2V
Output	2-wire: ...20mA 3-wire: ...20mA / 0...1/5/10V
Load	2-wire: (VDD - 7V) / 0.02A 3-wire: Current mode less than 500Ω, Voltage mode greater than 10kΩ
Protection grade	IP65

Note:

Please don’t used in extreme conditions or exposure to solvent vapors

Dimensions (mm)

Connection Diagram

Ordering Guide

SERIES

OUTPUT

T-SCALING

FHT10

(A) 2-wire current mode ...20mA

(B) 3-wire current mode ...20mA

(D) 3-wire voltage mode 0...10V

(E) 3-wire voltage mode 0...5V

(F) 3-wire voltage mode 0...1V

(T1) 0...+50°C

(T2) -0...+60°C

(T3) -20...+80°C

Default wire length is 1.5m, AWG2.
