MFL series temperature sensor using the NTC resistance element, according to the different temperature environment or application, through the mature technology, fabricate into a variety of specifications of the sensor,customers can usedirectly without fabricating.
Brand:
FocusensItem NO.:
MFLOrder(MOQ):
3000Product Origin:
Hefei,Anhui,ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time:
4 weeksSensing Component:
NTC Thermistor various R and B value on requestWorking Temperature:
-20°C to +110°CThermal Time:
Water (0.4m/s) T0.63 ≤ 30sHi-Pot:

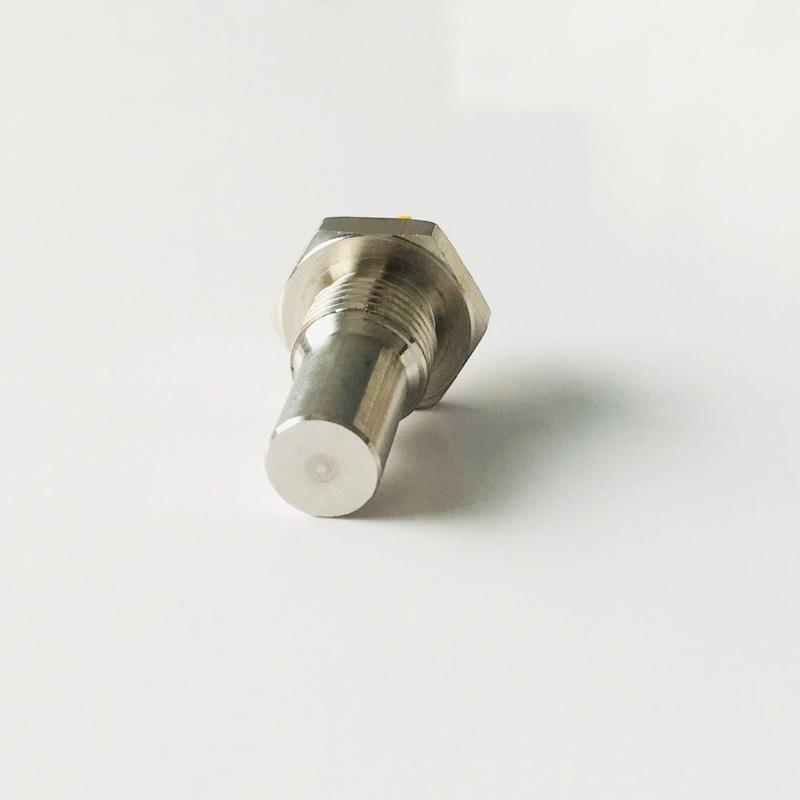

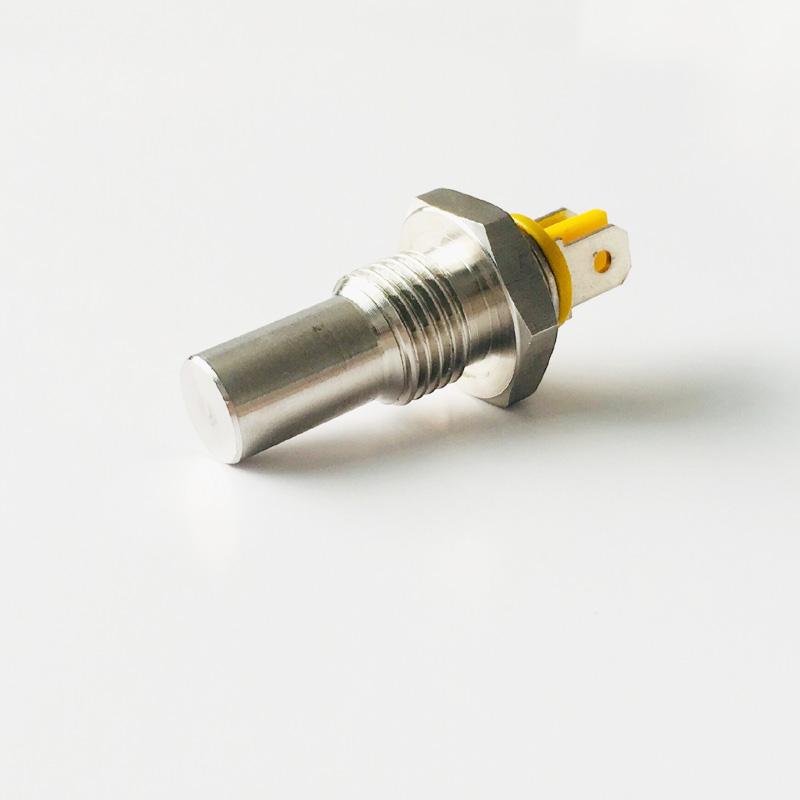

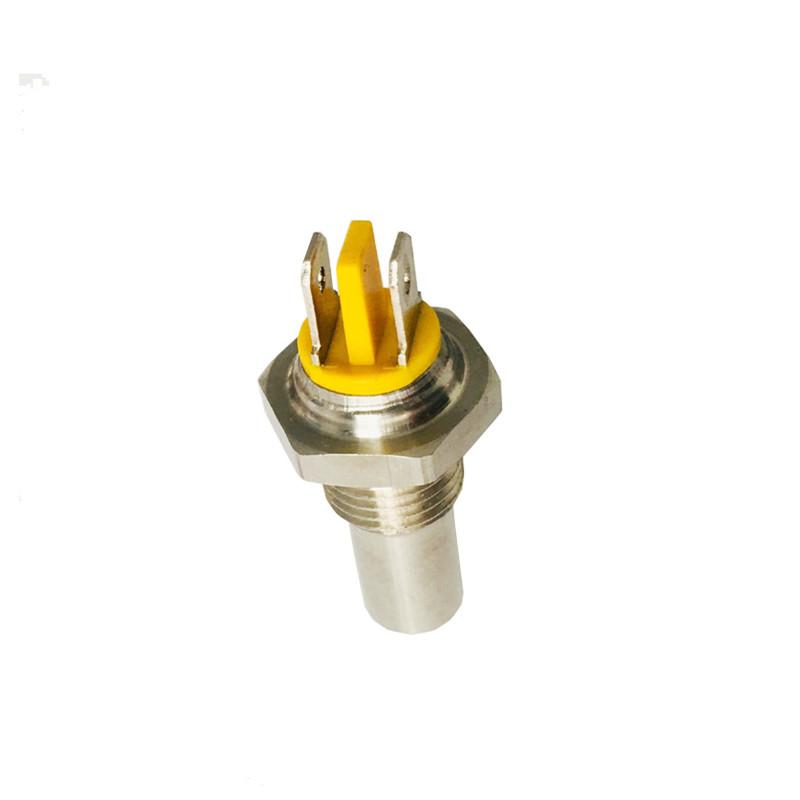

1500V 1mA 1minuteThermistor Temperature Sensor for Coffee Machine MFL Series
MFL series temperature sensor using the NTC resistance element, according to the different temperature environment or application, through the mature technology, fabricate into a variety of specifications of the sensor,customers can usedirectly without fabricating.
Key Parameters:
Sensing Component |
NTC Thermistor various R and B value on request |
Probe Material |
SUS |
Working Temperature |
-20°C to +110°C |
Cable Material |
PVC/Teflon wire |
Thermal Time |
Water (0.4m/s) T0.63 ≤ 30s |
Sizes |
On request |
Dissipation factor |
≤100 mW/°C |
Connector |
On request |
Long-term stability |
Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C) |
|
|
Hi-Pot |
1500V 1mA 1minute |
|
|
Insulation Resistance |
DC500V min.100Mohm |
|
|
Typical Applications
Coffee Machine

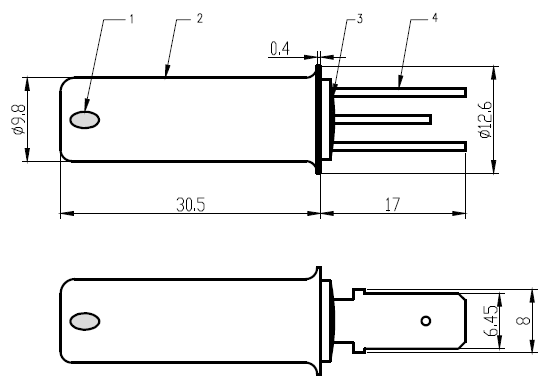

Typical Sizes:
Ordering Code:
Flexible Custom Design &Development Welcomed. Contact us now for more details or for your sensing solutions
