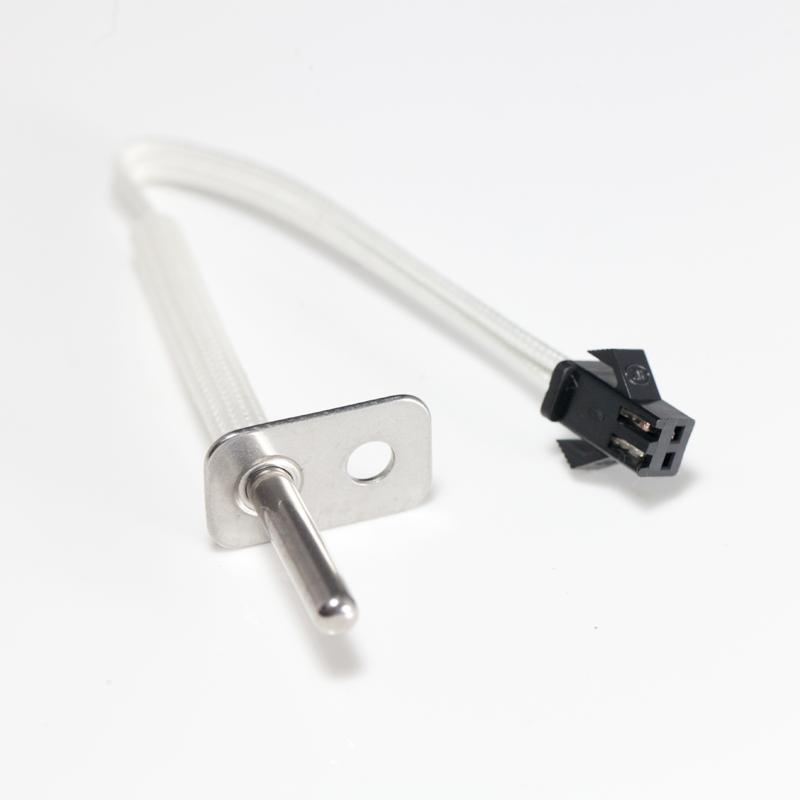

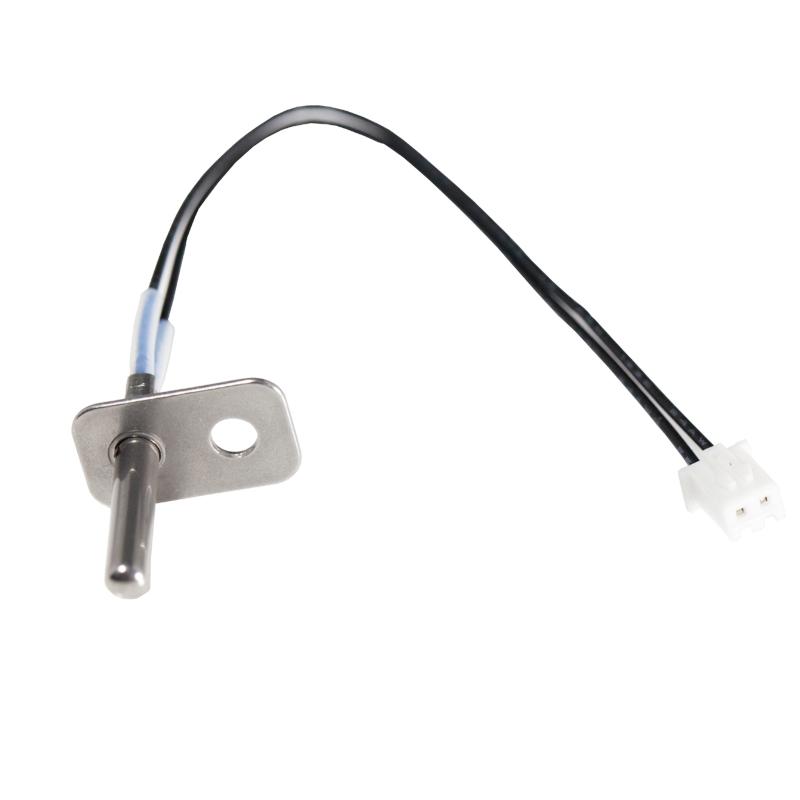

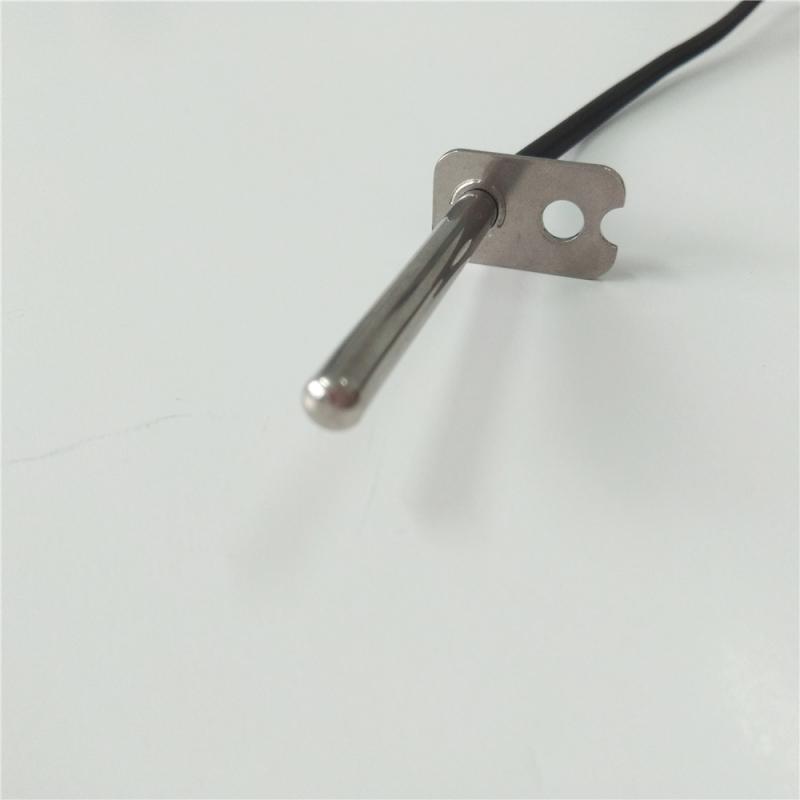

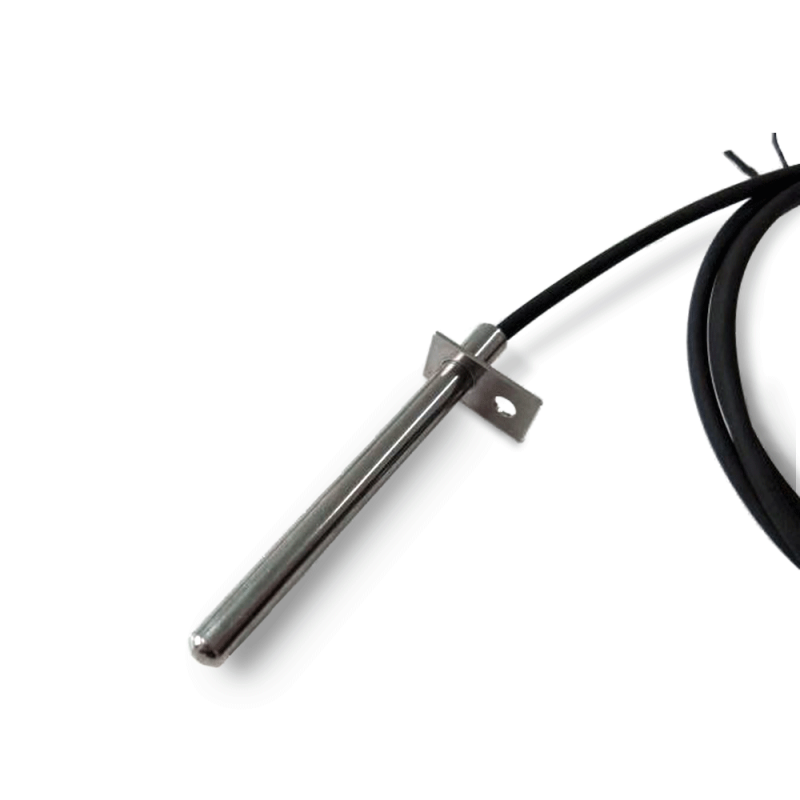

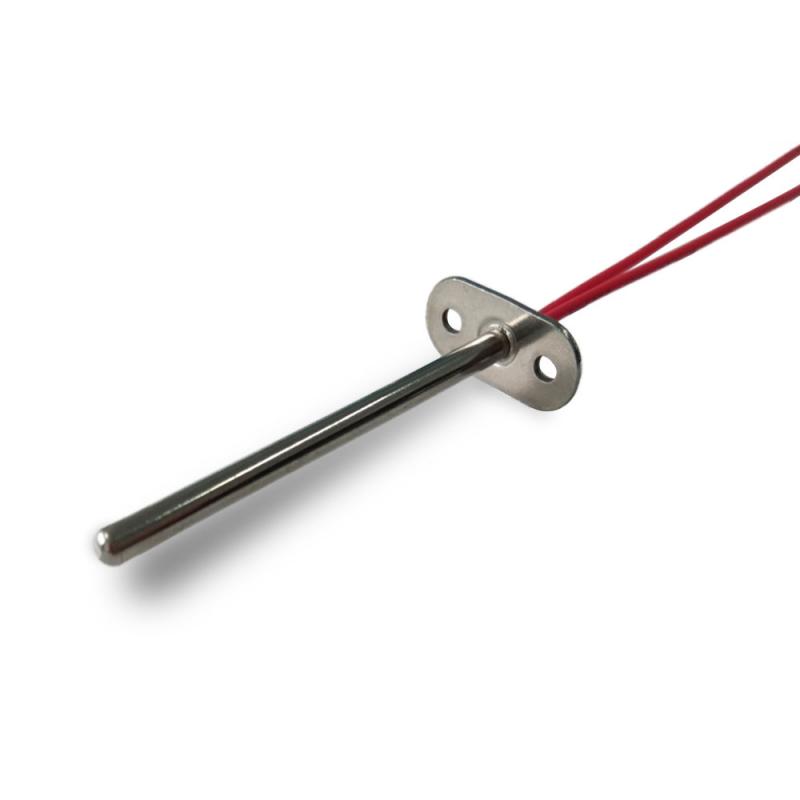

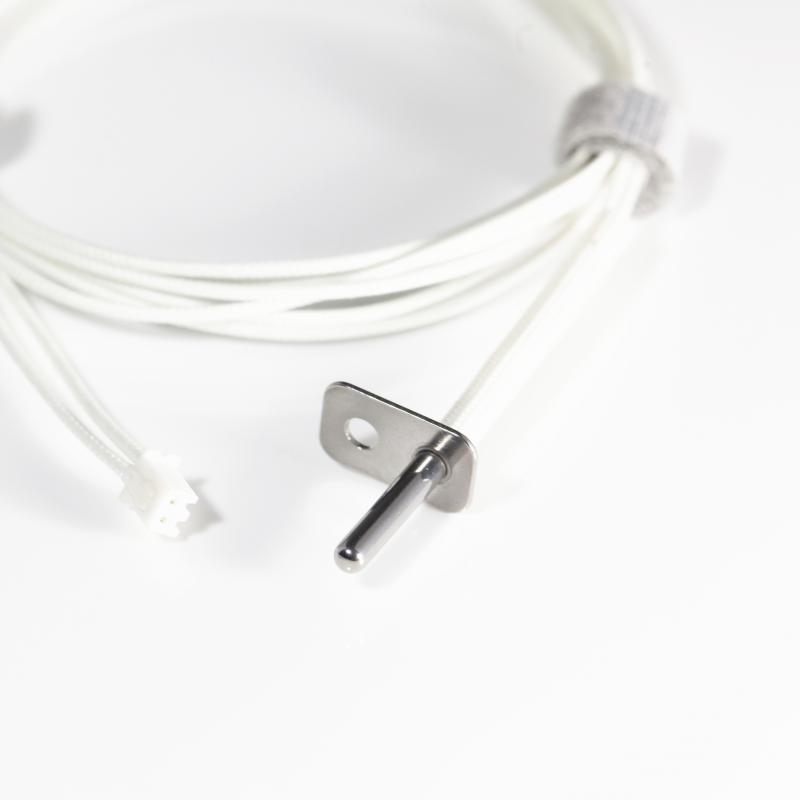

High Temperature Oven Sensor Flange Installation

With flexible design and custom in house capability , we have full ranges of oven temperature meeting different electrical and mounting requirements.

Item NO.:
MZP-4
Order(MOQ):
3000
Product Origin:
Hefei,Anhui,China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
NTC Thermistor / RTD PT1000 / Thermocouple
Working Temperature:
-50- 300’C/ -50-500’C Max
Thermal Time:
10 seconds around (in water)
Hi-Pot:
Min.1250V 1mA 1 minute Higher Voltage available on request

Inquire now

Parts Selection Guide

New Products

Product Detail

High Temperature Oven Sensor with Ground Connector

The PT RTD sensor is a temperature sensor designed to achieve very high accuracy measurements and is ideal for use for PV module temperature measurements. The sensor come equipped with a robust weatherproof cable.

Key Parameters

Probe Material	Food grade SUS304 / SUS316	Wire Layout	2 wires/ 3 wires
Hi-Pot	Min.1250V 1mA 1 minute Higher Voltage available on request	Cable Material	Teflon/ Fiber Glass
Insulation Resistance	DC500V min.100Mohm	Protection Tube	Fiber Glass
Precision of class A	±(0.15+0.002ItI)	Sizes	On request
Precision of class B	±(0.3+0.005ItI)	Connector	On request

Typical Applications

Household and commercial Ovens
Food process Equipments
High Temperature material treatment Equipments

Advantages

Size and Materials designed for easy and flexible installation
Good stability and coherence, high durability
Standard and reliable temperature resistance character
High Temperature capability of different temperature grade eg.300℃,500℃
Safety dielectric according to different standard: 1250V/ 2000V /3000V 1mA 1minute
Safety for Food contact: ROHS, REACH,FDA, PAH compliant

Typical Sizes

Standard RT and Tolerance

Welcome contact us for more details or for your sensing solutions

Leave A Message

Any information wanted ? Leave us a message here please.

Subject : High Temperature Oven Sensor Flange Installation

Related Tags :

Related Products

Flange Mount NTC Temperature Sensor for Cooking Oven MFP-4 Series

MFP-4 series temperature sensor using the NTC thermistor element. It is flange mounting type sensor probing sensor into liquid or air chamber which temperature to be measured.Products can be custom according to different temperature environment or application.With our mature craft, it can be made with a variety of specifications,customers can usedirectly without abricating.

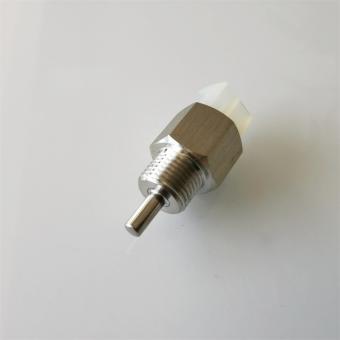

M3 Thread Mount Temperature Sensor for Cooking Device MFP Series

Focusens MFP-6 series Screw Threaded NTC Thermistors are made for surface temperature measurement, sensing, and control. It is easily mounted sensor with brass or aluminum metal screw. It is especially ideal thermal solution when good electrical insulation and good thermal contact with the chassis or wall is required.

FDA compliance food Temperature Sensor for sous vide with Mineral insulated Cable

NTC Thermistor sous vide cooking Temperature Sensor

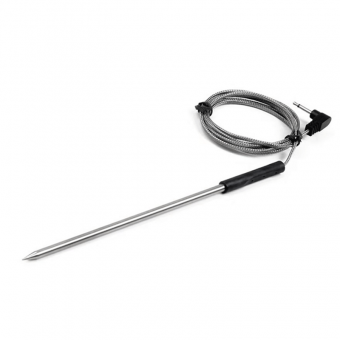

FDA compatiable Meat Temperature Probe for Household Oven
