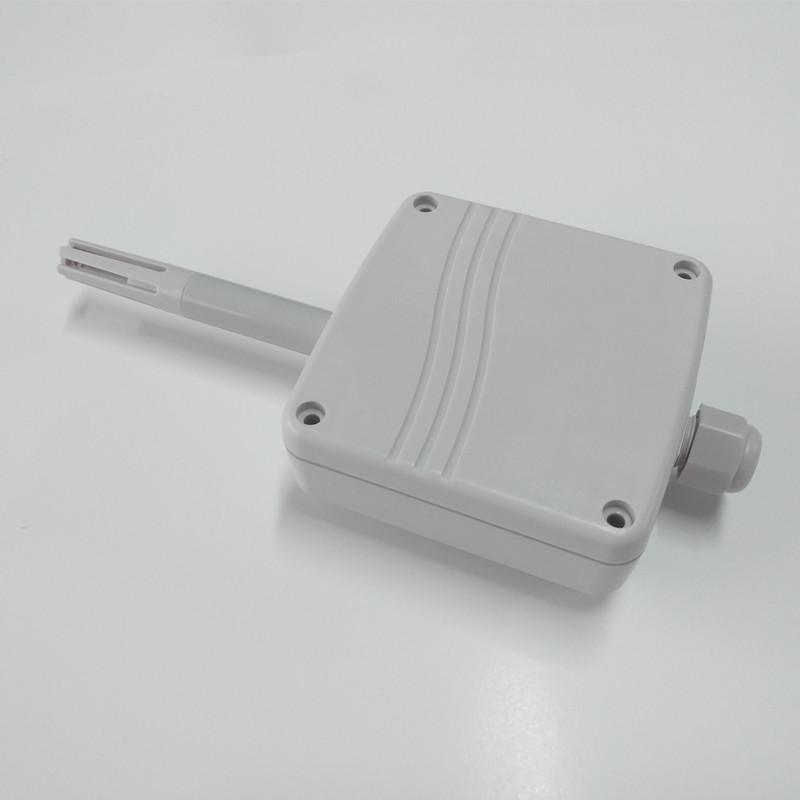

FHT20 series Wall Mount Temperature Humidity Transmitter 4-20mA Output

Focusens FHT20 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature.

The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation.

The FHT20 use the reliable humidity / temperature Sensirion sensor element SHT21 with excellent long term stability and resistance against pollutants. In combination with a long calibration experience, the FHT20 provides a measurement accuracy of ±3%RH and is available for wall-mounted with current, voltage output.

  • Brand:

    Focusens

  • Item NO.:

    FHT20

  • Product Origin:

    Hefei,Anhui,China

  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen

  • Lead Time：

    4 weeks

  • Sensing Component:

    Sensirion SHT21

  • Working Temperature:

    -20---+80°C

  • Thermal Time:

    10
Inquire now
  • Product Detail

FHT20 series Wall Mount Temperature Humidity Transmitter 4-20mA Output


Focusens FHT20 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature.


Technical Data

Parameter

Temperature

Relative Humidity

Measurement Range

0...+50°C

-0...+60°C

-20...+80°C

0...100% RH

Accuracy at 25°C

±0.3°C

±3% RH (20...80% RH)

Stability

＜0.1°C / year

＜0.5%RH / year

Response

＜15s

＜12s(63%)

power supply

2-wire: 12...2V 3-wire: 15...2V

Output

2-wire: ...20mA

3-wire: ...20mA / 0...1/5/10V

Load

2-wire: (VDD - 7V) / 0.02A

3-wire: Current mode less than 500Ω, Voltage mode greater than 10kΩ

Sensor protection

membrane filter

Housing material

Polycarbonate

Protection grade

IP65

Dimensions (mm)




Ordering Guide

SERIES

OUTPUT

T-SCALING

DISPLAY

FHT20

(A)   2-wire current mode ...20mA

(B)   3-wire current mode ...20mA

(D)   3-wire voltage mode 0...10V

(E)   3-wire voltage mode 0...5V

(F)   3-wire voltage mode 0...1V

(T1)     0...+50°C

(T2)  -0...+60°C

(T3)  -20...+80°C

(D)  LCD


Accurate temperature/humidity measurement over a wide working range,  fitted  in  a  small-sized  housing  and  high  flexibility  have been the main goals for the development of the FHT23 series.

Calibration data and other relevant functions like linearization or temperature compensation are stored in the probe.

The  humidity  and   temperature  measurement  are  available  as analogue outputs (0-5/10V or 4-20mA).


Leave A Message
Any information wanted ? Leave us a message here please.
Related Products
temperature humidity transmitter
FHT10-V2 series Portable Temperature Humidity Transmitter 4-20mA Output
Focusens FHT10 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation. The FHT10 use the reliable humidity / temperature Sensirion sensor element SHT21 with excellent long term stability and resistance against pollutants. In combination with a long calibration experience, the FHT10 provides a measurement accuracy of ±3%RH and is available for wall-mounted with current, voltage output.
temperature humidity transmitter
FHT31 series Duct Temperature Humidity Transmitter Currency Output
Focusens FHT31 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation. The FHT31 use the reliable humidity / temperature Sensirion sensor element SHT21 with excellent long term stability and resistance against pollutants. In combination with a long calibration experience, the FHT31 provides a measurement accuracy of ±3%RH and is available for wall-mounted with current, voltage output.
PTC Thermistor
LPTC Linear Silicon PTC Thermistor Packed in Glass DO35
MF58 DO35 diode package NTC thermistor axial or radial leads for all kinds of vehicle electrical temperature sensor probes
fast speed ntc Thermistor
M3 Thread Mount Temperature Sensor for Cooking Device MFP Series
M3 Thread Mount Temperature Sensor using the NTC thermistor element.It is screw type sensor mount onto devices by screwina hausing.t Products can be custom according to different temperature environment or application.
DS18B20 Temperature Sensor
Flange Mount DS18B20 Temperature Sensor with Maxim Element
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of-55°C to +125°C and is accurate to ±0.5°C over the range of-10C to +85℃.
glass NTC thermistor
MF58C High Temperature Glass NTC Thermistor with Axial Lead
Focusens MF58 series NTC thermistor is high precision NTC thermistor sealed in glass. There are two lead type of MF58 thermistor, the radial lead type with ordering code MF58A and MF58B is sealedas small glass bead diameter Max.1.5mm and 2.2mm respectively,the axial lead part MF58C is packed in standard DO35 glass. This chip in glass thermistor have standard and small size. With advanced ceramic sintering and glass sealing technique it have advantage of high precision, miniture size,fast response and reliable stability especially under 100-250'C high temperature. The MF58 thermistor is widely used for temperature sensors as well as used directly on PCB or circuit for precision temperature sensing.
temperature humidity transmitter

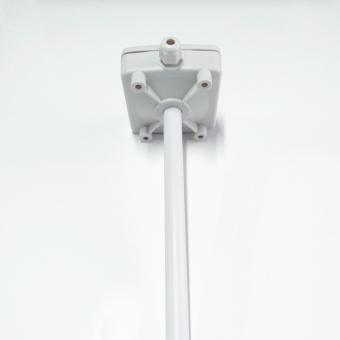

FHT31 series Duct Temperature Humidity Transmitter Voltage Output
