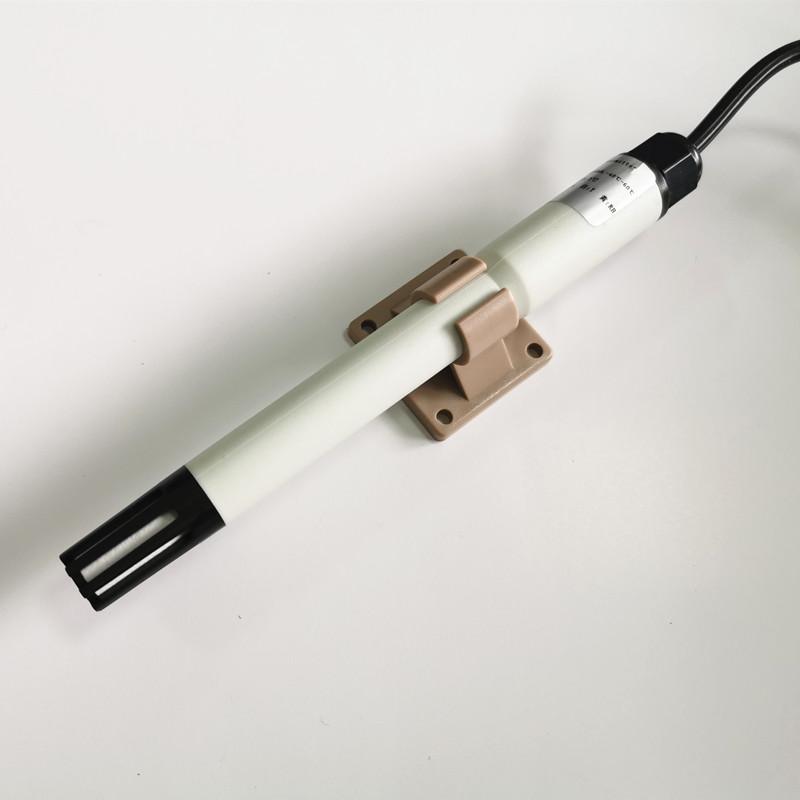

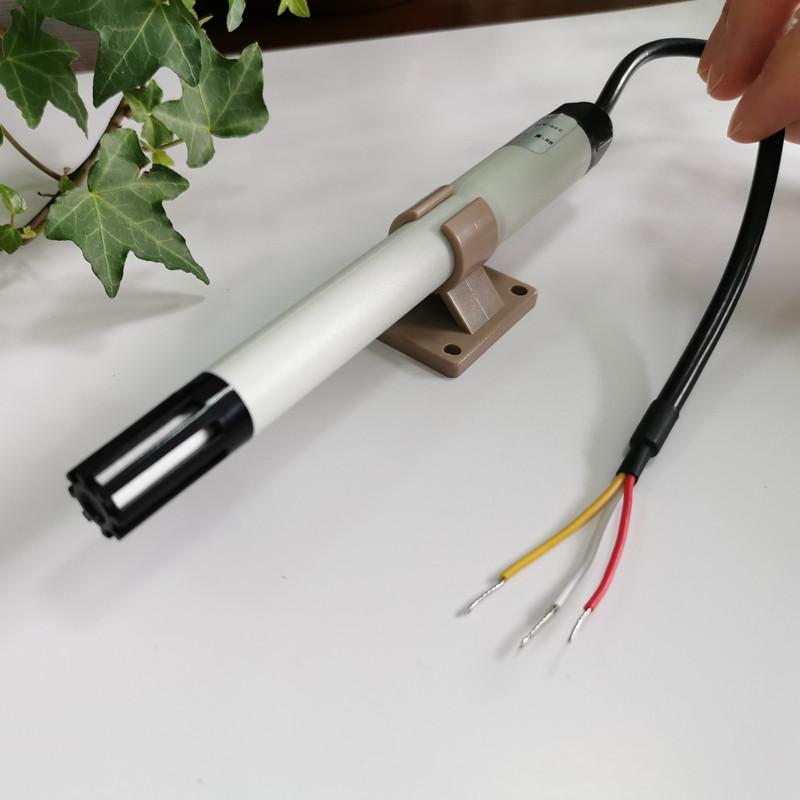

FHT10-V2 series Portable Temperature Humidity Transmitter 4-20mA Output

Focusens FHT10 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature.

The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation.

The FHT10 use the reliable humidity / temperature Sensirion sensor element SHT21 with excellent long term stability and resistance against pollutants. In combination with a long calibration experience, the FHT10 provides a measurement accuracy of ±3%RH and is available for wall-mounted with current, voltage output.

  • Item NO.:

    FHT10
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Sensing Component:

    Sensirion SHT21
  • Working Temperature:

    -20--+80°C
  • Thermal Time:

    10
  • Product Detail

FHT10-V2 series Portable Temperature Humidity Transmitter 4-20mA Output


Focusens FHT10 series temperature humidity transmitter is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature.

The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation.

The FHT10 use the reliable humidity / temperature Sensirion sensor element SHT21 with excellent long term stability and resistance against pollutants. In combination with a long calibration experience, the FHT10 provides a measurement accuracy of ±3%RH and is available for wall-mounted with current, voltage output.

Typical Applications

Features

Incubators

Fermentation chambers

Environmental monitoring

Industrial Process control

Humidity / temperature data logging

Small size product

Full interchangeability

Wide working range, high accuracy

High reliability and long term stability

Technical Data

Parameter

Temperature

Relative Humidity

Measurement Range

0...+50°C

-0...+60°C

-20...+80°C

0...100% RH

Accuracy at 25°C

±0.3°C

±3% RH (20...80% RH)

Stability

<0.1°C / year

<0.5%RH / year

Response

<15s

<12s(63%)

power supply

2-wire: 12...2V 3-wire: 15...2V

Output

2-wire: ...20mA

3-wire: ...20mA / 0...1/5/10V

Load

2-wire: (VDD - 7V) / 0.02A

3-wire: Current mode less than 500Ω, Voltage mode greater than 10kΩ

Protection grade

IP65

Note:

Please don’t used in extreme conditions or exposure to solvent vapors




Dimensions (mm)

Connection Diagram


Ordering Guide

SERIES

OUTPUT

T-SCALING

FHT10

(A)   2-wire current mode ...20mA

(B)   3-wire current mode ...20mA

(D)   3-wire voltage mode 0...10V

(E)   3-wire voltage mode 0...5V

(F)   3-wire voltage mode 0...1V

(T1)     0...+50°C

(T2)  -0...+60°C

(T3)  -20...+80°C

Default wire length is 1.5m, AWG2.
