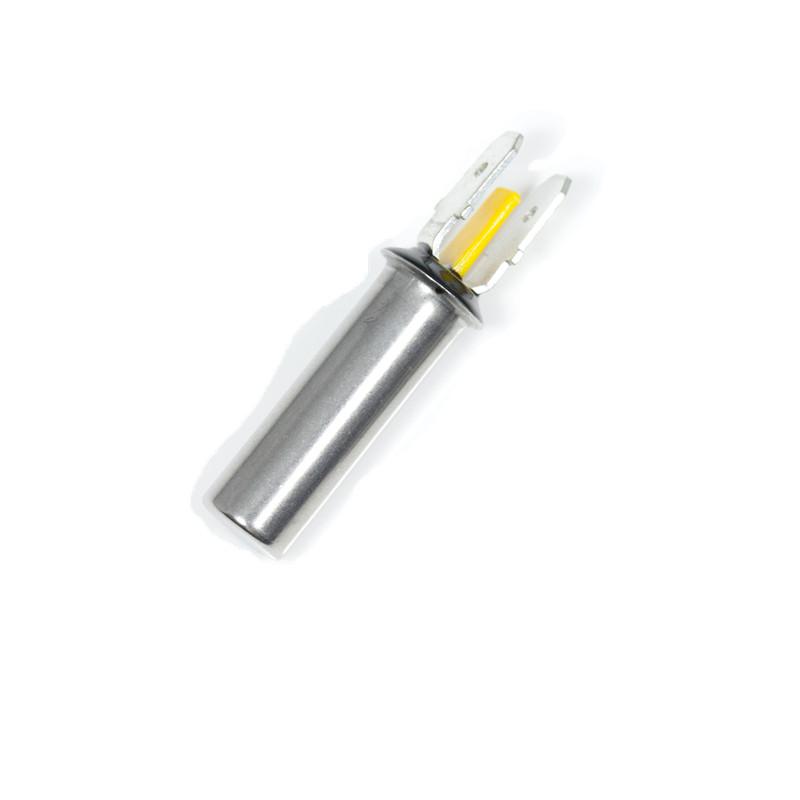

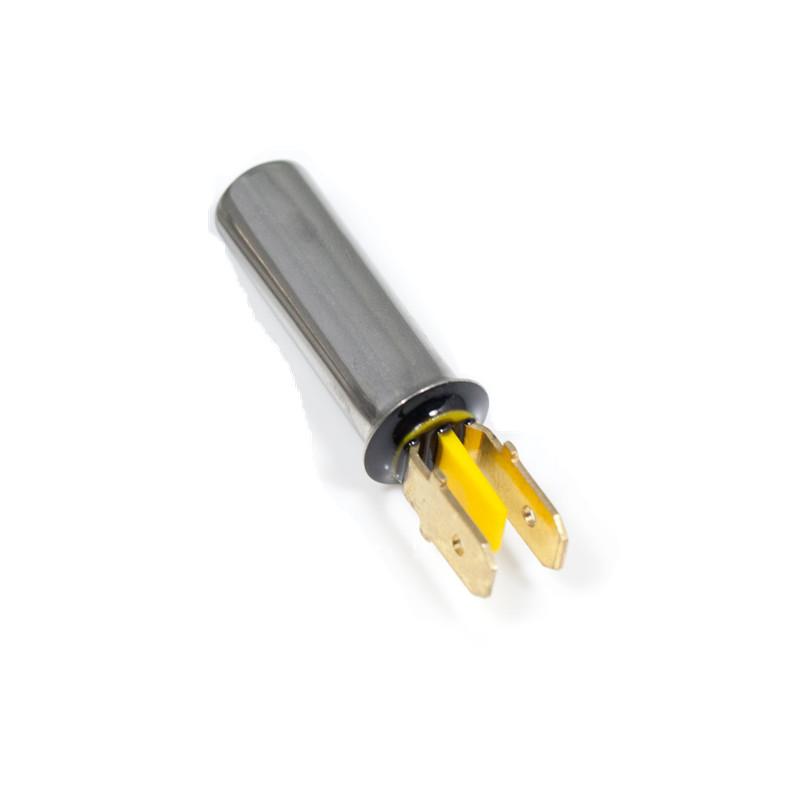

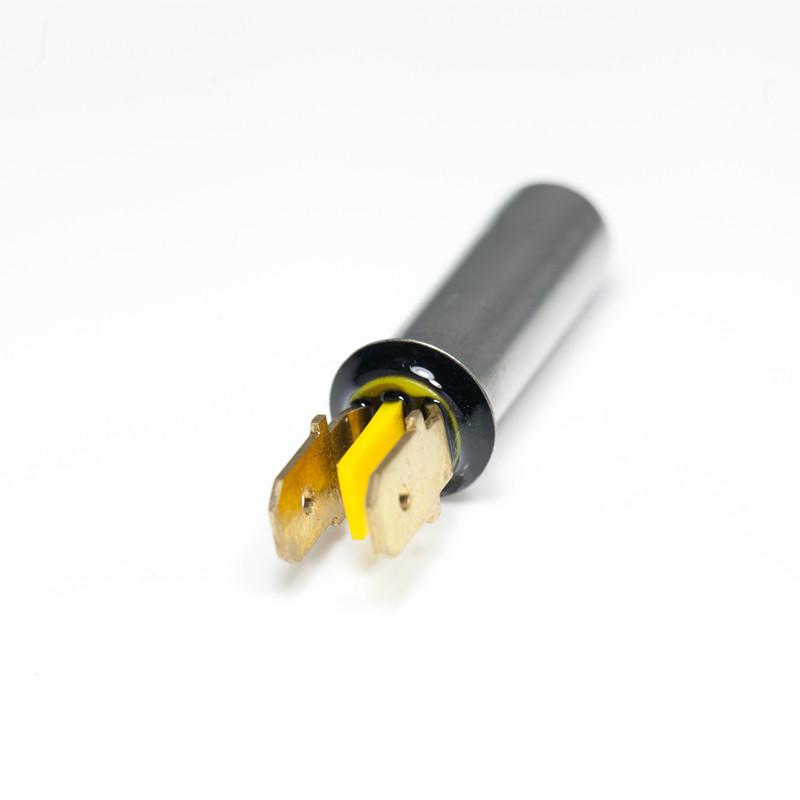

6.3mm Plug Mounting NTC Thermistor Temperature Sensor for Coffee Machine with SUS304 House

The MFL Series NTC Thermistor temperature sensor is made with FDA food grade Stainless steel SUS304 .

It is easily installed onto coffee machine circuit with two 6.3mm plug.

Order(MOQ):
1000
Product Origin:
Hefei Anhui China
Shipping Port:
Shanghai / Ningbo/Hefei/Shenzhen
Lead Time：
4 weeks
Sensing Component:
NTC Thermistor or PT1000 Platinum sensor as alternative
Working Temperature:
-40- 120’C
Thermal Time:
30 s
Hi-Pot:
1750V

Inquire now

Parts Selection Guide

New Products

Product Detail

Typical Applications

Features

l Coffee Machine

l Easy installation

l Fast response

l High level of water proof and durability

Technical Data

Item	Parameter
l Sensing Element	l NTC Thermistor various R and B value on request
l Temperature range	l -40°C to +125°C
l Response time	l Water (0.4m/s) T0.63 ≤ 30s
l Dissipation Factor	l ≤100 mW/°C
l Long-term stability	l Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
l Dielectric Strength	l 1750VAC
l Insulation Resistance	l ≥100MΩ 500VDC

Dimensions (mm)

Leave A Message

Any information wanted ? Leave us a message here please.

Subject : 6.3mm Plug Mounting NTC Thermistor Temperature Sensor for Coffee Machine with SUS304 House

Related Tags :

Related Products

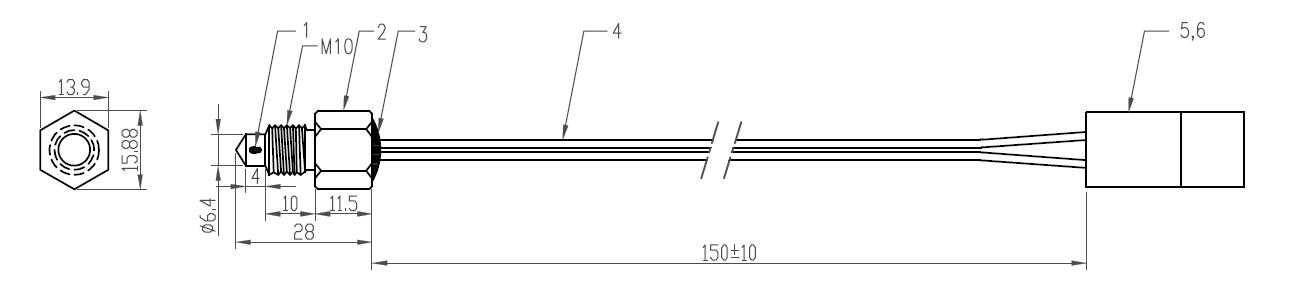

Threaded Mounting NTC Thermistor Temperature Sensor for Coffee Machine with SUS316 House

The MFP Series NTC Thermistor temperature sensor is made with FDA food grade Stainless steel SUS316 . Its M10 thread makes the sensor mounting easily and solid.

MFE-1 IP68 TPE Overmoulding Temperature Sensor Waterproof 5x20mm Probe

MFE-1 series TPE overmould temperature sensor using NTC thermistor as temperature sensing element. Products can be custom according to different temperature environment or application. With our mature craft, it can be made with a variety of specifications, customers can use directly without fabricating.

MF5A-3 Epoxy Coating NTC Thermistor with Radial Bear Lead Wire

MF5A-3 Series epoxy coating temperature thermistor small type radial bare leaded NTC resistor, it is made of new materials, new technology of production and has the advantages of high precision, fast response and high reliablity.

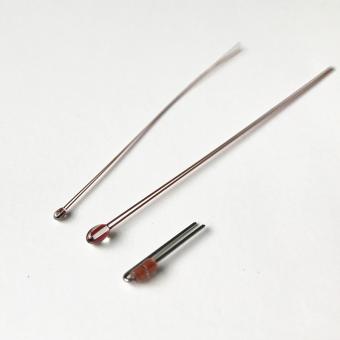

FHD4513 Accuracy NTC Thermistor with Enamel Wire

Focusens FHD4513 series accuracy NTC Thermistor made with Enamel Wire and have miniture body size which suit well small size temperature meters.

Response Temperature 80 to 180°C with Double PTC Thermistor Heat Protector

Focusens PTC thermistor is a leader in the field of motor protection with excellent quality. Its core feature is the sudden increase in resistance at critical temperature. It is high quality and low price, and performs well in heavy-duty motors. To avoid the risk of direct interruption of large currents, the PTC sensor intelligently monitors the temperature and provides high-resistance protection when exceeding the threshold, safely cutting off the circuit and preventing the motor from overheating.

MFE-1A Series IP68 Waterproof Overmould Temperature Sensor 6x5x15mm Flat Probe

MFT series temperature sensor using NTC thermistor as temperature sensing element. Products can be custom according to different temperature environment or application. With our mature craft, it can be made with a variety of specifications, customers can use directly without fabricating.

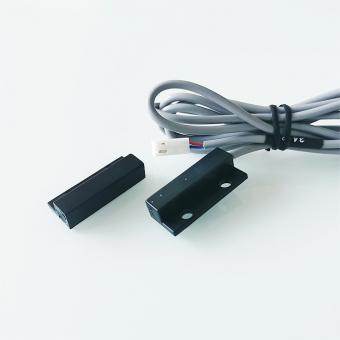

AT1315 Contact Reed Switch Magnet Sensor with ABS Enclosure for Refrigerator Door
