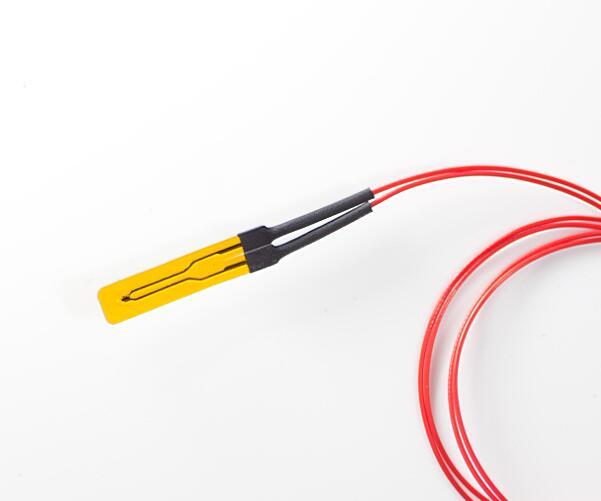

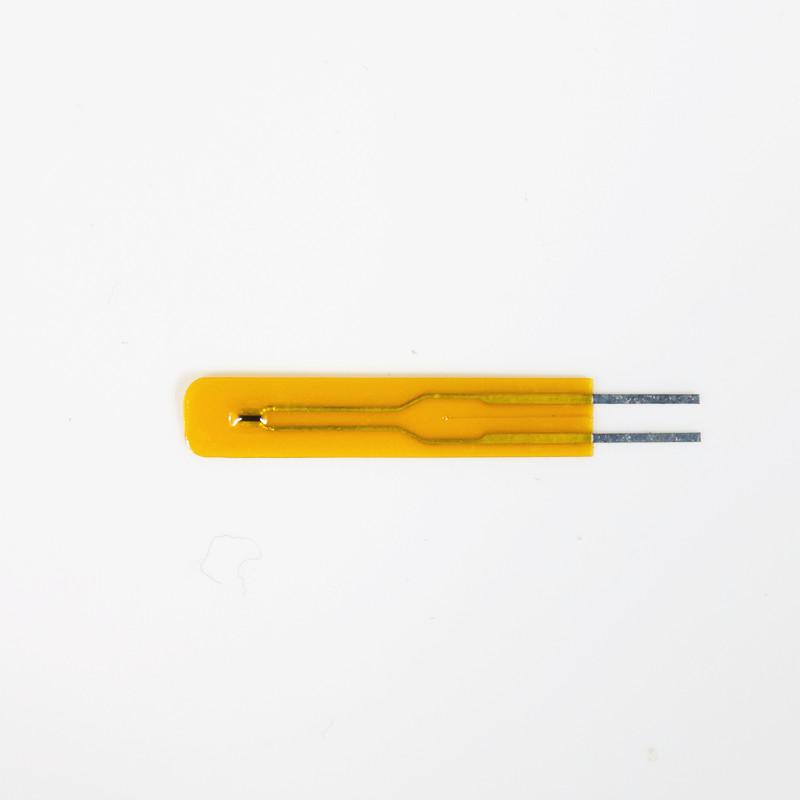

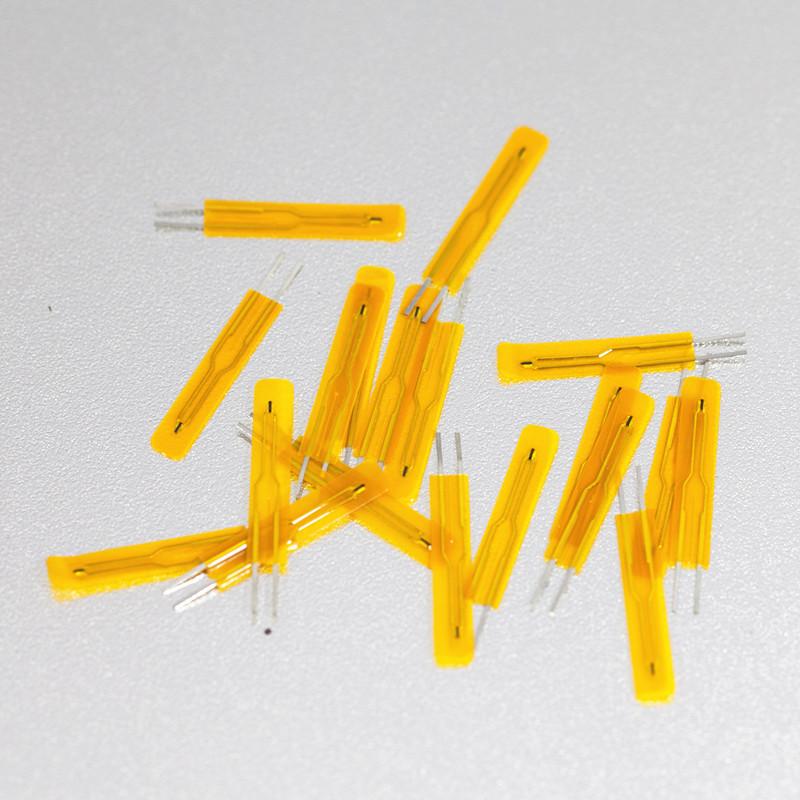

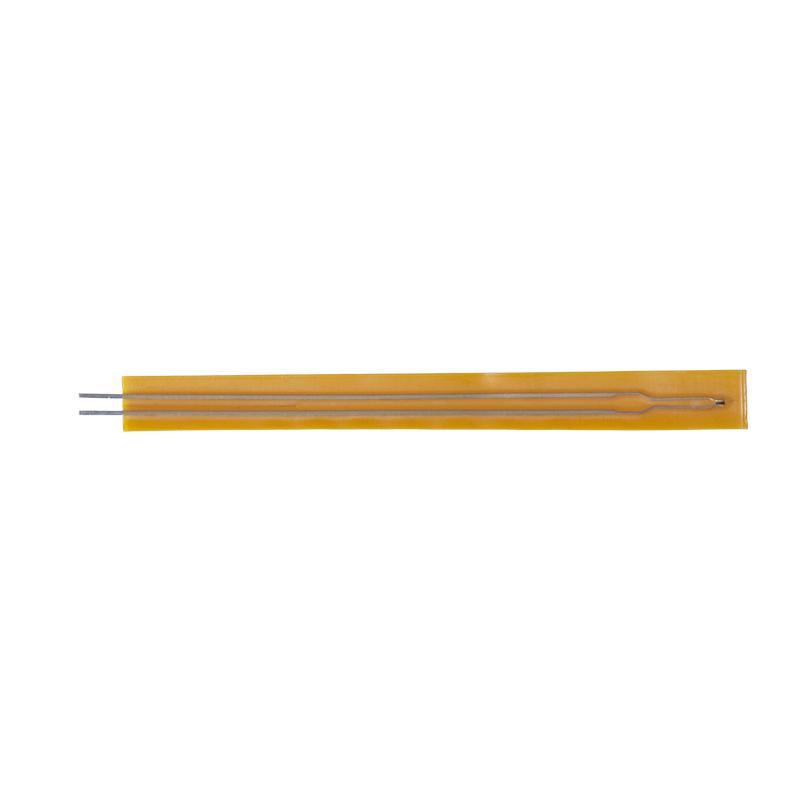

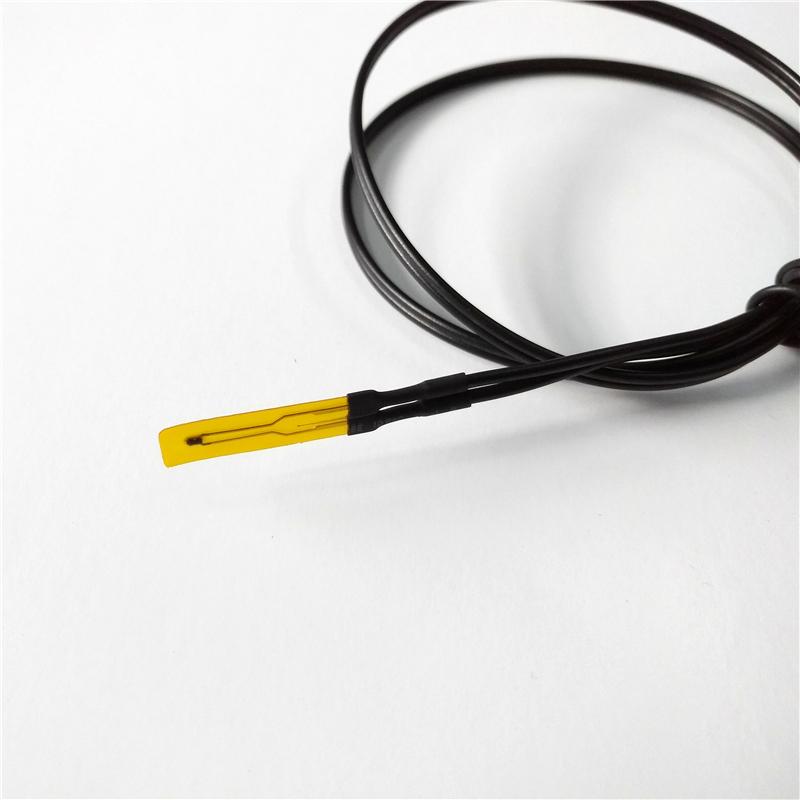

MF5A-6 Series Thin Film Insulation NTC Thermistor

MF5A-6 series NTC thermistor is packed by polyimide insulation film, its flat and thin film packing enable it works for flat surface temperature sensing with fast response time and especially suitable for very compact mounting room.


It is widely used for OA devices like printers, for battery pack of EV car , and many flat surface temperature sensing applications.

  • Brand:

    Focusens
  • Item NO.:

    MF5A-6
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    1-2 weeks
  • Sensing Component:

    10K 1% B25/85:3977 and 10K 1% B25/85:3435 as standard parameter
  • Working Temperature:

    -50- 125’C
  • Thermal Time:

    Max.5s
  • Hi-Pot:

    750V
  • Product Detail

Typical Applications

Features

l   Printer

l   Copying machine

l   Multi-function machines

l   Heat flowmeter

l   Lithium Battery

l   Thin thickness

l   Miniature size

l   Radial lead

l   Fast response

Electric parameter

Item

Parameter

Resistance Rang

0.3~3000kΩ

Thermal Time

5s in constant temperature oil tank

Operating Temperature Range

-30 - 120 °C

Dissi. Coef. (In the still air)

2 mW/°C

Voltage Withstanding

DC500V, ≥ 100MΩ

Insulation Resistance

AC 500V , ≥ 1minute
