Brand:
FocusensOrder(MOQ):
500Product Origin:
Hefei, Anhui, ChinaShipping Port:
Shanghai /Ningbo/Hefei/shenzhenLead Time：
4 weeksSensing Component:
PT100 /PT500 /PTI000Working Temperature:
-50-300℃/-50-500°C MaxThermal Time:
10 seconds around (in water)Hi-Pot:
1250V 1mA 1 minuteProduct Description

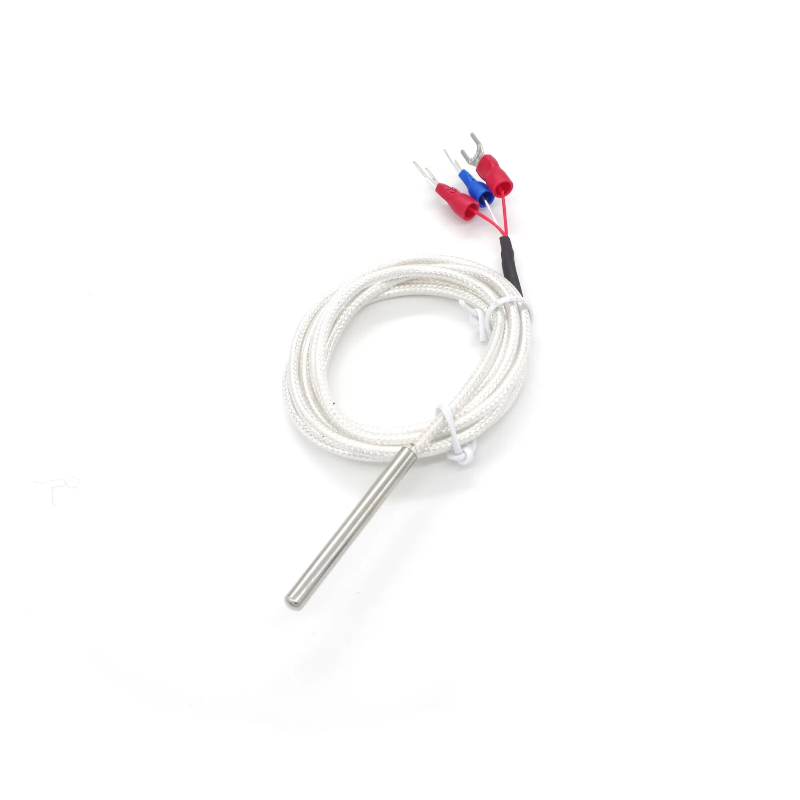

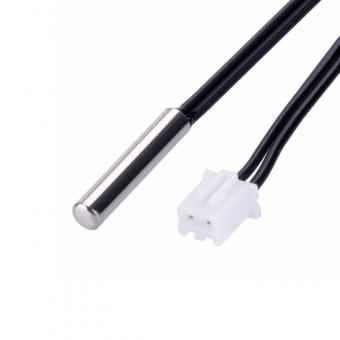

A Pt100/Pt1000 RTDis a type of temperature sensor. It consists of an element that uses resistance to measure temperature. Often platinum is used for the element which is the reason why they are often calledplatinum resistance thermometers (PRTs). Other common names include RTDs (short for resistance temperature detector) anddepending on the element type Pt100, Pt200, Pt500 or Pt1000.
Features
◆ Precise measurement in extreme environments.
◆ Fast response time.
◆ Ease of application and use.
◆ Engineered to withstand extreme temperatures -200 to + 600°C.
◆ High-quality stainless steel probe:waterproof, moisture-proof and anti-rust.
◆ International industrial standards.
◆ Greater engineering efficiency due to linear output.
◆Wide application: can be used in household air conditioner, refrigerator, water fountain, drying box, constant box, etc.
|
Item |
Specification |
|
Sensor type |
Platinum Resistance, Pt100 or Pt1000 Ohms |
|
Ice point resistance |
100Ω or 1000Ω Ohms |
|
Fundamental interval (0°C to 100°C) |
38.5Ω nominal (100Ω)
385Ω nominal (1000Ω) |
|
Measuring range |
-200~150°C, -50~350°C, -50~600°C |
|
Tolerance class |
DIN Class A or B |
|
Response time |
10S (0.63τ) |
|
Insulation Resistance |
100Mohm |
|
Cable material |
PVC, Teflon, Silicone, Fiberglass |
|
Housing |
SUS304 or SUS316 |
|
European / British Standard |
Conforms to IEC 60751:2008 / BS EN 60751:2008 |

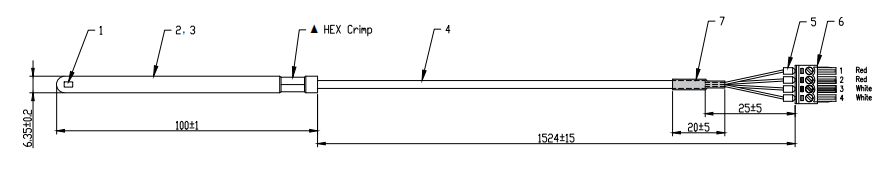

Custom Designs

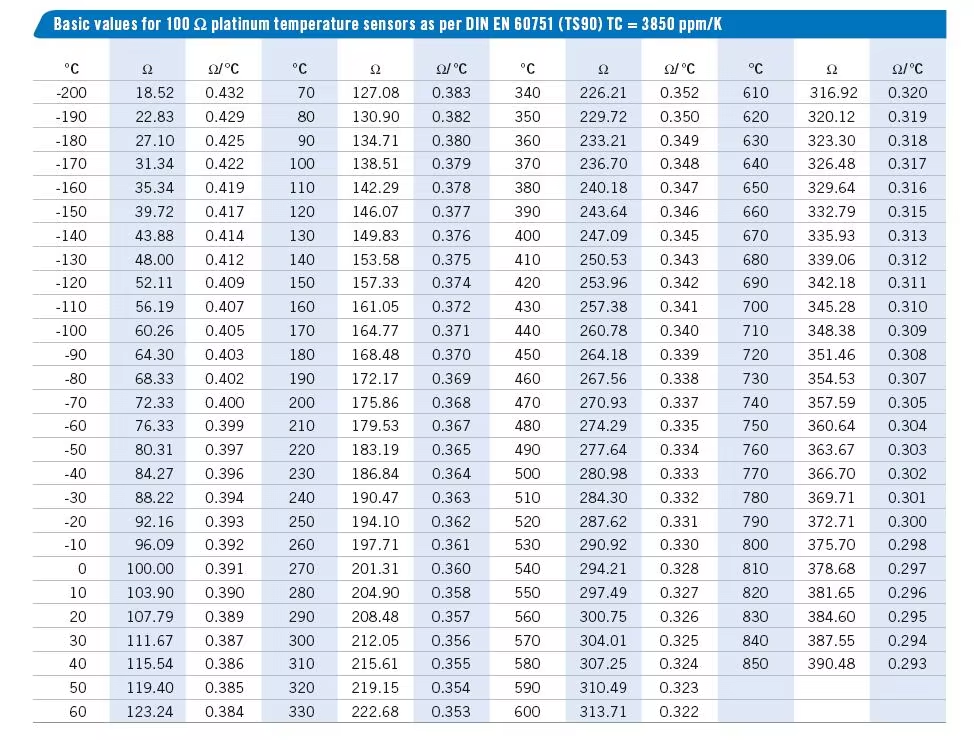

Standard RT and Tolerance
