6mm DiameterTubular DS18B20 Temperature Sensor Probe

The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points.

  • Brand:

    Focusens
  • Item NO.:

    MFP-1
  • Order(MOQ):

    3000
  • Product Origin:

    Hefei,Anhui,China
  • Shipping Port:

    Shanghai / Ningbo/Hefei/Shenzhen
  • Lead Time:

    4 weeks
  • Sensing Component:

    DS18B20
  • Working Temperature:

    -55- 125°C.
  • Thermal Time:

  • Hi-Pot:

  • Product Detail


6mm DiameterTubular DS18B20 Temperature Sensor Probe


The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of-55°C to +125°C and is accurate to ±0.5°C over the range of-10C to +85.


Key Parameters:

Sensing Component

DS18B20

Power Supply

3.0~5.5V

Working Temperature

-55- 125°C.

Probe Material

SUS304 /SUS316

Accuracy

±0.5°C accuracy from –10°C to +85°C

/±2°C accuracy from -55°C to +125°C

Wire Layout

1wires

Response

Converts temperature to 12-bit digital word in 750 ms (max.)

Cable Material

Teflon/ Fiber Glass

Output

Open-drain 1-Wire interface pin.

Sizes

On request

Drift

±0.2°C on a 1000h stress test at +125°C with VDD= 5.5V

Connector

On request


Typical Applications

Household and commercial Ovens

Food process Equipments

High Temperature material treatment Equipments

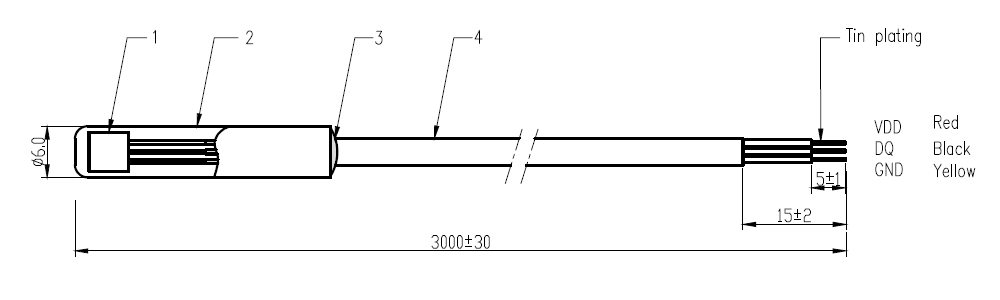

Typical Sizes:


Ordering Code:

Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions



Leave A Message
Any information wanted ? Leave us a message here please.
Related Products
DS18B20 Temperature Sensor
Flange Mount DS18B20 Temperature Sensor with Maxim Element
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of-55°C to +125°C and is accurate to ±0.5°C over the range of-10C to +85℃.
DS18B20 Temperature Sensor
Tubular DS18B20 Temperature Sensor Probe
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points.
DS18B20 Temperature Sensor
5mm Diameter Tubular DS18B20 Temperature Sensor Probe
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points.
DS18B20 Temperature Sensor

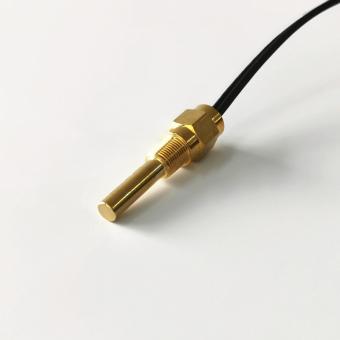

Thread Mount DS18B20 Temperature Sensor Probe
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor.
DS18B20 Temperature Sensor
Thread Mount DS18B20 Temperature Sensor Probe
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor.
Thermal Fuse
Metal Case Thermal Fuse with Axial Lead
Metal Case Thermal Fuse with Axial Lead RY01 series thermal fuse is a non-resetting protective device, which is used to prevent various electrical and heating appliance, dynamoelectric tools and industrial equipment from overheating. When the working temperature exceeds the rated value, the molten substance would cut the circuit rapidly and avoid the damage caused by overheating.  Technical Parameters: Model Rating Action Temp. Fusing Off Temp. Holding Temp.TC Max.Temp. Tm Electrical characteristics APPROVALS Rated Voltage Rated Currency TÜV VDE CCC Tf(°C) Tf (°C) (°C) (°C) AC(V) A RY01-55 55 52±2 35 120 250 10 15 ● ○ RY01-65 65 63+1 –3 40 120 250 10 15 ● ○ RY01-70 70 68+2 –3 45 120 250 10 15 ● ○ RY01-76 76 73+2 –3 45 120 250 10 15 ● ○ RY01-80 80 78+2 –3 55 150 250 10 15 ● ○ RY01-85 85 80±2 55 150 250 10 15 ● ○ RY01-92 92 90±2 65 150 250 10 15 ● ○ RY01-96 96 94±2 65 150 250 10 15 ● ● ○ RY01-100 100 97+2 –3 65 150 250 10 15 ● ● ○ RY01-105 105 100+4 –3 70 150 250 10 15 ● ○ RY01-110 110 106±2 75 150 250 10 15 ● ○ RY01-113 113 110+2 –3 80 150 250 10 15 ● ○ RY01-115 115 110±3 80 150 250 10 15 ● ○ RY01-121 121 119+2 –3 90 180 250 10 15 ● ○ RY01-123 123 120+2 –3 90 180 250 10 15 ● ○ RY01-125 125 120+3 –2 90 180 250 10 15 ● ○ RY01-128 128 124±3 90 180 250 10 15 ● ○ RY01-130 130 127±3 100 180 250 10 15 ● ○ RY01-133 133 130±3 100 180 250 10 15 ● RY01-135 135 130±3 100 180 250 10 15 ● ● ○ RY01-139 139 137±2 105 180 250 10 15 ● ○ Model Rating Action Temp. Fusing Off Temp. Holding Temp.TC Max. Temp. Tm Electrical characteristics APPROVALS Rated Voltage Rated Currency TÜV VDE CCC Tf(°C) Tf (°C) (°C) (°C) AC(V) A RY01-142 142 140+2 –3 112 180 250 10 15 ● ● ○ RY01-145 145 140+2 –3 112 180 250 10 15 ● ○ RY01-152 152 149±3 115 200 250 10 15 ● ○ RY01-155 155 152±3 115 200 250 10 15 ● ○ RY01-165 165 162±3 135 200 250 10 15 ● ○ RY01-167 167 162±3 135 200 250 10 15 ● ● ○ RY01-169 169 165+2 –3 135 200 250 10 15 ● ○ RY01-172 172 170±2 140 200 250 10 15 ● ○ RY01-180 180 177±3 150 220 250 10 15 ● ○ RY01-185 185 182±2 150 220 250 10 15 ● ○ RY01-192 192 190+2 –5 165 220 250 10 15 ● ○ RY01-195 195 190+2 –5 165 220 250 10 15 ● ○ RY01-200 200 195±5 165 250 250 10 15 ● ○ RY01-210 210 205±5 170 250 250 10 15 ● ○ RY01-216 216 210±5 175 250 250 10 15 ● ● ○ RY01-225 225 220+2 –5 180 260 250 10 15 ● ○ RY01-230 230 225±3 195 260 250 10 15 ● ○ RY01-235 235 230±4 195 260 250 10 15 ● ○ RY01-240 240 235±3 200 260 250 10 15 ● ● ○ RY01-245 245 240±5 200 280 250 10 15 ● ○ RY01-250 250 245±5 200 280 250 10 15 ● ○ RY01-255 255 250±5 200 280 250 10 15 ● ○ RY01-260 260 255±5 205 300 250 10 15 ● ○ RY01-320 320 310+5 –10 250 300 250 10 15 ● ○ ● Certified      ○ Certification on application Typical Applications Fanner, ventilator Smoke extractor washing machine Juice extractor and blower etc. Electric cooker micro-Wave oven Water heater Electric iron Electric radiator etc. lighting appliance and game player etc. Advantages: Typical Sizes: Standard RT and Tolerence: Ordering Code: Flexible Custom Design &Development Welcomed.  Contact us now for more details or for your sensing solutions
Precision NTC Thermistor

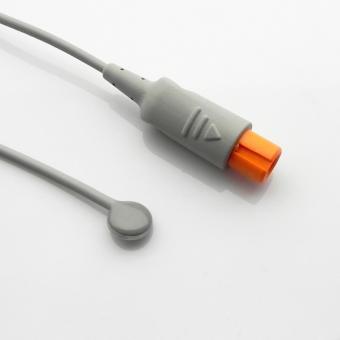

FHD 4517 Series Waterproof Medical Thermistor with Sealing Cover
