RTD (Resistance Temperature Detector) temperature sensor with high accuracy, good resolution, safe and reliable, convenient use, can be directly measured during the manufacture of all kinds of liquid, vapour and gas medium temperature.
Brand:
FocusensItem NO.:
MZP-6Order(MOQ):
3000Product Origin:
Hefei Anhui ChinaShipping Port:
Shanghai / Ningbo/Hefei/ShenzhenLead Time:
4 weeksSensing Component:
PT100 /PT500 /PT1000Working Temperature:
-50- 300’C/ -50-500’C MaxThermal Time:
10 seconds around (in water)Hi-Pot:
1250V 1mA 1minute

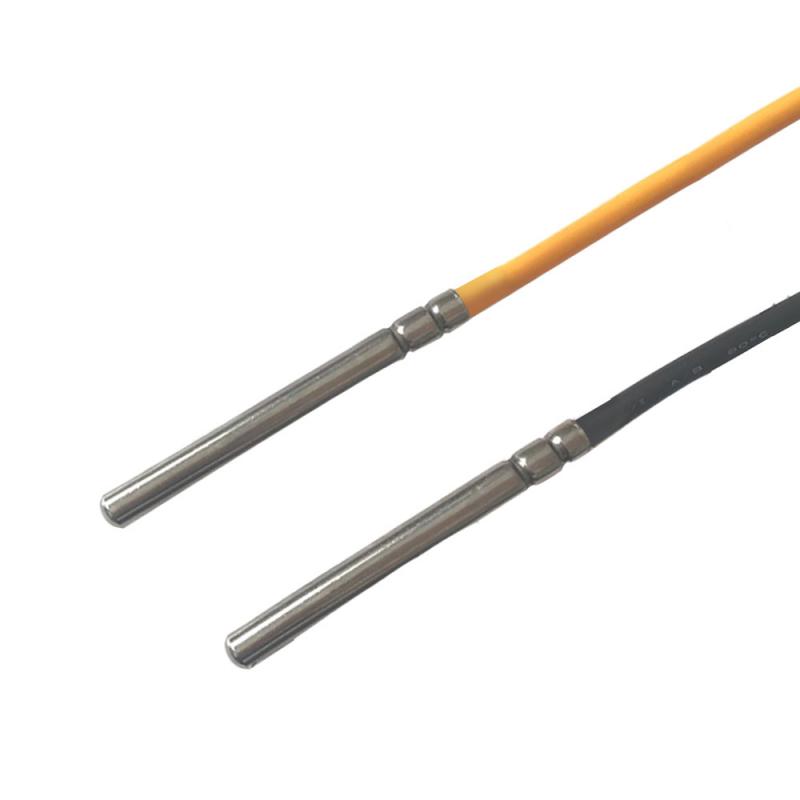

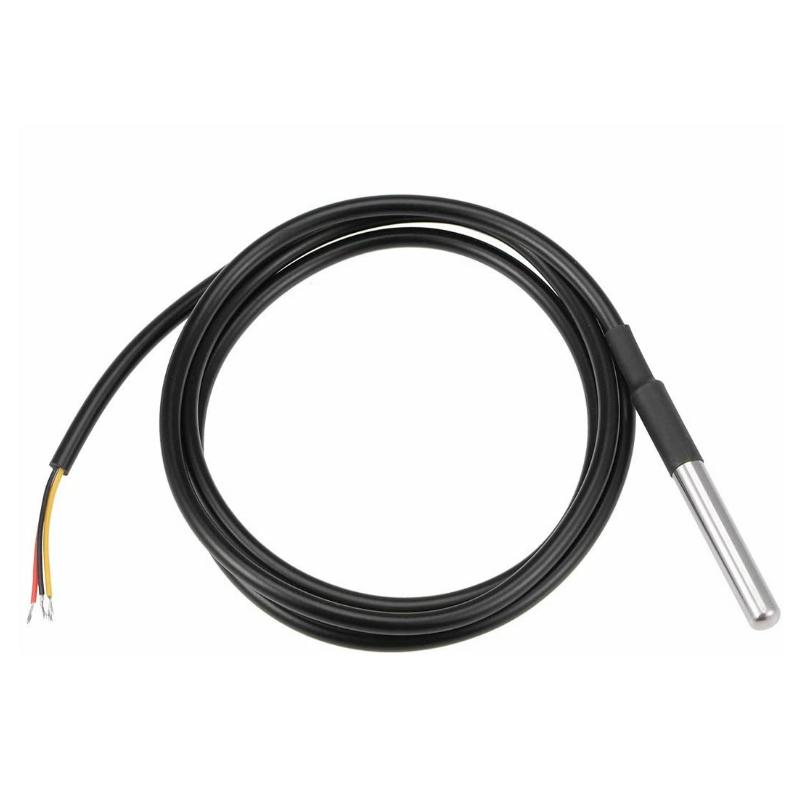

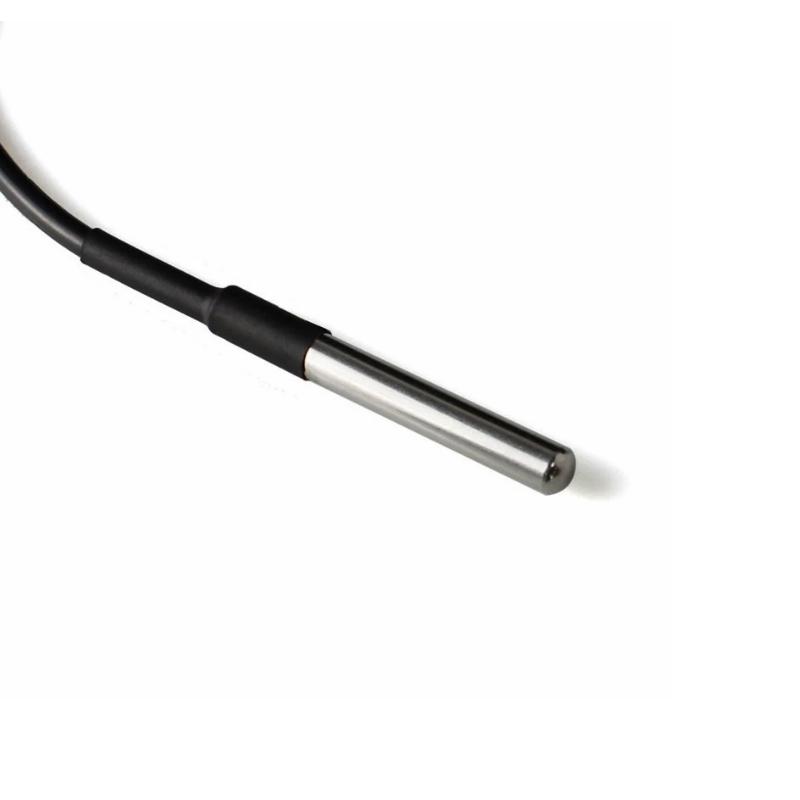

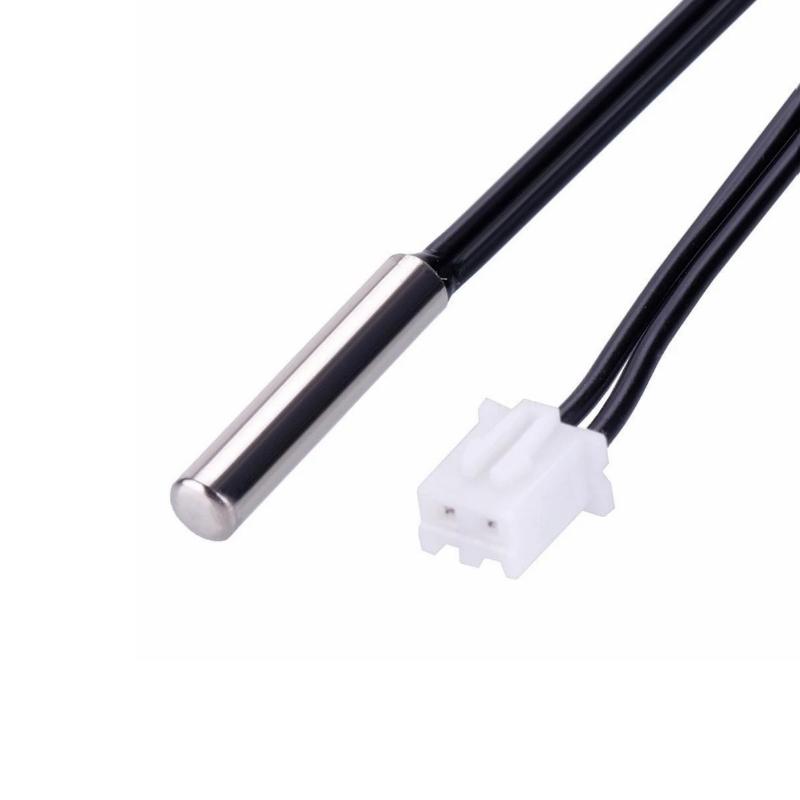

Waterproof PRT Pt100 RTD Probe Temperature Sensor
The pt100 is one of the most accurate temperature sensors. Not only does it provide good accuracy, it also provides excellent stability and repeatability.
Pt100 are also relatively immune to electrical noise and therefore well suited for temperature measurement in industrial environments, especially around motors, generators and other high voltage equipment.
Key Parameters
Sensor type |
Platinum Resistance, Pt100 or Pt1000 Ohms |
Housing | SUS304 or SUS316 |
Ice point resistance |
100Ω or 1000Ω Ohms
|
Cable material |
PVC, Teflon, Silicone, Fiberglass |
Fundamental interval (0°C to 100°C) |
38.5Ω nominal (100Ω)
385Ω nominal (1000Ω)
|
Response time |
10S (0.63τ) |
Measuring range |
-50~200°C, -50~350°C, -50~600°C |
Insulation Resistance |
100Mohm |
Tolerance class |
DIN Class A or B |
European / British Standard |
Conforms to IEC 60751:2008 / BS EN 60751:2008 |
Features
Typical Applications
Advantages

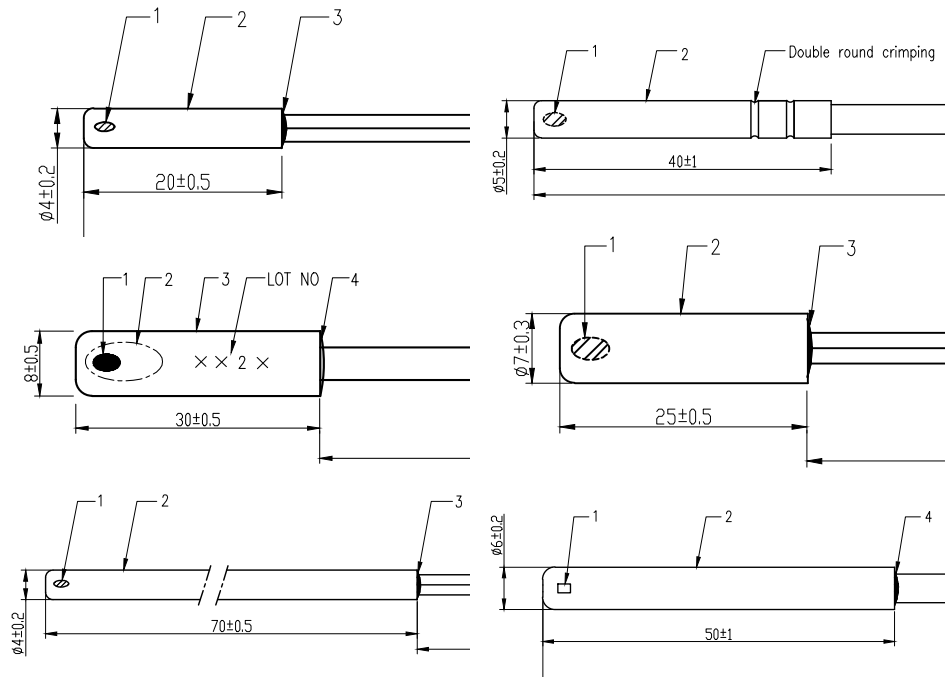

Typical Sizes
Standard RT and Tolerance
Welcome contact us for more details or for your sensing solutions
