When it comes to precise temperature measurement, T-type thermocouples are a reliable choice. At Focusens, we specialize in high-quality T-type thermocouples, designed for a wide range of applications. This article will explain what a T-type thermocouple is, how it works, and where it is typically used.

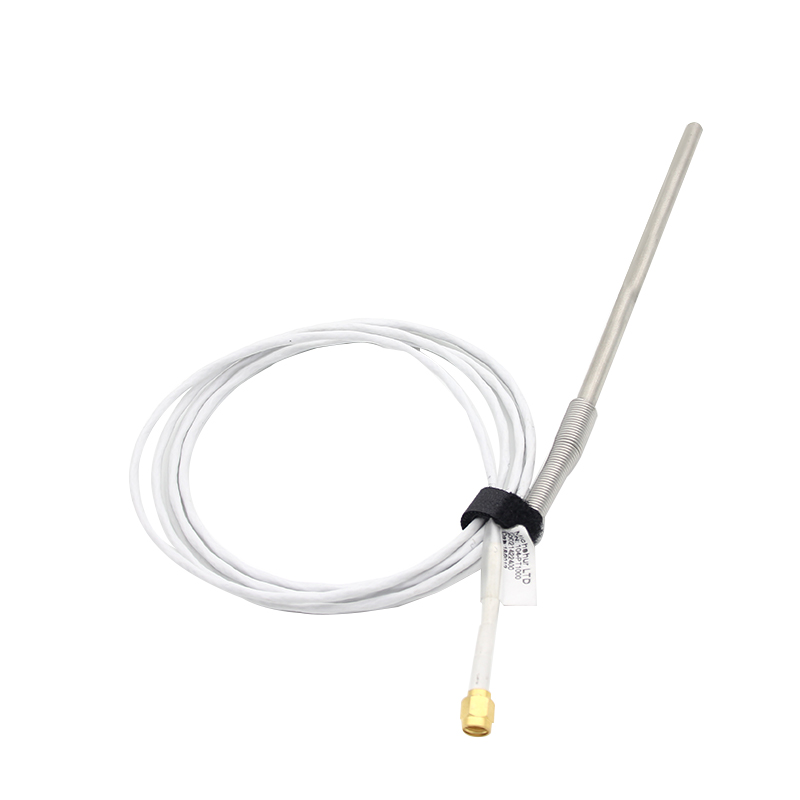

What is a T-Type Thermocouple?

A T-type thermocouple is a type of temperature sensor that measures temperature based on the voltage generated when two different metals are joined together. The “T” in T-type thermocouple refers to the materials used: copper and constantan. Copper is one of the most commonly used metals in thermocouples due to its high conductivity, while constantan is a copper-nickel alloy known for its stable resistance-temperature relationship.

The T-type thermocouple generates a voltage that is proportional to the temperature difference between the two junctions (the measuring junction and the reference junction). This voltage can then be measured and converted into a temperature reading.

How Does a T-Type Thermocouple Work?

The operation of a T-type thermocouple is based on the Seebeck effect. This effect occurs when two dissimilar metals are connected at two different temperatures. The junction at the hotter end of the T-type thermocouple generates a voltage, and this voltage is directly related to the temperature difference between the two junctions.

The voltage generated by the T-type thermocouple is very small, requiring precise instruments to measure and convert this voltage into a meaningful temperature reading. The voltage produced by a T-type thermocouple is typically in the range of a few millivolts, and this voltage is then correlated to a specific temperature value using calibration data.

Benefits of T-Type Thermocouples

T-type thermocouples offer several advantages that make them ideal for specific temperature sensing applications. Here are some of the key benefits:

• High Accuracy: T-type thermocouples are known for their excellent accuracy and precision in temperature measurement. They provide reliable and consistent temperature readings, making them ideal for applications where precision is critical.

• Wide Temperature Range: T-type thermocouples can measure temperatures in the range of -200°C to +350°C. While this is not as broad as some other thermocouple types (such as K-type thermocouples), it is well-suited for low-temperature applications. This range makes them particularly useful for cryogenic and laboratory applications.

• Good Stability: The materials used in T-type thermocouples—copper and constantan—are known for their excellent stability over time. This means T-type thermocouples can provide accurate measurements for extended periods, making them ideal for long-term use in stable environments.

• Cost-Effective: T-type thermocouples are relatively inexpensive compared to other temperature sensors, such as RTDs or infrared sensors. Their low cost makes them an attractive option for many applications where budget constraints are a concern.

• Fast Response Time: T-type thermocouples are known for their fast response times, which means they can quickly detect changes in temperature. This feature is especially important in applications where real-time monitoring is required.

Common Applications of T-Type Thermocouples

T-type thermocouples are widely used in many different industries and applications due to their precision and reliability. Here are some of the common areas where T-type thermocouples are applied:

1. Cryogenic Temperature Measurement: One of the most common uses of T-type thermocouples is in cryogenics. Cryogenic temperatures are extremely low, and T-type thermocouples can accurately measure temperatures as low as -200°C. This makes them ideal for monitoring temperatures in liquid nitrogen tanks, cryogenic storage systems, and other low-temperature applications.

2. Laboratory Research: T-type thermocouples are frequently used in laboratory settings where precise temperature measurement is needed. They are used in various research applications, including chemical testing, material science, and biological studies, where accurate and stable temperature monitoring is critical.

3. Food Industry: In the food industry, T-type thermocouples are used for temperature control during food processing, storage, and transportation. They ensure that food products are kept within safe temperature ranges, preventing spoilage and ensuring food safety.

4. HVAC Systems: T-type thermocouples are also used in HVAC systems to monitor the temperature of air and fluid systems. They help ensure that temperature-sensitive equipment operates at optimal temperatures, improving system efficiency and safety.

5. Pharmaceutical Manufacturing: The pharmaceutical industry relies on precise temperature control to maintain the quality and safety of medications. T-type thermocouples are used in processes such as drug sterilization, cold chain monitoring, and quality assurance testing.

6. Environmental Monitoring: T-type thermocouples are used in environmental monitoring systems to measure temperature in various environments, from outdoor temperature monitoring to temperature measurement in laboratories and weather stations.

Choosing the Right Thermocouple for Your Application

While T-type thermocouples offer many benefits, it’s important to choose the right thermocouple for your specific application. Factors such as temperature range, accuracy requirements, and environmental conditions should all be considered when selecting a thermocouple.

At Focusens, we offer a wide range of thermocouples, including T-type thermocouples, that are designed to meet the needs of different industries. Whether you're looking for temperature sensors for industrial processes, laboratories, or medical devices, we can provide reliable and high-performance solutions.

Conclusion

T-type thermocouples are an excellent choice for temperature measurement in low-temperature applications. With their high accuracy, reliable performance, and cost-effectiveness, T-type thermocouples are ideal for industries like cryogenics, food safety, laboratories, and HVAC systems. At Focusens, we specialize in providing high-quality thermocouples that deliver precision and reliability.

If you're looking for T-type thermocouples or any other temperature sensing solutions, contact us today. Our team is dedicated to providing the best sensors for your needs, ensuring that you receive the most accurate and efficient temperature measurements for your applications.
